Surface-mounted spotlight, no recess required.

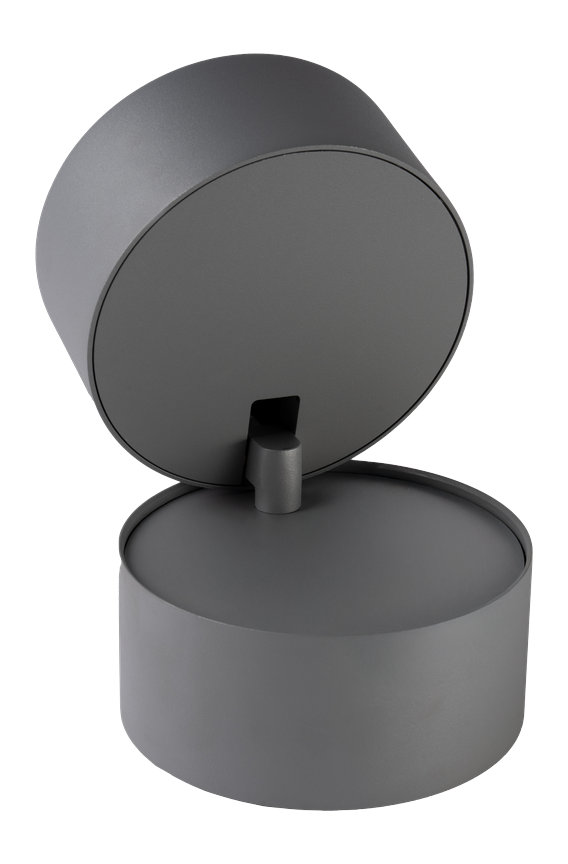

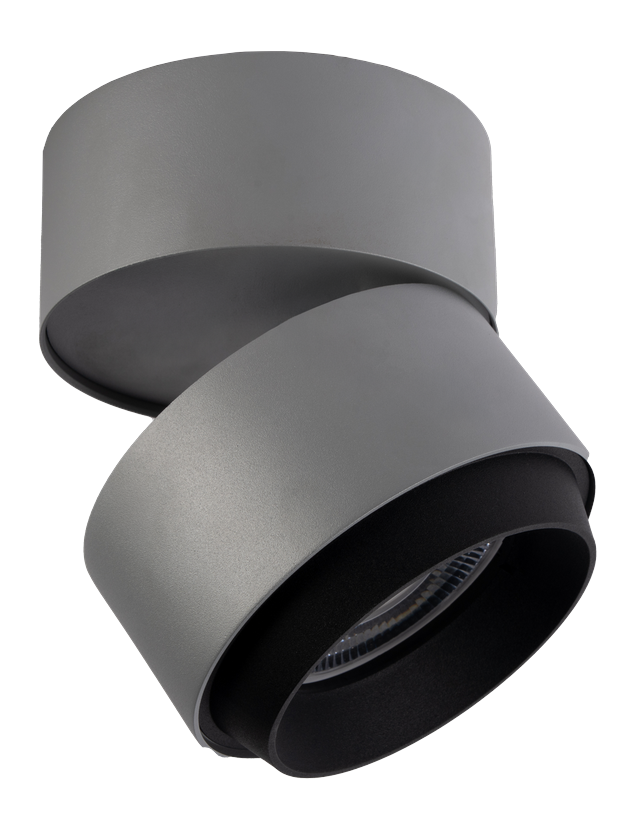

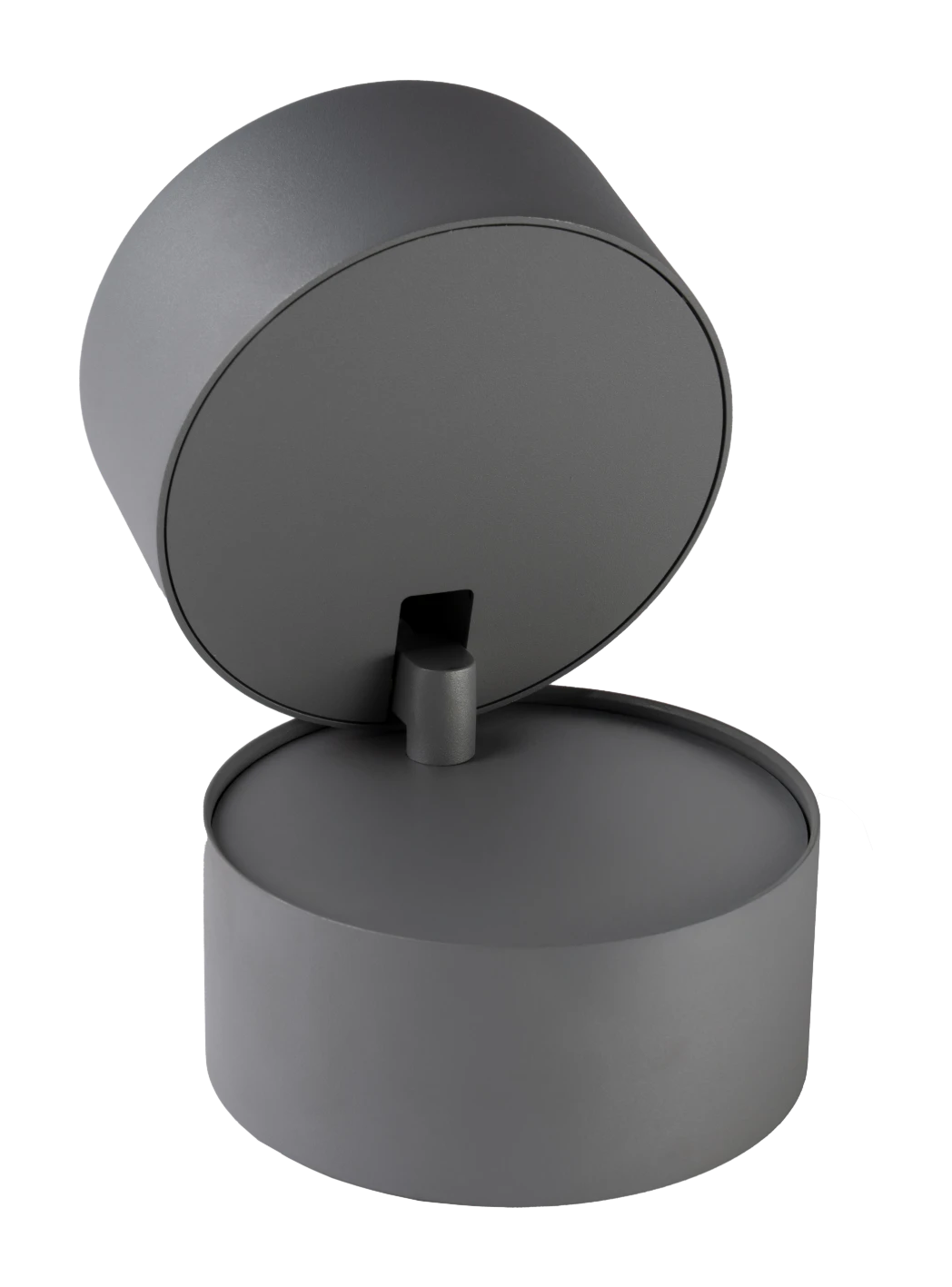

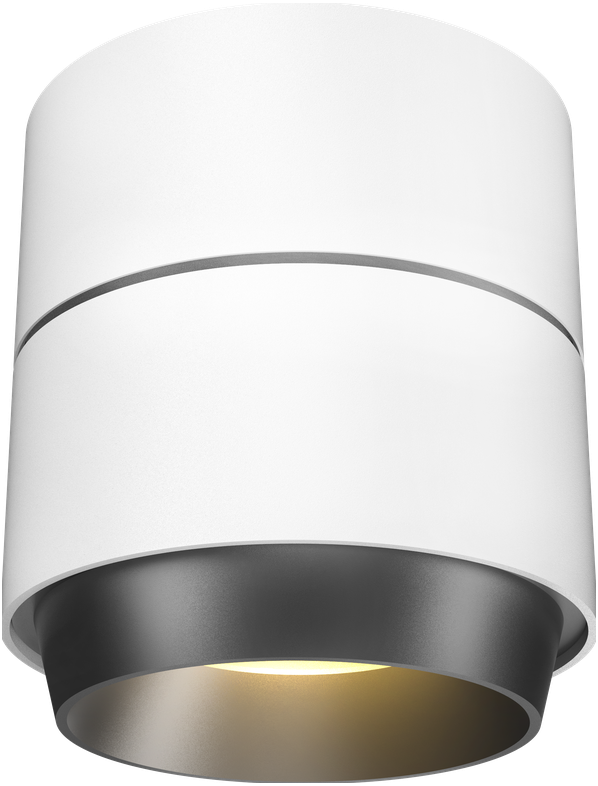

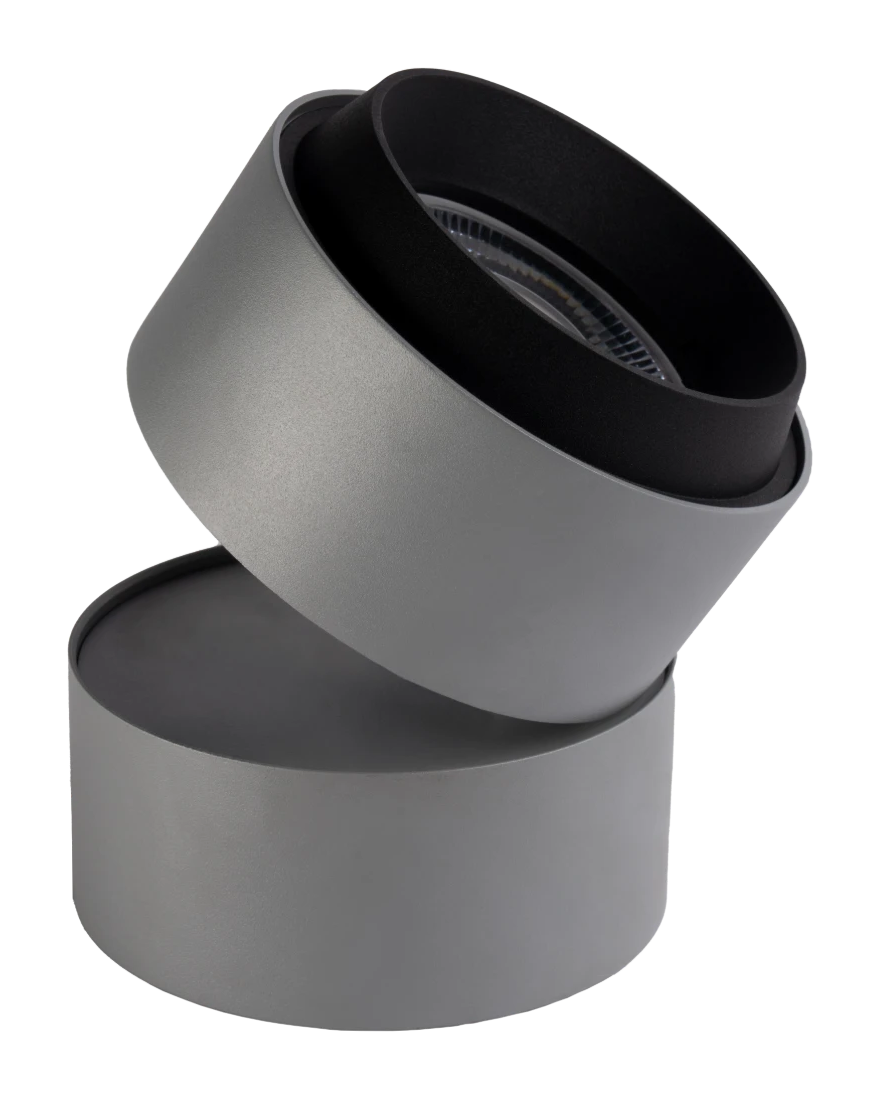

MAGIC-S is a surface-mounted LED downlight with a sleek cylindrical design that complements modern interiors. Constructed from high-quality die-cast aluminum for excellent heat dissipation and durability, it delivers uniform, glare-free illumination with premium color quality (CRI >90 standard, >95 optional).
Three optical configurations: CLA (Spot/Medium/Flood/Wide Flood from 17° to 55°), WASHO (asymmetric wall washer), and ADJ (adjustable). SDCM <3 ensures consistent color point across multiple fixtures.
| Input Voltage | 220-240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <10 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Dimming | Non-DIM · 0-10V · DALI-2 |
| Emergency Backup | Optional |
| SDCM | <3 |
| Working Temperature | -20°C to +45°C |
| Ingress Protection | IP20 |
| Impact Resistance | IK07 |
| Switching Cycles | >50,000 times |
| Dimensions | Ø118 × H53 mm · Ø118 × H68 mm |
| Dimensions | Ø118 × H53 mm · Ø118 × H68 mm |
| Dimensions | Ø118 × H53 mm · Ø118 × H68 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Surface |

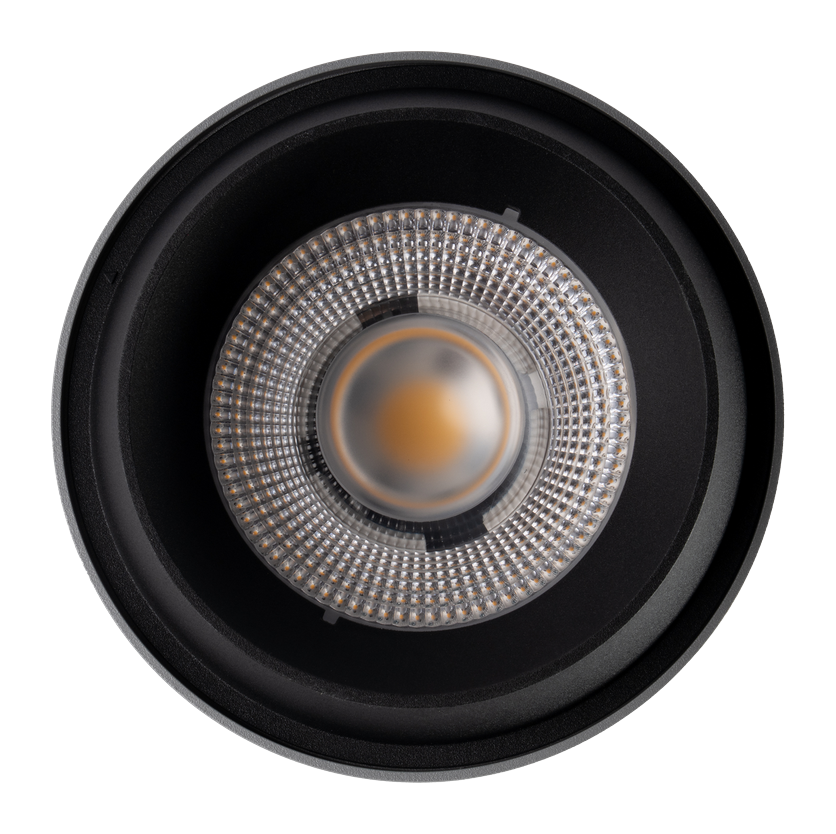

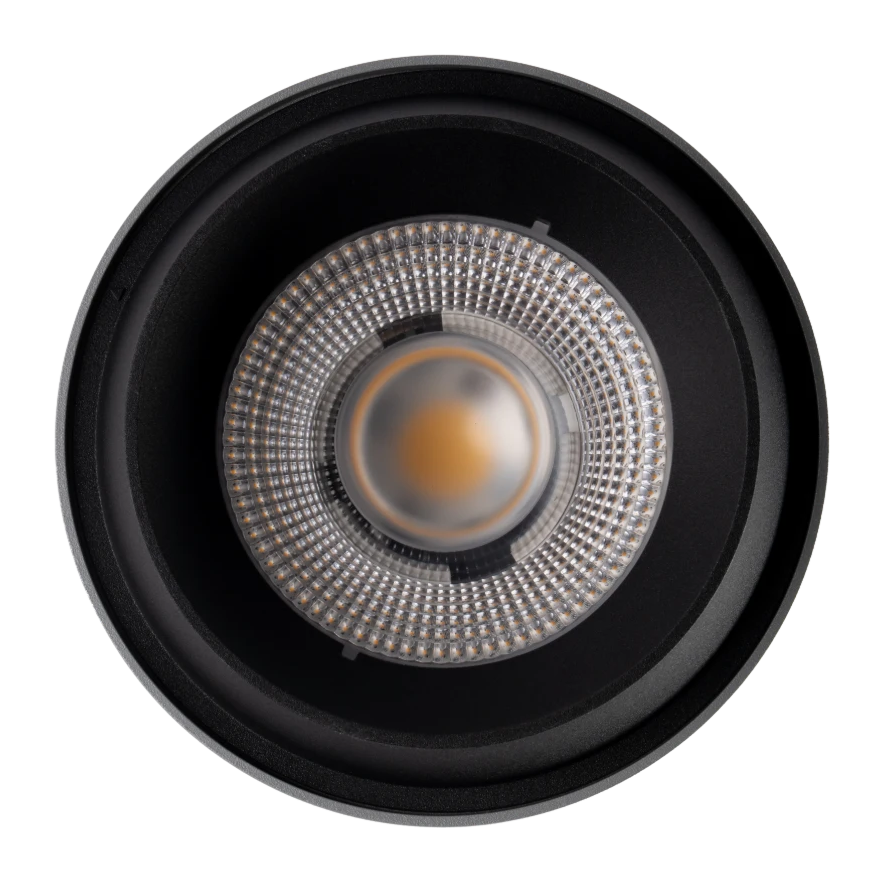

| Reflector | Aluminum |
| Body Finish | Electrostatically Applied Polyester Powder Coating |
| Body Colors | Black · Gray · White |
| LED Type | COB |
| Lifetime | L70B50 > 50,000h |
| Switching Cycles | >50,000 times |
| CRI | Standard >90 · Optional >95 |
| Flicker Free | Yes |
| Warranty | 5 Years |
| Model | Power | Lumen | Beam Angle | CRI | Notes |
|---|---|---|---|---|---|
| NLC-MS | 14W | 1,722 lm | 17° / 24° / 32° / 55° | ≥90 | 123 lm/W |
| NLC-MS | 22W | 2,706 lm | 17° / 24° / 32° / 55° | ≥90 | 123 lm/W |
* Values based on CCT 4000K | ±10% tolerance
