Where Creativity Meets Light
The MARCO Lighting System is a professional modular platform built around optical modules installed inside an aluminium profile. Available in white or black, the profile can be configured to any length or shape using a wide range of connectors, for surface mounting, recessed (frameless or framed), or suspension installation.
What sets MARCO apart is the ability to swap optical modules without rewiring, simplifying design, installation, and long-term maintenance. The system supports 1–10V and DALI dimming and integrates with motion sensors, light sensors, fire detectors, CCTV, speakers, and Wi-Fi modules.

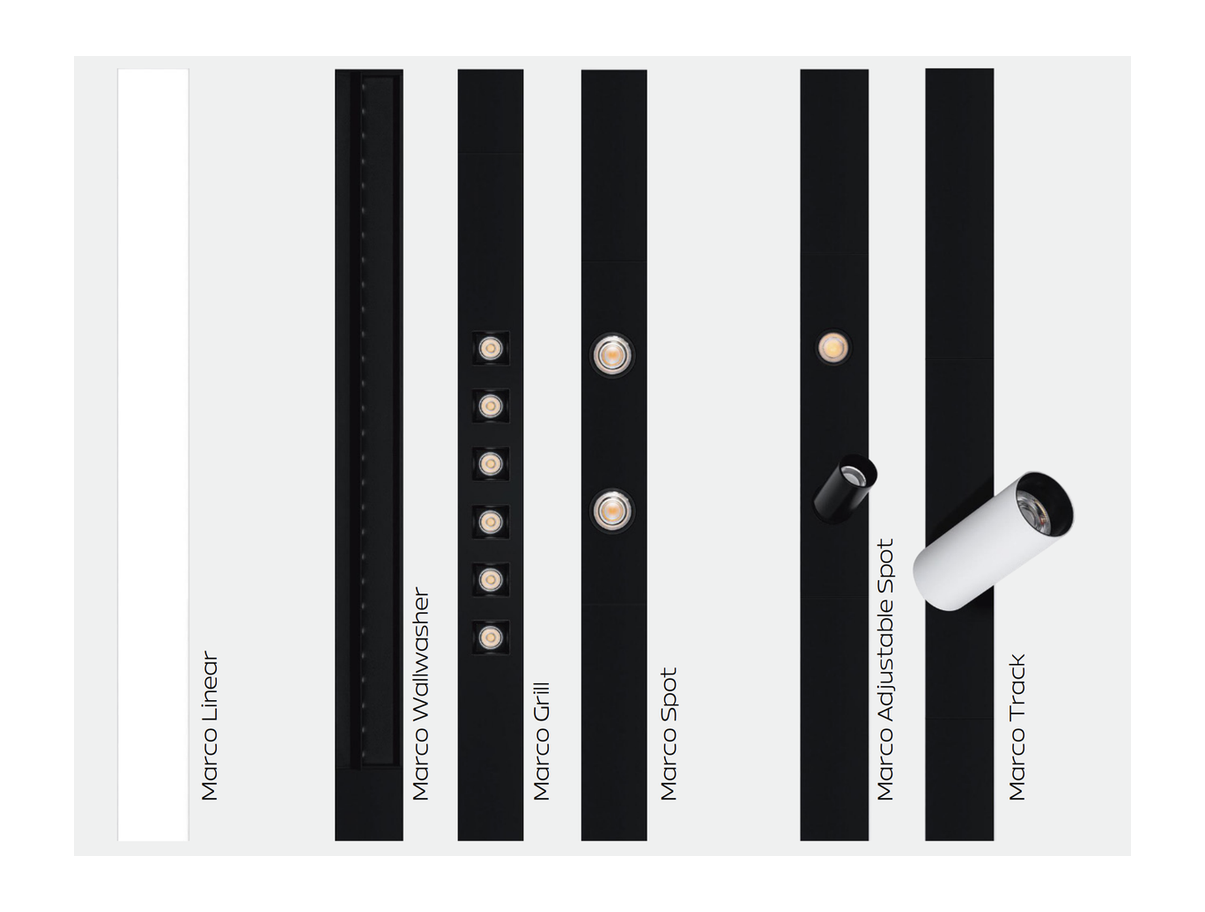

Linear module, 120° beam, 16–64W, 1,720–6,860 lm
Grill optic, 10°–120° beam, 6–108W, 580–11,420 lm
Spot module, 24°–45° beam, 14W per module
Track module, 12°–38° beam, 12.7W per module
60° wallwash, 15W, 1,155 lm, 566×57.2×64mm
Retractable & swivel, 12°–55°, 6.3W per module
3-hour emergency backup, 1W, 283×55×68mm
Constant light sensor, 141.5×55×70mm
| Frameless Embedded | Flush-mounted, no visible frame, clean ceiling finish |
| Framed Embedded | Recessed with decorative frame surround |
| External / Surface | Surface-mounted to ceiling or wall |
| Suspended | Wire suspension up to 4,000mm (adjustable) |
| Input Voltage | 220–240V · 50/60Hz |
| CRI | ≥90 |
| CCT Options | 3000K · 4000K |
| IP Rating | IP40 |
| Profile Length | 2,500mm standard sections |
| Dimming | 1–10V · DALI (optional) |
| Connectors | 90° angle, T-type, L-type, channel connectors |
| Sensor Support | PIR · Light · Fire sensor integration |
| AV Integration | CCTV · Speaker · Wi-Fi module channels |
| Service Life | LM80 > 50,000h |

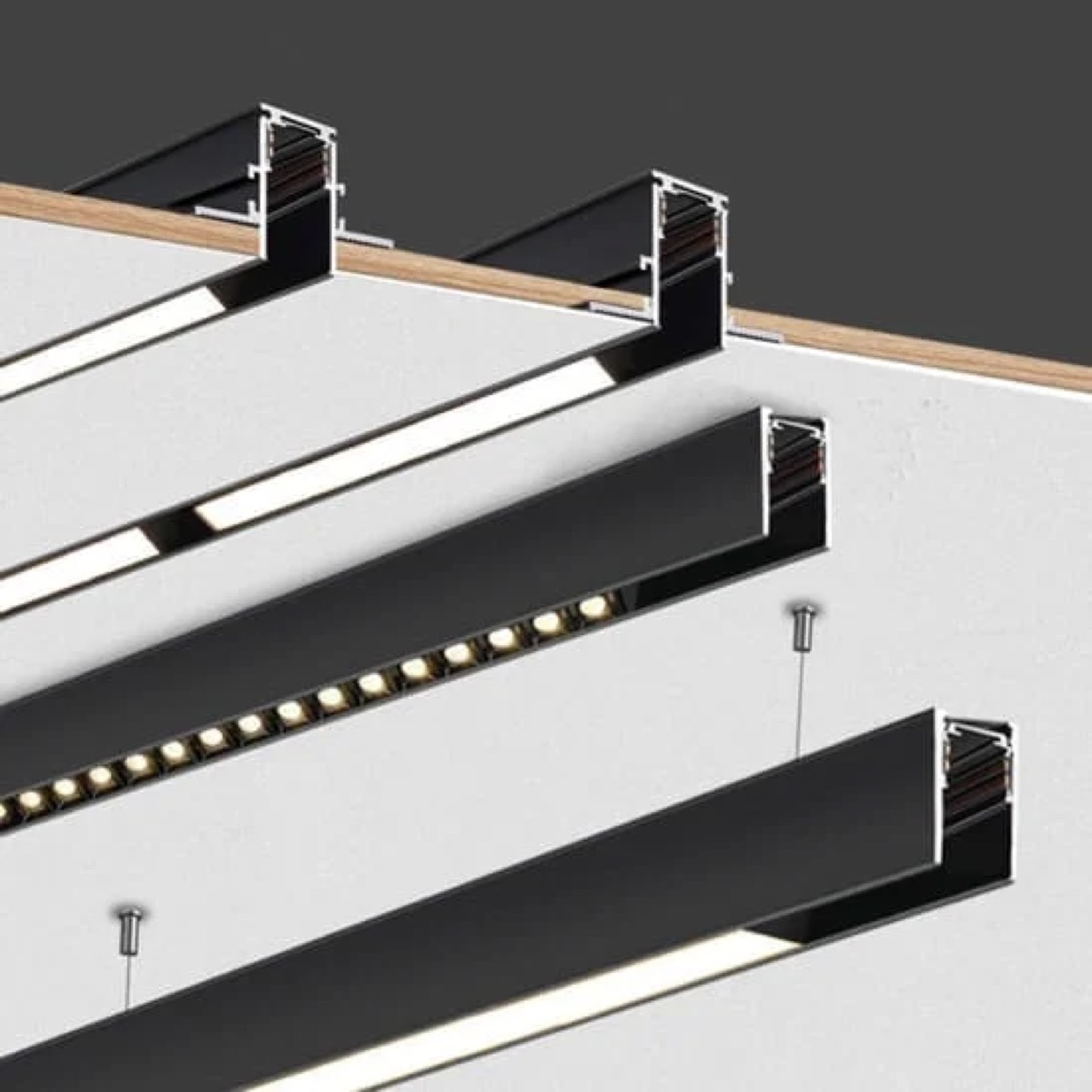

A complete range of profiles, connectors, end caps, and decorative covers lets the MARCO system be built for frameless-embedded, framed-embedded, external, or suspended installation, to any length or shape.
Embedded channel
Side plates
Embedded channel
Side plates
External channel
90° angle connector
90° angle light connector
Side plates
Suspended Marco system
Ceiling cable base
Decorative cover
Decorative cover
Decorative cover
