Sleek, Recessed Light with Precision Control

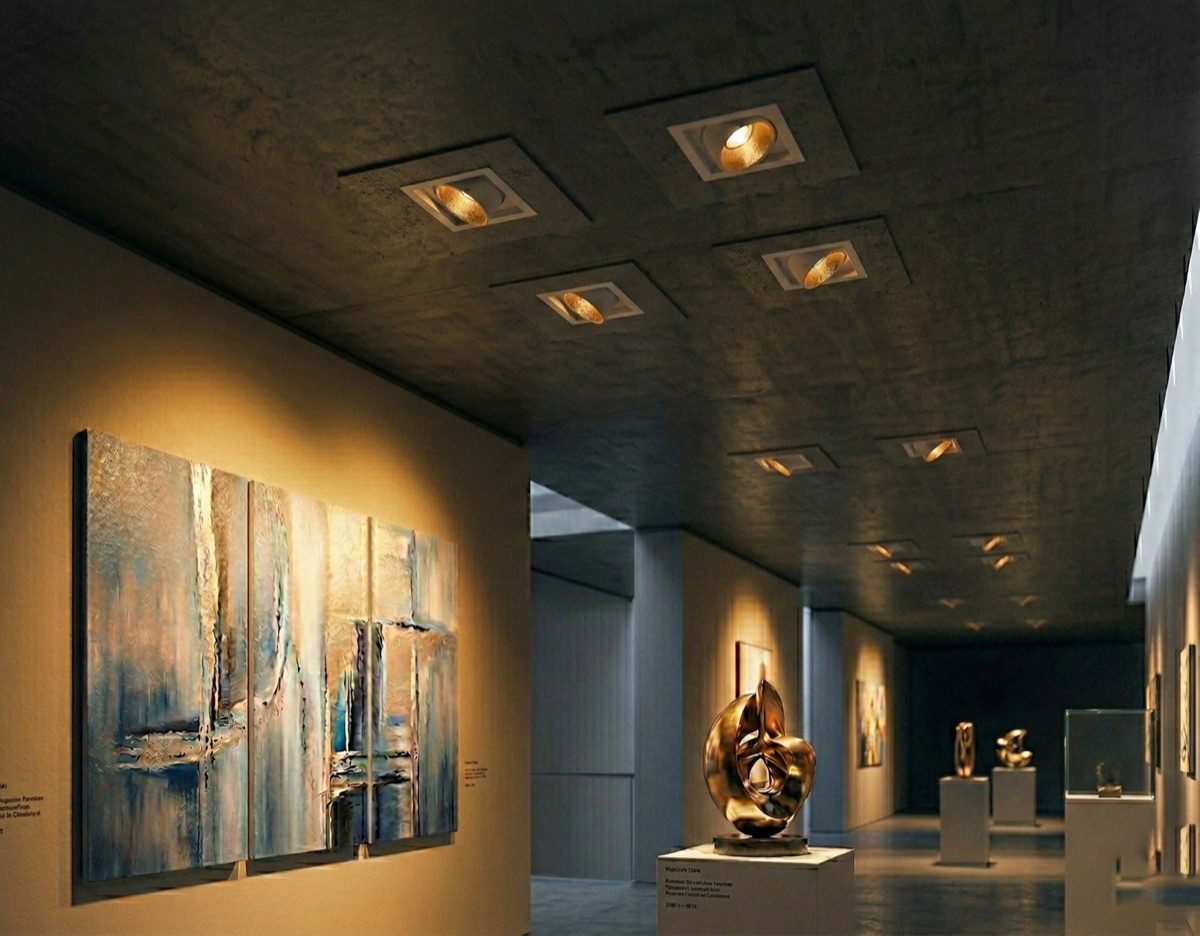

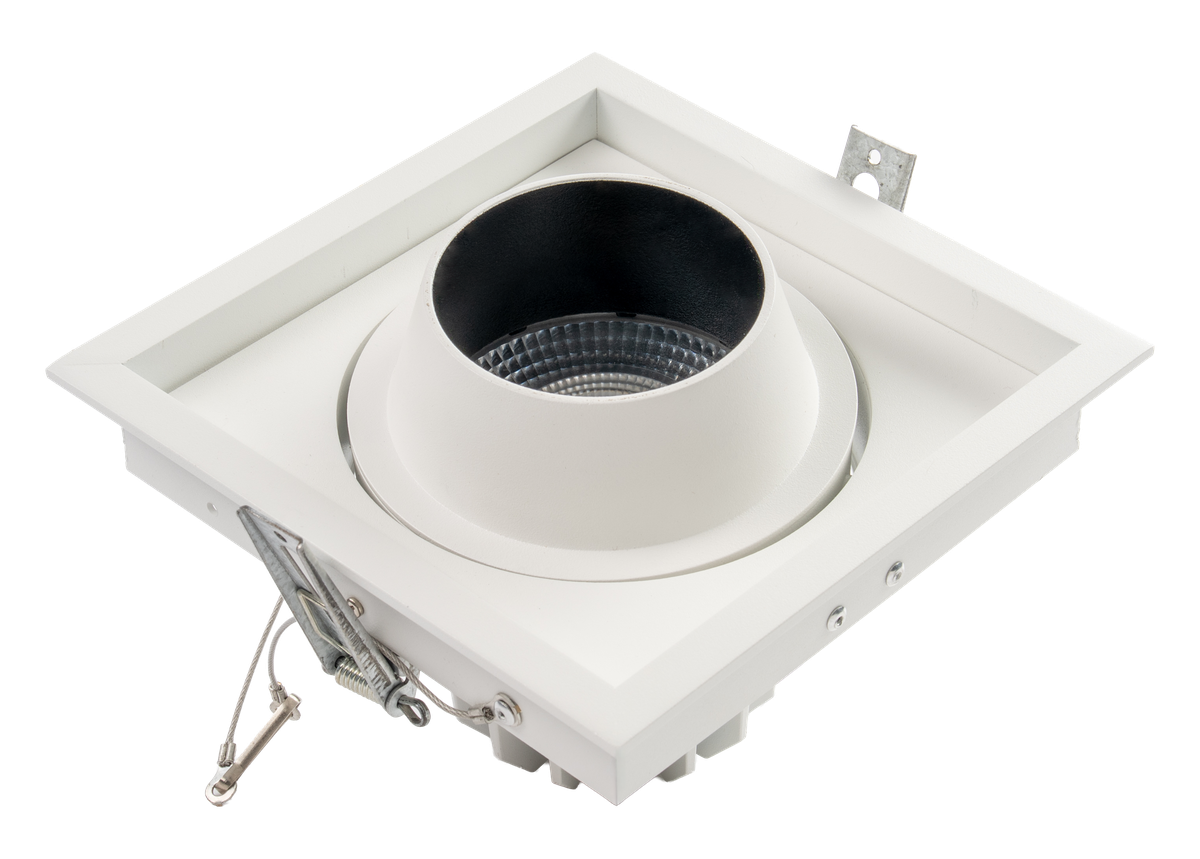

The ORBIT is a sleek recessed spotlight with an adjustable tilting head for precision control. With CRI >90 and up to 108 lm/W, it delivers accurate, low-glare illumination ideal for galleries, hospitality, retail, and residential environments.
The ORBIT is part of National Lighting Company's Recessed Spotlight range. Spotlights provide focused, directional accent lighting for retail, galleries, and architectural features. Like the rest of the NLC portfolio, it is engineered and assembled in Saudi Arabia for the demands of the local environment, high ambient temperatures, dust, and a need for long, low-maintenance service life.
National Lighting Company (NLC) has manufactured lighting in the Kingdom since 1993 and is an authorized assembler for Schneider Electric. The NLC range spans street and area lighting, flood and architectural lighting, solar luminaires, and low- and medium-voltage panels, all backed by local production in Dammam, technical support, and after-sales service across Saudi Arabia.
Detailed specifications for the ORBIT, including wattage, lumen output, color temperature (CCT), beam angle, and ingress protection (IP) rating, are configured to each project and available on request. Contact our team for the current datasheet, pricing, and availability.
| Input Voltage | 220–240VAC | 50/60Hz |
| Power Factor | >0.95 |
| THD | <15% |
| Surge Protection | 1KV (L-N), 2KV (L/N-PE) |
| Electrical Class | Class II |
| Working Temperature | 45°C max |
| Operating Humidity | - |
| Dimensions | 177W × 177W × 142H mm (Cut size: 165×165 mm) |
| Housing | Aluminum / PC |
| Mounting | Recessed Spotlight (Adjustable) |
| Optics | Polycarbonate |
| Body Finish | Electrostatic Polyester Powder-Coated |
| LED Type | COB |
| Lifetime | L70B50 >100,000h | L80B20 >50,000h |
| Dimming | Optional |
| Switching Cycles | >50,000 |
| Emergency Backup | Optional |
| Flicker-Free | Yes |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-OR | 14W | 108 lm/W | 1,512 lm | 17°/23° | >90 std · >95 opt |
| NLC-OR | 22W | 108 lm/W | 2,376 lm | 23°/32° | >90 std · >95 opt |
| NLC-OR | 28W | 108 lm/W | 3,024 lm | 32°/54° | >90 std · >95 opt |
* Values based on CCT 4000K | ±10% tolerance
