Light Where You Need It

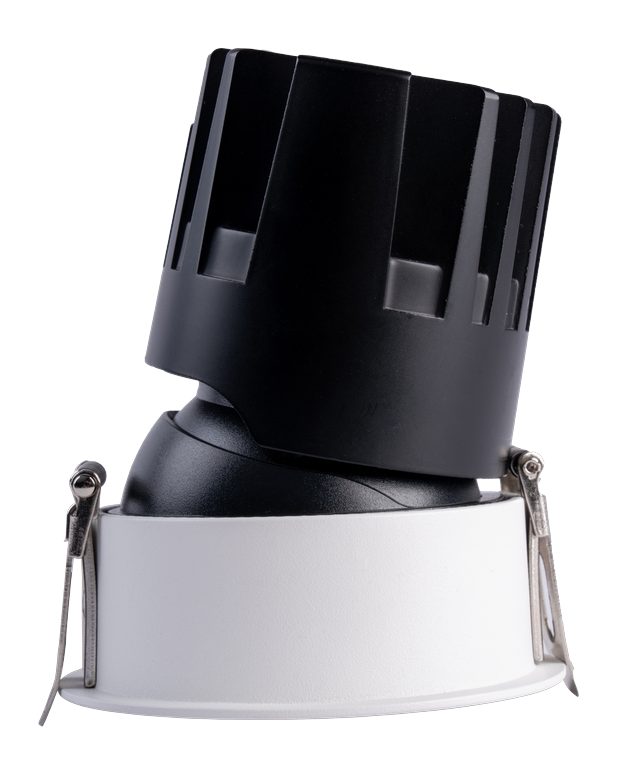

The AGILE COB downlight combines IP65 protection with premium CRI>90 performance in a compact recessed form. With four beam angle options and changeable reflector colours, it delivers focused, glare-controlled illumination for retail, hospitality, and commercial interiors.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 20–85% RH |
| Dimensions | 8W: D60×H80 · 14W: D82×H97.8 · 25W: D110×H125 mm |
| Housing | Aluminium |
| Mounting | Recessed |
| Optics | PC / PMMA |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Colors | Black / White |
| LED Type | COB |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Dimming | Optional |
| Switching Cycles | >50,000 times |
| Emergency Backup | Optional |
| Flicker Free | - |
| Colors | Black · Chrome Shine Black · White |
| Cut-out | 8W: 55mm · 14W: 75mm · 25W: 95mm |
| UGR | <16 |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-AG | 8W | 90 lm/W | 720 lm | 15°/24°/36°/55° | >90 std · >95 opt |
| NLC-AG | 14W | 93 lm/W | 1,302 lm | 15°/24°/36°/55° | >90 std · >95 opt |
| NLC-AG | 25W | 97 lm/W | 2,425 lm | 15°/24°/36°/55° | >90 std · >95 opt |
* Values based on CCT 4000K | ±10% tolerance
