Engineering Light, Inspiring Spaces

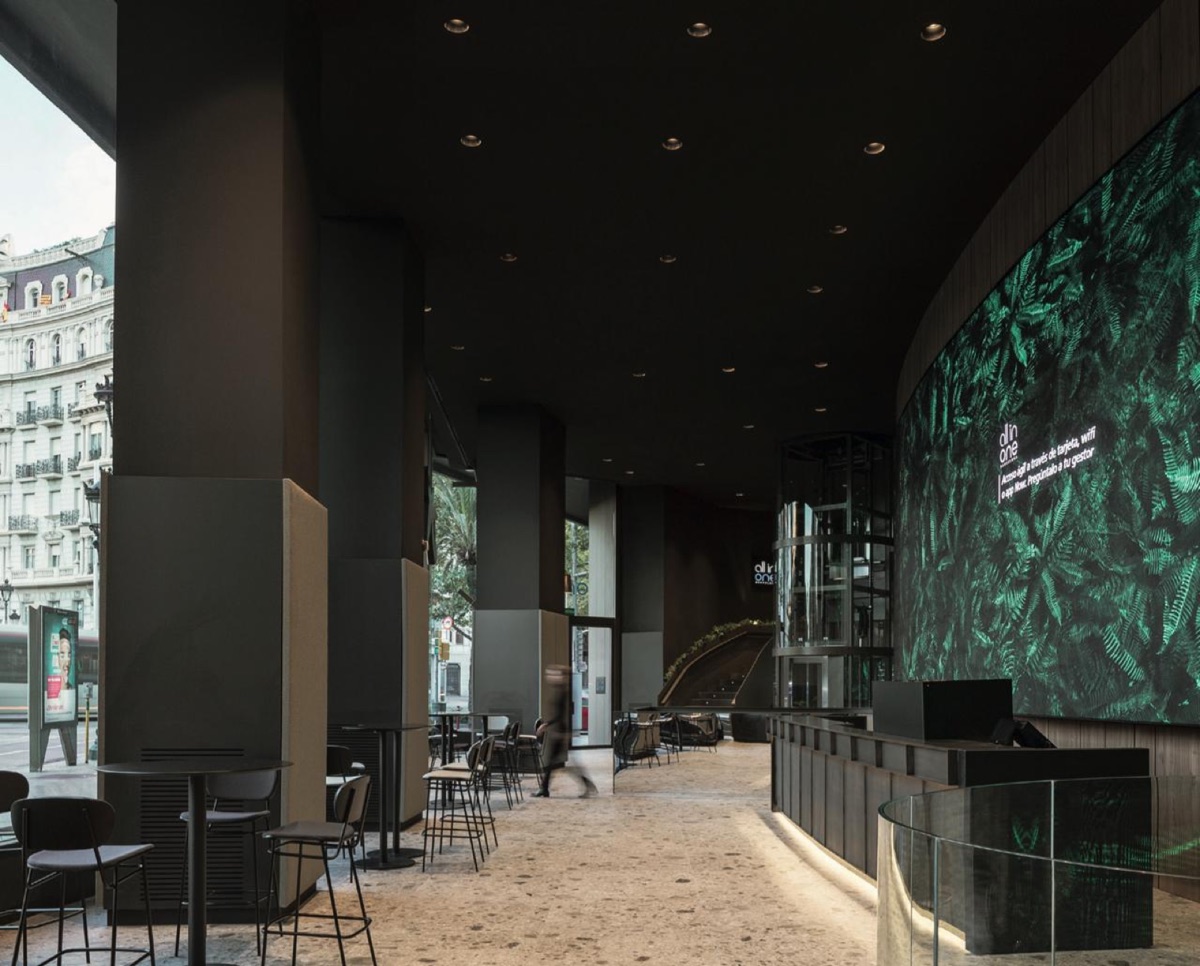

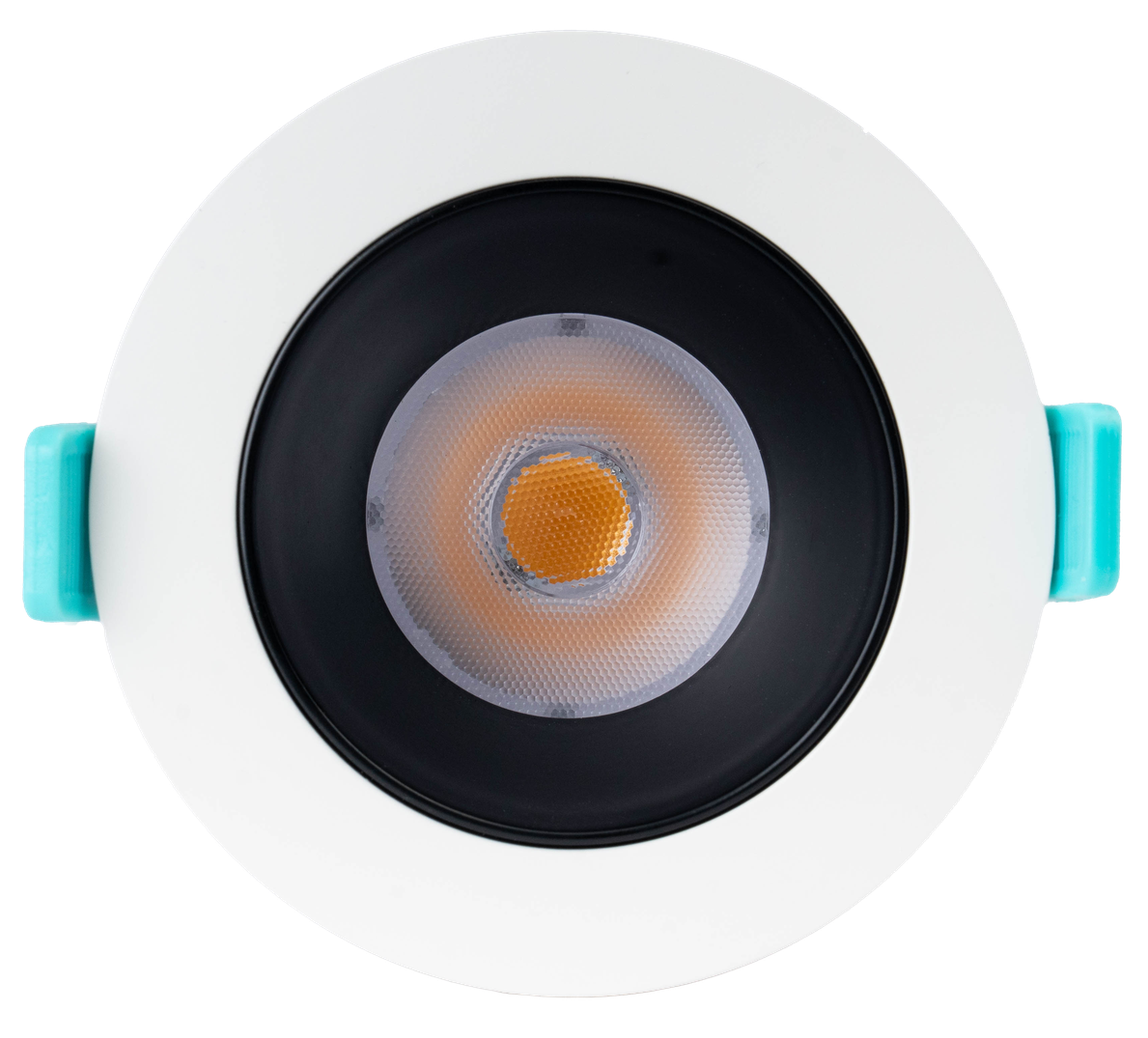

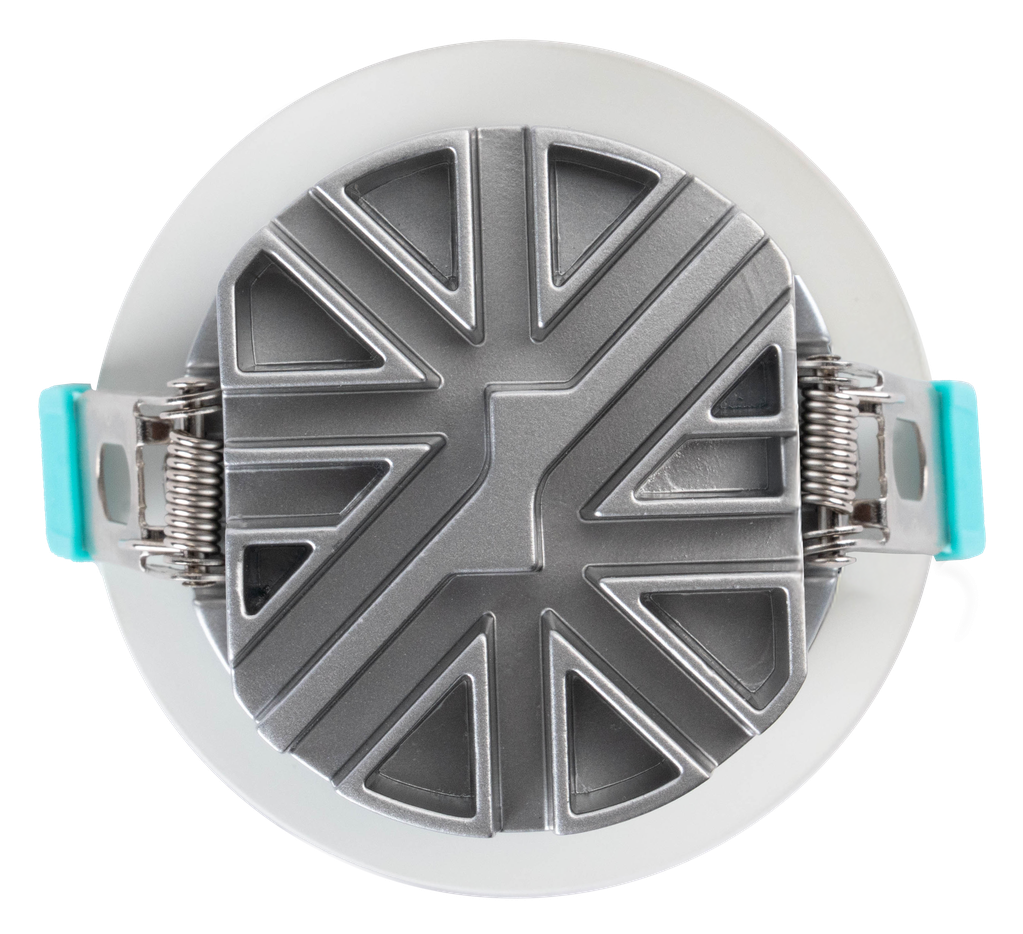

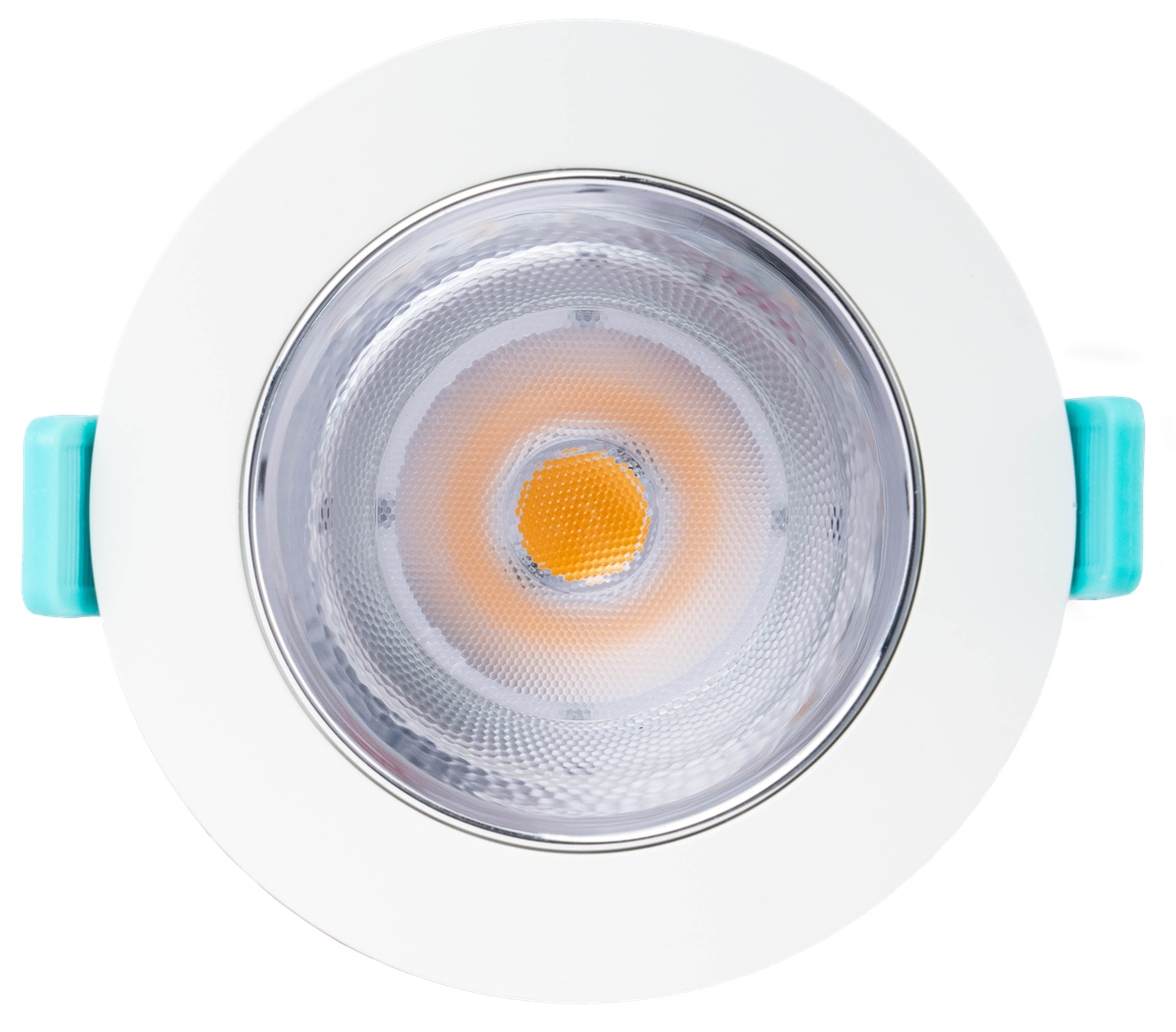

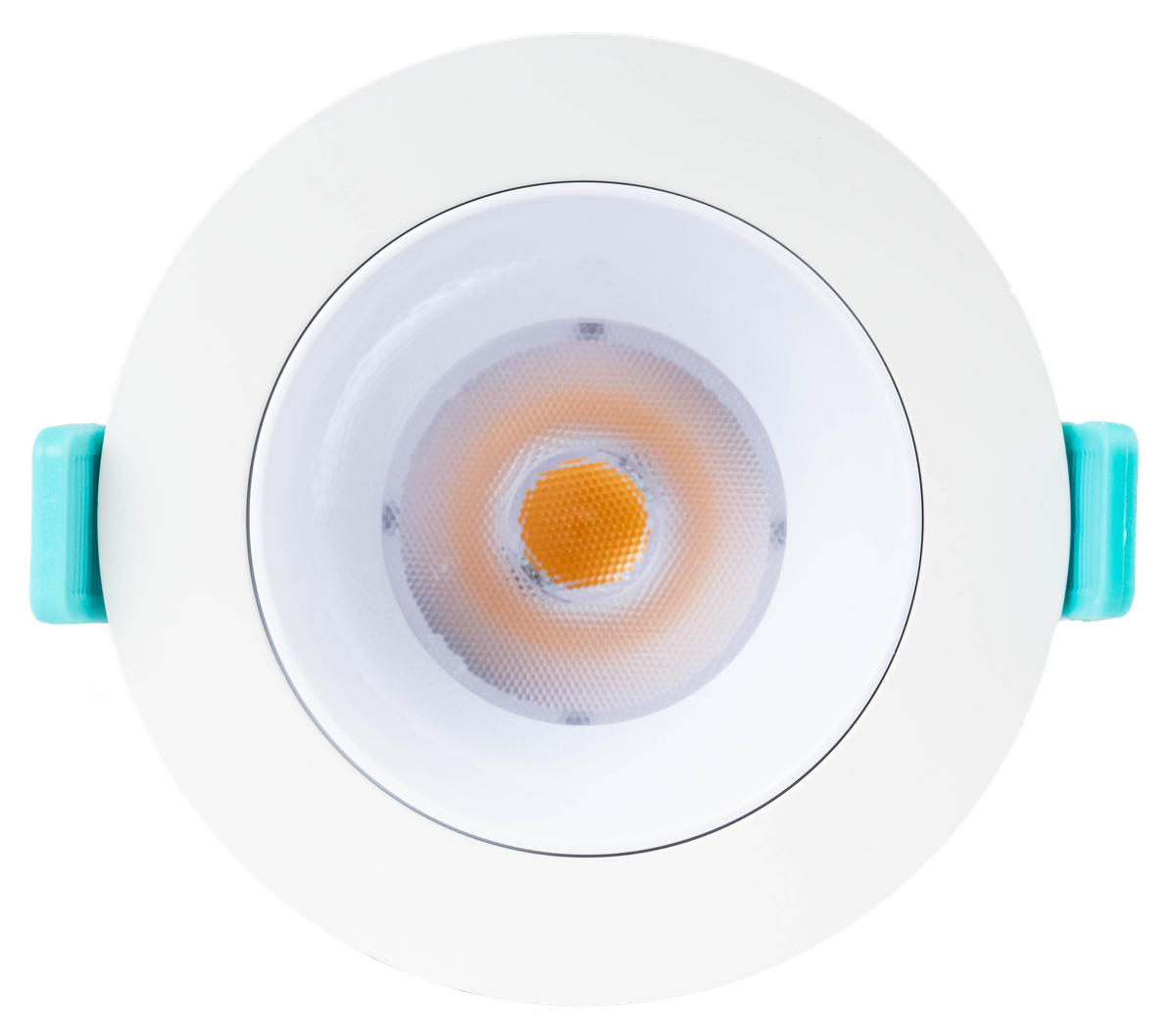

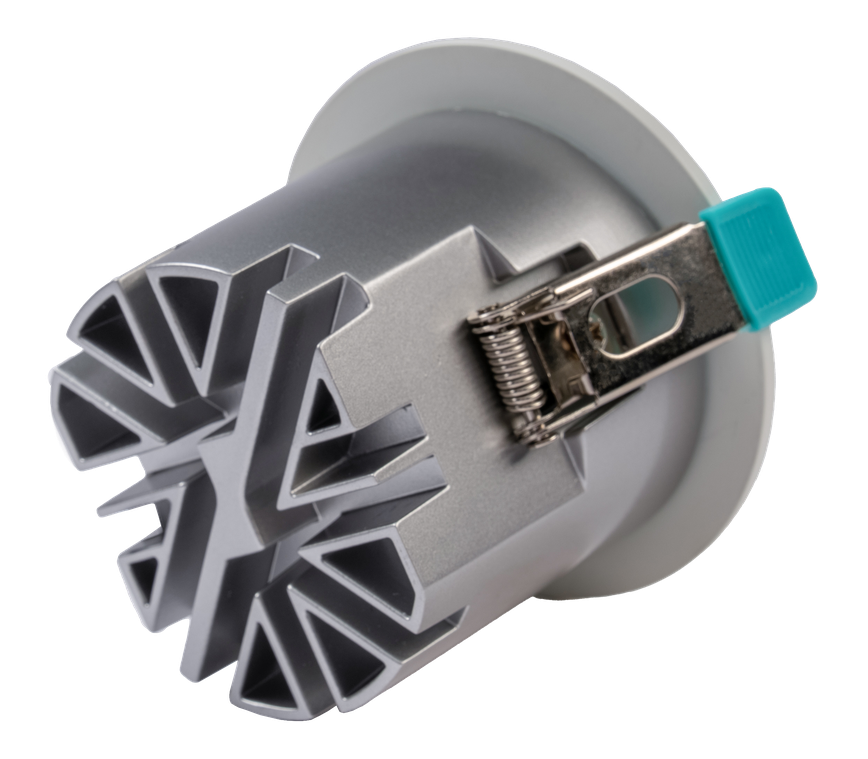

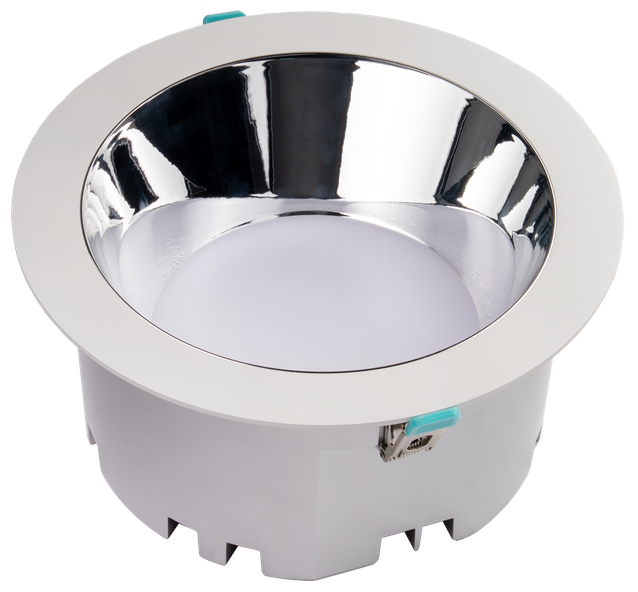

The LUXO COB recessed downlight offers premium optical performance with five beam angle options and four interchangeable reflector colour choices. Its superior heat dissipation design ensures consistent output and long service life across retail, hospitality, and architectural applications.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Working Temperature | 45°C |
| Operating Humidity | - |
| Dimensions | 12W: D90×H70 · 20W: D120×H81 · 30W: D170×H98 · 40W: D230×H111 mm |
| Housing | Aluminium / PC |

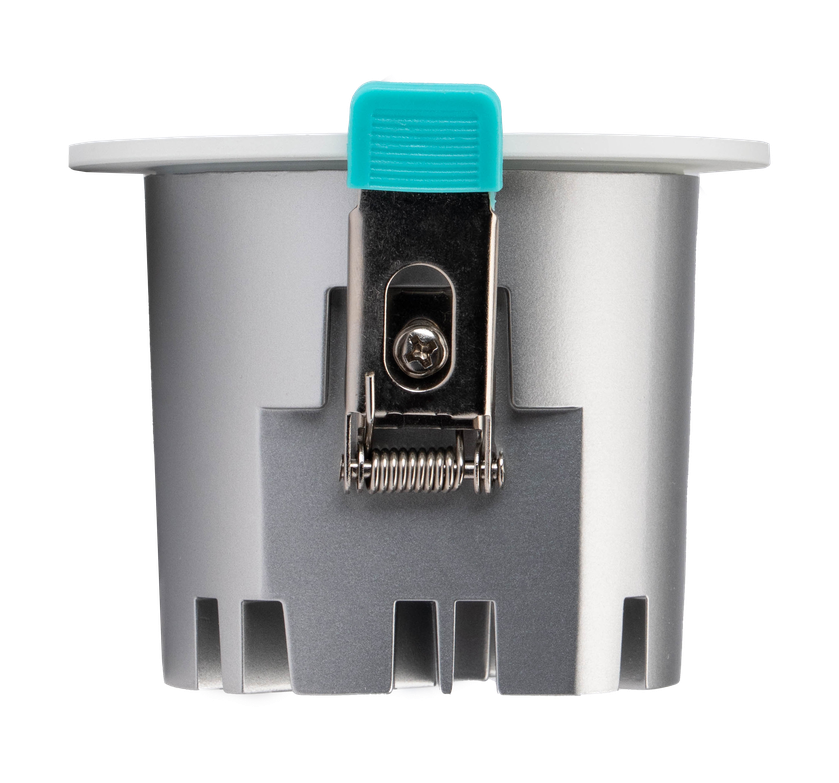

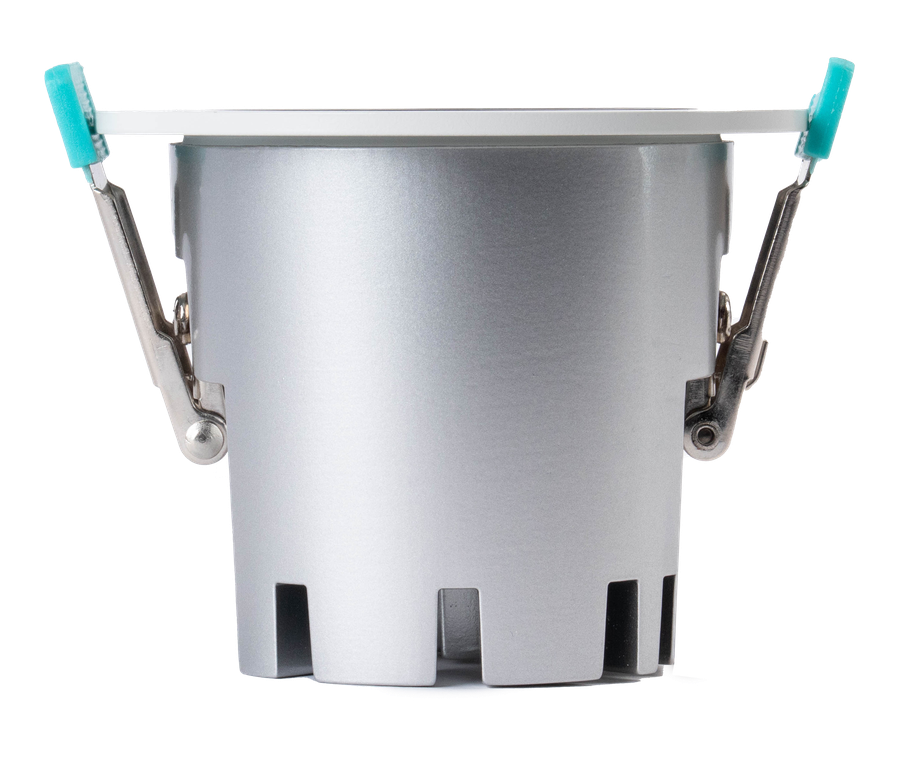

| Mounting | Recessed Mounted |
| Optics | PMMA / PC |
| Body Finish | Special Paint |
| Body Colors | Silver (standard) |
| LED Type | COB (12–30W) / COB+SMD (40W) |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Dimming | Optional |
| Switching Cycles | >50,000 times |
| Emergency Backup | Optional |
| Flicker Free | - |

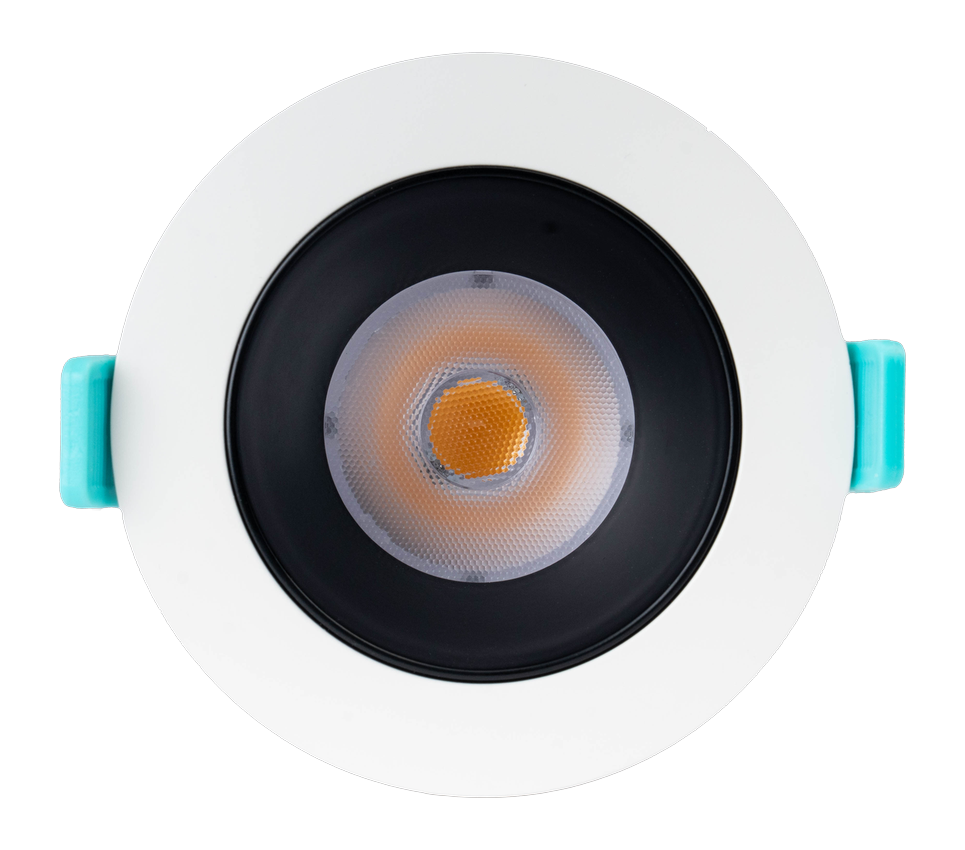

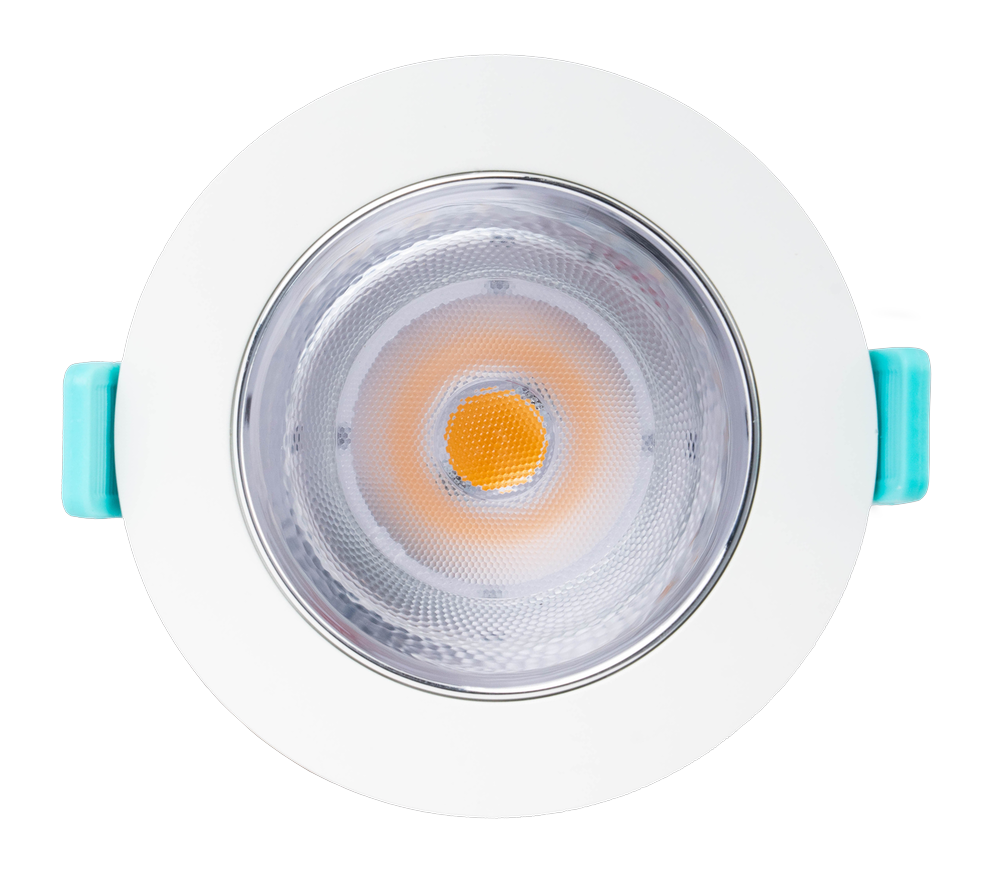

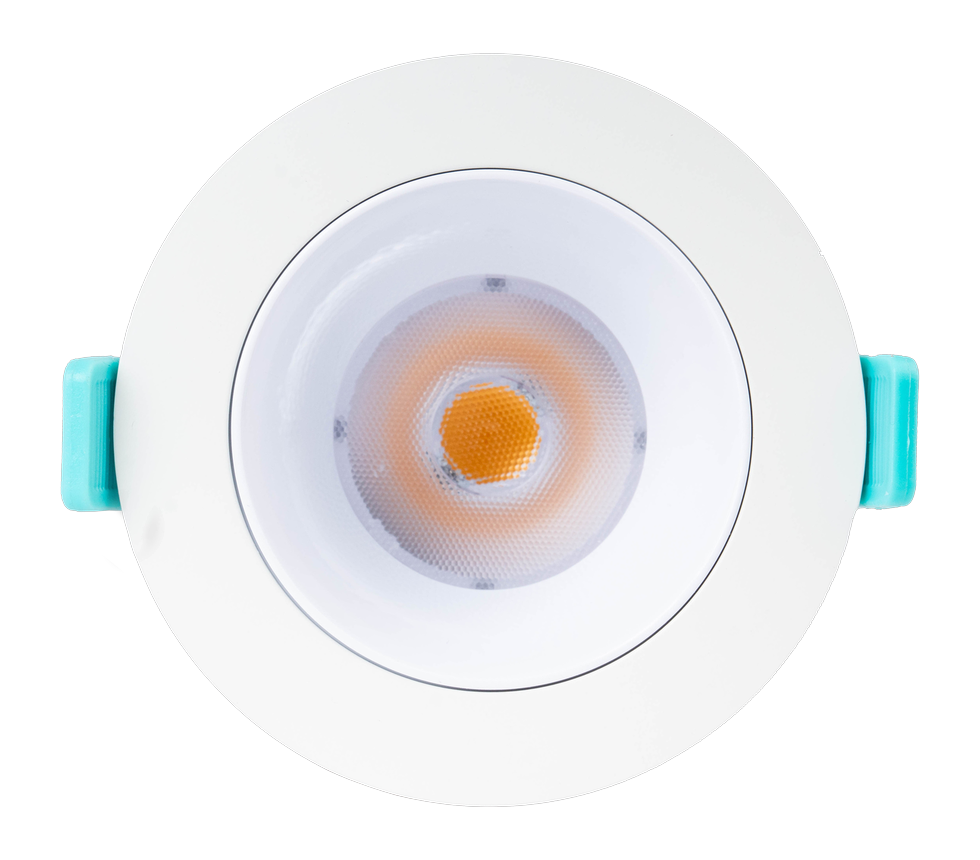

| Colors | White · Black · Silver · Chrome |
| Cut-out | 12W: 75mm · 20W: 95mm · 30W: 145mm · 40W: 195mm |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-LX | 12W | 123 lm/W | 1,476 lm | 15°/24°/36°/60° | >90 std · >95 opt |
| NLC-LX | 20W | 123 lm/W | 2,460 lm | 15°/24°/36°/60° | >90 std · >95 opt |
| NLC-LX | 30W | 134 lm/W | 4,020 lm | 15°/24°/36°/60° | >90 std · >95 opt |

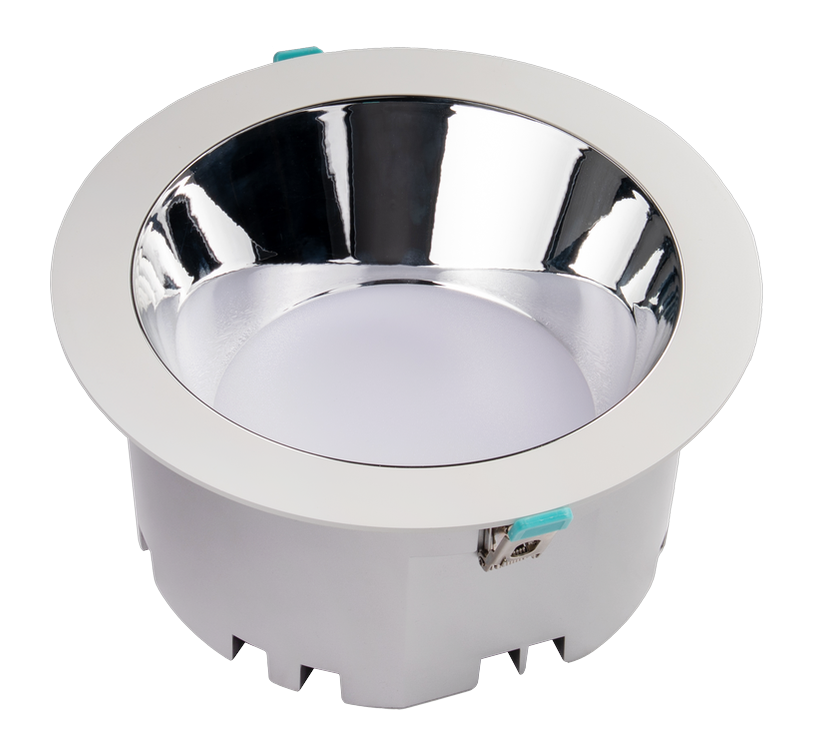

| NLC-LX | 40W | 123 lm/W | 4,920 lm | 80° | >90 std · >95 opt |
* Values based on CCT 4000K | ±10% tolerance
