Light Where it Matters

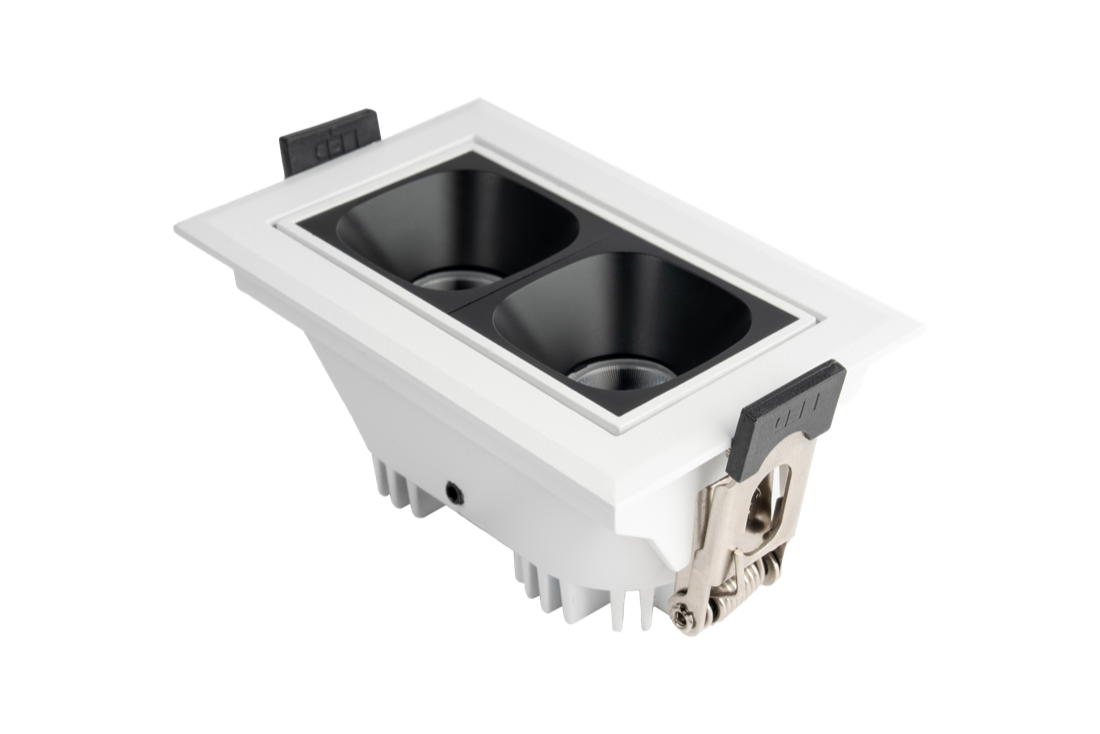

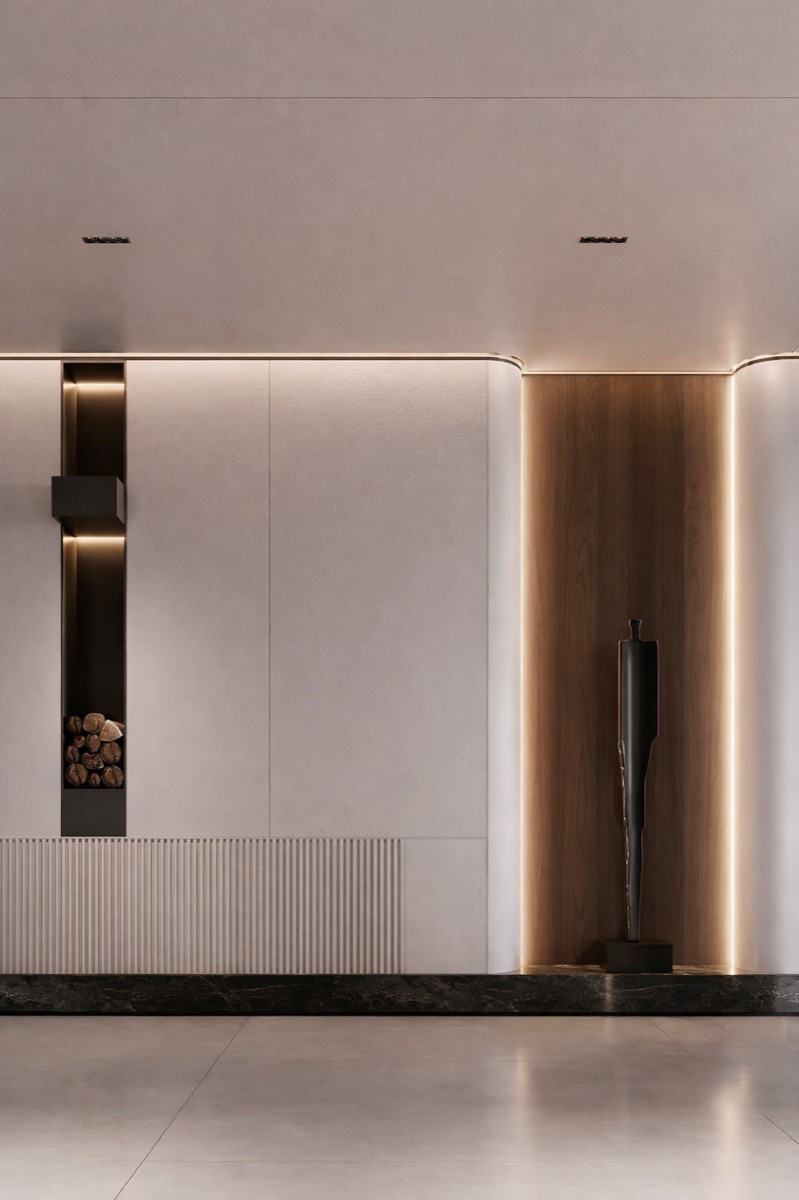

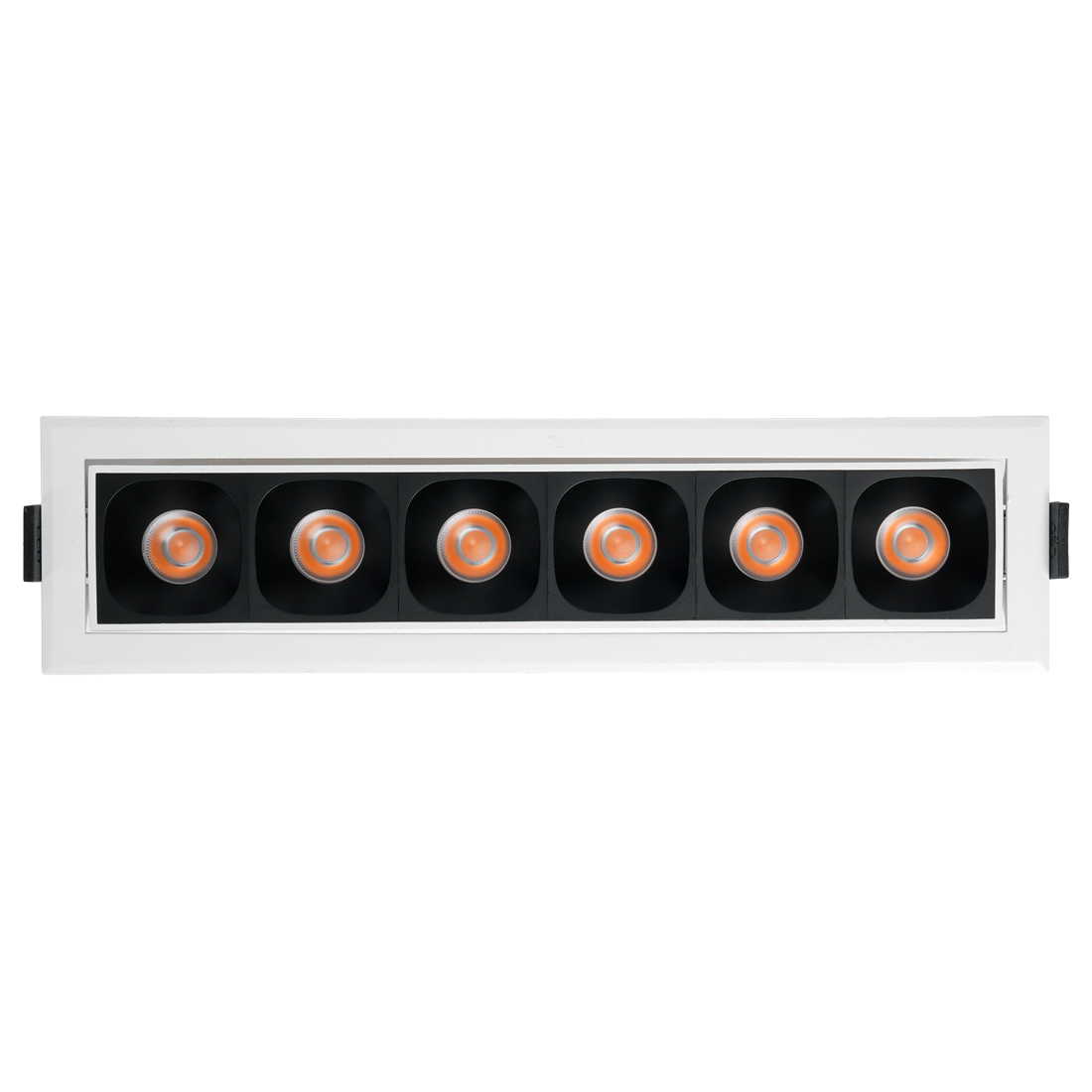

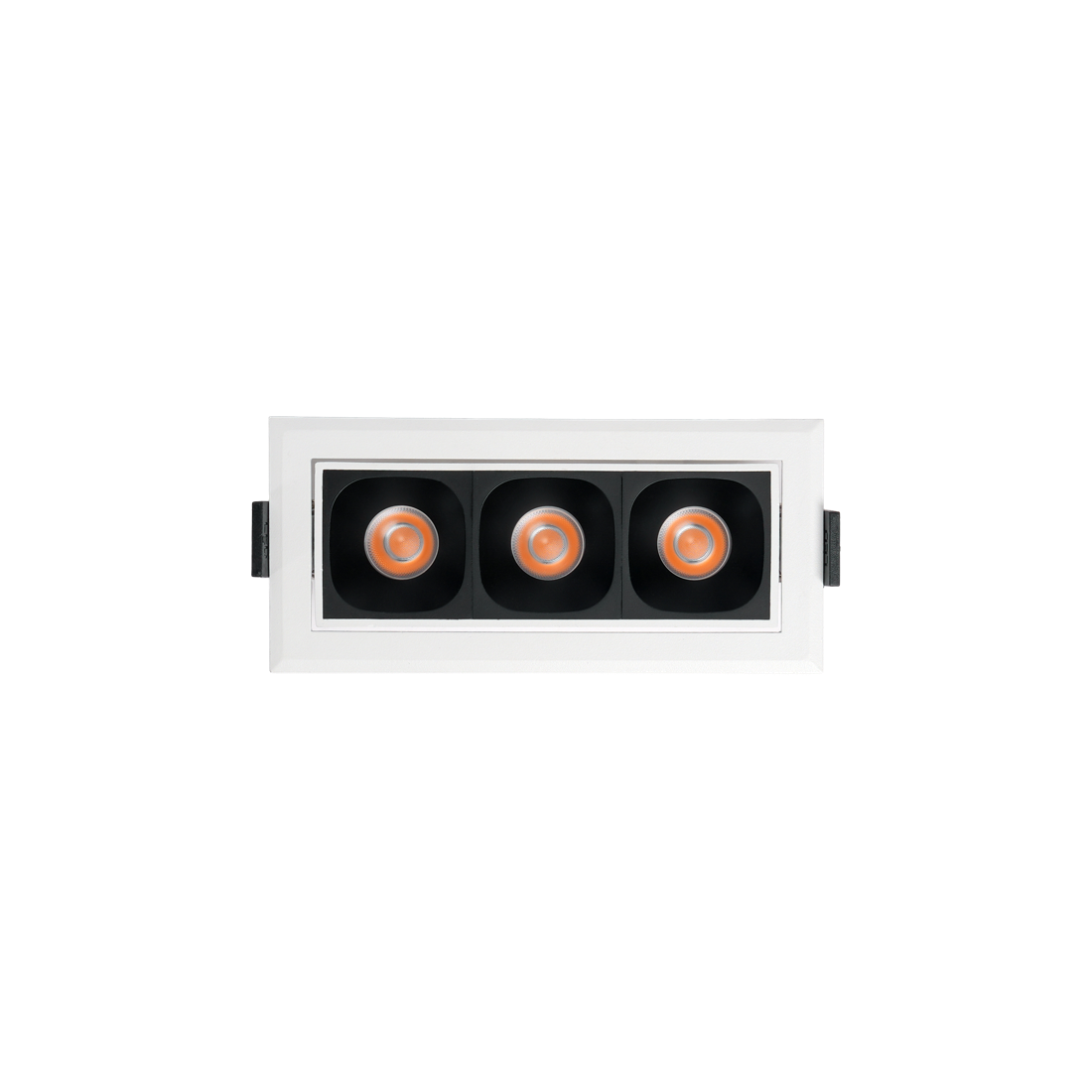

The MINI recessed spotlight features a tiltable head with interchangeable colour reflectors for precise accent lighting. Its compact form factor, low glare (UGR<13), and three beam angle options make it ideal for galleries, retail displays, and hospitality spaces.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 20–85% RH |
| Ingress Protection | IP20 |
| Dimensions | 5W: L60×W60×H45 · 10W: L95×W60×H45 · 15W: L130×W60×H45 · 20W: L114×W95×H45 · 30W: L235×W60×H45 (all mm) |
| Housing | Aluminium / PC |
| Mounting | Recessed Mounted |
| Optics | Polycarbonate |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Colors | Black · Gray · White |
| LED Type | SMD |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Dimming | Optional |
| Switching Cycles | >50,000 times |
| Emergency Backup | Optional |
| Flicker Free | 45°C |

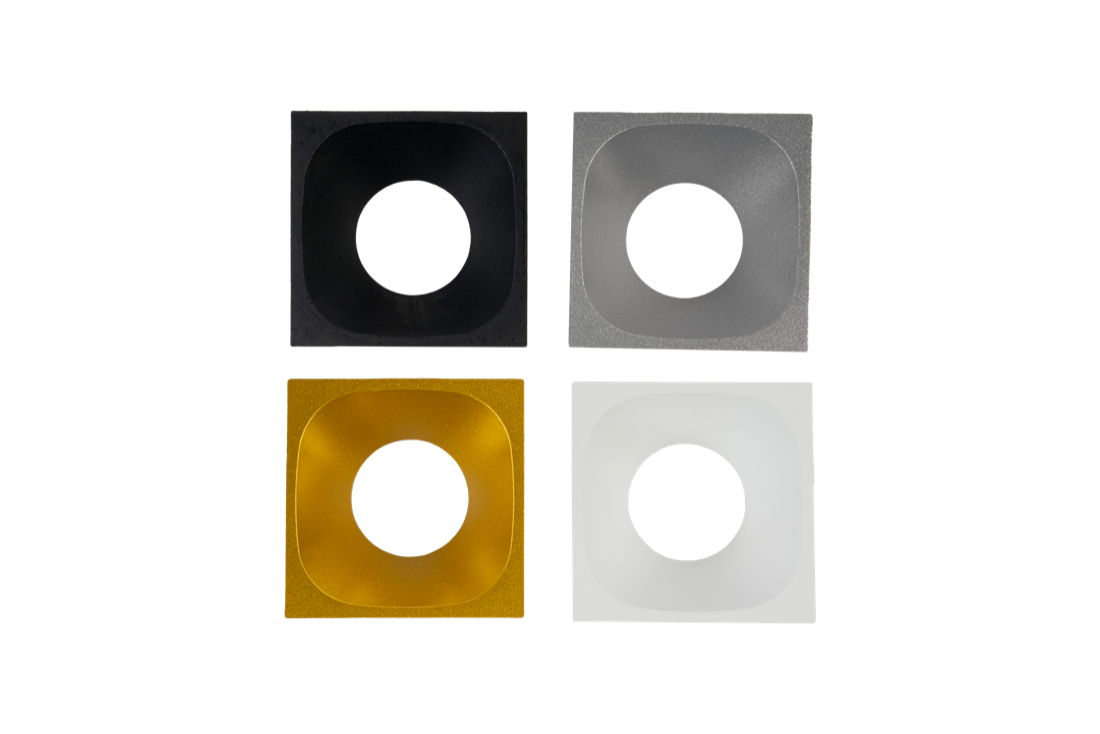

| Colors | Black · Silver · Gold · White |

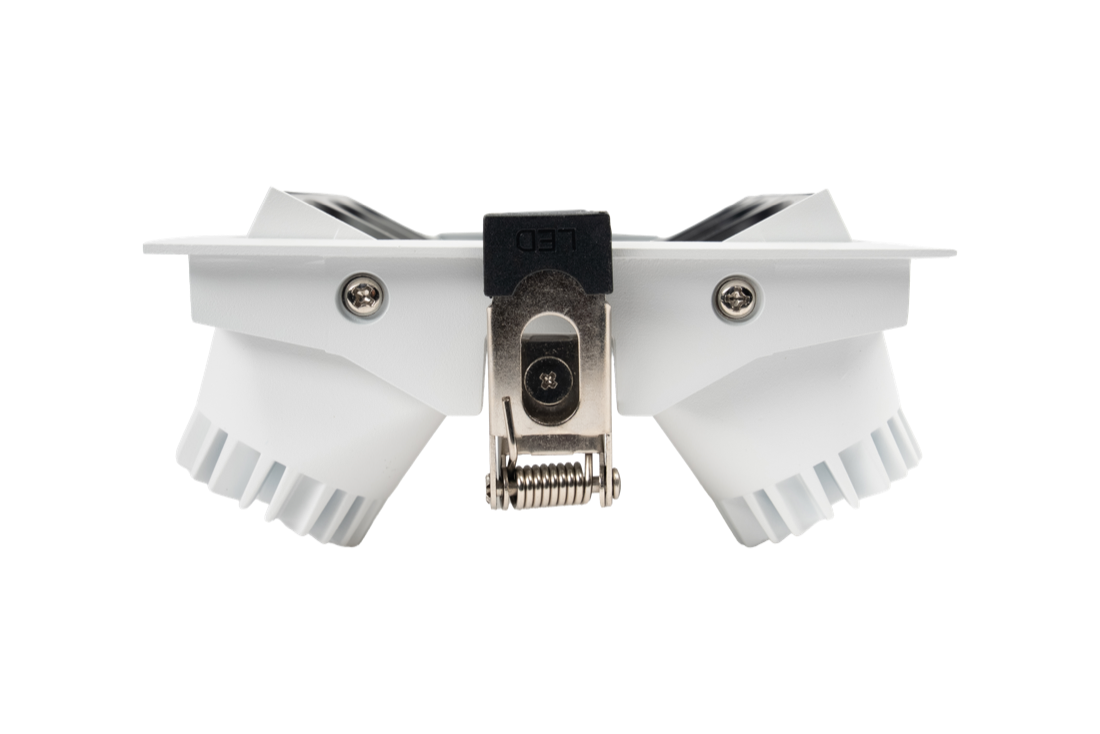

| Beam Tilt | ±25° |
| UGR | <13 |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-MI | 5W | 75 lm/W | 375 lm | 15°/24°/36° | >90 std · >95 opt |
| NLC-MI | 10W | 75 lm/W | 750 lm | 15°/24°/36° | >90 std · >95 opt |
| NLC-MI | 15W | 75 lm/W | 1,125 lm | 15°/24°/36° | >90 std · >95 opt |
| NLC-MI | 20W | 75 lm/W | 1,500 lm | 15°/24°/36° | >90 std · >95 opt |
| NLC-MI | 30W | 75 lm/W | 2,250 lm | 15°/24°/36° | >90 std · >95 opt |
| NLC-M2I | 30W | 75 lm/W | 2,250 lm | 15°/24°/36° | >90 std · >95 opt |
| NLC-M3I | 30W | 75 lm/W | 2,250 lm | 15°/24°/36° | >90 std · >95 opt |
* Values based on CCT 4000K | ±10% tolerance
