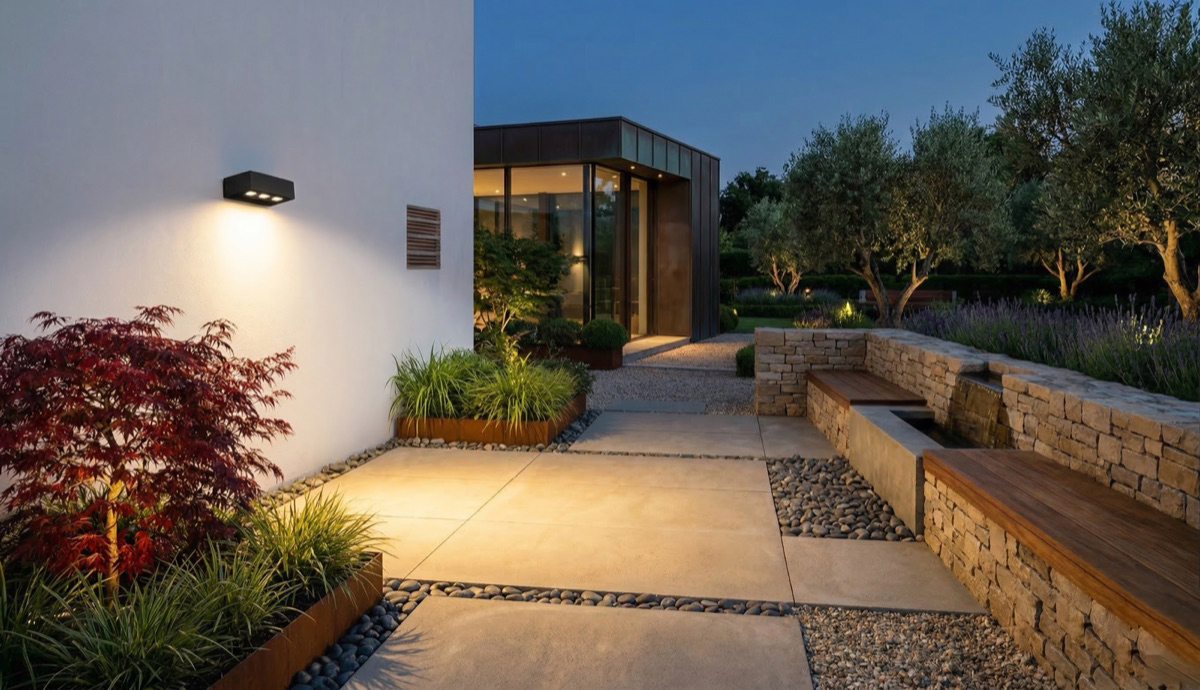

Sharp Lines, Smooth Illumination
Built from aluminum with a powder-coated finish, BEAM holds up outdoors and keeps a clean, professional look. The precision optics give consistent beam control and a glare-free output.
The BEAM is part of National Lighting Company's Wall Mounted Luminaire range. Wall-mounted luminaires combine architectural accent and functional lighting for indoor and outdoor walls. Like the rest of the NLC portfolio, it is engineered and assembled in Saudi Arabia for the demands of the local environment, high ambient temperatures, dust, and a need for long, low-maintenance service life.
National Lighting Company (NLC) has manufactured lighting in the Kingdom since 1993 and is an authorized assembler for Schneider Electric. The NLC range spans street and area lighting, flood and architectural lighting, solar luminaires, and low- and medium-voltage panels, all backed by local production in Dammam, technical support, and after-sales service across Saudi Arabia.
Detailed specifications for the BEAM, including wattage, lumen output, color temperature (CCT), beam angle, and ingress protection (IP) rating, are configured to each project and available on request. Contact our team for the current datasheet, pricing, and availability.
| Input Voltage | 100–277VAC | 50/60Hz |
| Power Factor | >0.90 |
| THD | <15% |
| Surge Protection | 1KV (L-N), 2KV (L/N-PE) |
| Protection Class | Class I |
| Working Temperature | -20°C ~ +55°C |
| Operating Humidity | 10–85% RH |
| IP Rating | IP54 |
| IK Rating | IK06 |
| Dimensions | L205 × W111 × H60 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Wall Mounted |
| Optics | Glass |
| Body Finish | Electrostatic Polyester Powder-Coated |
| LED Type | SMD5050 |
| Lifetime | L70B50 > 30,000h |
| Dimming | Optional |
| Switching Cycles | >15,000 |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-BM | 15.5W | 63 lm/W | 975 lm | 52° | Standard: >80 · Optional: >90 |
* Values calculated based on CCT 3000K | ±10% tolerance
* Dimensions: L205 × W111 × H60 mm
