Designed to Disappear, Built to Illuminate

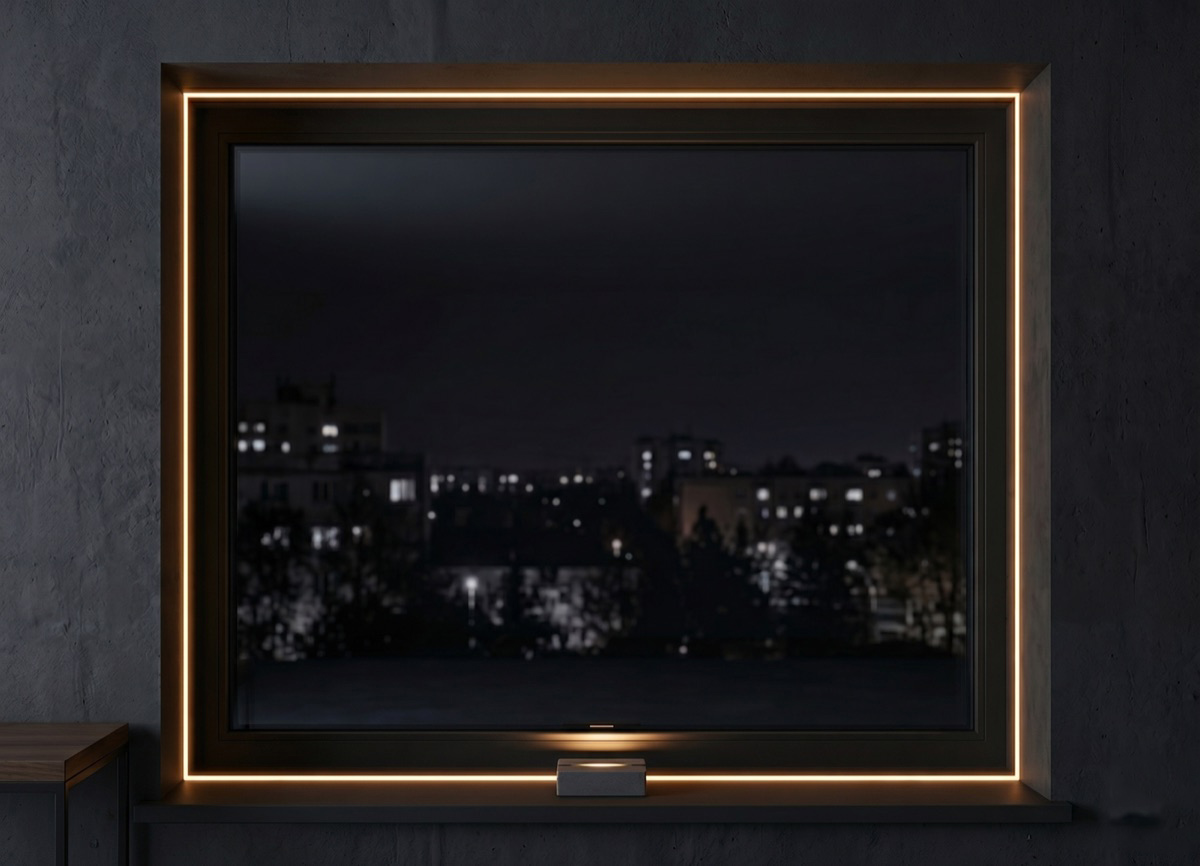

The FRAME is a window luminaire that redefines subtlety in architectural lighting. Whether installed as a single accent or in a continuous lighting rhythm, it proves that sometimes, the most powerful designs are the quietest, disappearing into the architecture while delivering precise, beautiful illumination.
The FRAME is part of National Lighting Company's Window Luminaire range. This luminaire is designed for accent and functional lighting in detailed architectural and interior settings. Like the rest of the NLC portfolio, it is engineered and assembled in Saudi Arabia for the demands of the local environment, high ambient temperatures, dust, and a need for long, low-maintenance service life.
National Lighting Company (NLC) has manufactured lighting in the Kingdom since 1993 and is an authorized assembler for Schneider Electric. The NLC range spans street and area lighting, flood and architectural lighting, solar luminaires, and low- and medium-voltage panels, all backed by local production in Dammam, technical support, and after-sales service across Saudi Arabia.
Detailed specifications for the FRAME, including wattage, lumen output, color temperature (CCT), beam angle, and ingress protection (IP) rating, are configured to each project and available on request. Contact our team for the current datasheet, pricing, and availability.
| Input Voltage | 100–240VAC | 50/60Hz |
| Power Factor | >0.7 |
| THD | <15% |
| Surge Protection | 1KV (L-N), 2KV (L/N-PE) |
| Protection Class | Class I |
| Working Temperature | -20°C ~ +55°C |
| Operating Humidity | 10–85% RH |
| IP Rating | IP65 |
| IK Rating | IK06 |
| Dimensions | L155 × W90 × H47 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Window Mounted |
| Optics | PMMA |
| Body Finish | Electrostatic Polyester Powder-Coated |
| LED Type | SMD |
| Lifetime | L70B50 > 30,000h |
| Dimming | Optional |
| Switching Cycles | >15,000 |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-FM | 3.8W | 20 lm/W | 76 lm | 20° | Standard: >80 · Optional: >90 |
* Values calculated based on CCT 3000K | ±10% tolerance
* Dimensions: L155 × W90 × H47 mm
