Transform Walls into Wonders

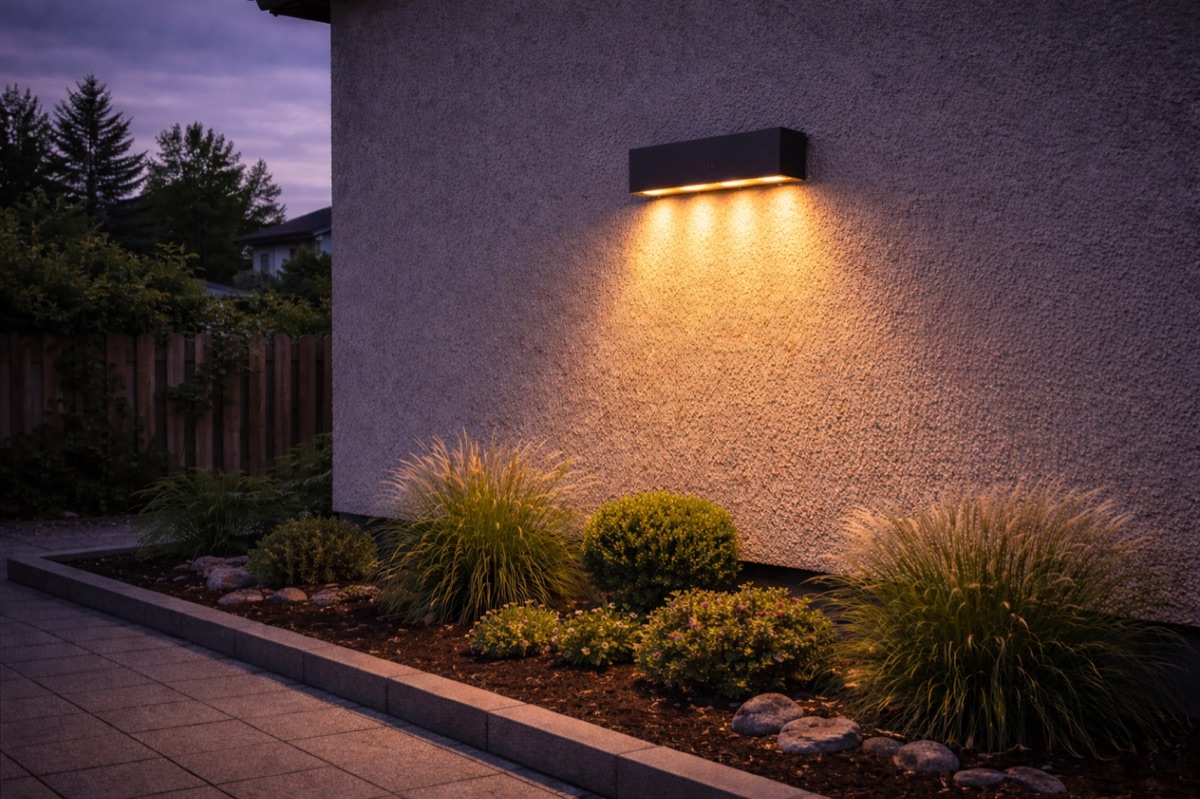

The FLARE combines modern elegance with powerful performance. With its tiltable head for precise aiming and an industry-leading efficiency of up to 120 lm/W, this luminaire offers exceptional brightness, outstanding efficiency, and reliable flicker-free operation you can count on, day after day.
| Input Voltage | 100–240VAC | 50/60Hz |
| Power Factor | >0.7 |
| THD | <15% |
| Surge Protection | 1KV (L-N), 2KV (L/N-PE) |
| Protection Class | Class I |
| Working Temperature | -20°C ~ +55°C |
| Operating Humidity | 10–85% RH |
| IP Rating | IP54 |
| IK Rating | IK05 |
| Dimensions | W231 × D77 × H48 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Wall Mounted (Tiltable Head) |
| Optics | Glass / PMMA / PC |
| Body Finish | Electrostatic Polyester Powder-Coated |
| LED Type | COB |
| Efficiency | Up to 120 lm/W |
| Lifetime | L70B50 > 30,000h |
| Dimming | Optional |
| Flicker-Free | Yes |
| Switching Cycles | >15,000 |
* Other colors available on request
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-FR | 6W | 120 lm/W | 720 lm | 28° | Standard: >80 · Optional: >90 |
* Values calculated based on CCT 3000K | ±10% tolerance
* Dimensions: W231 × D77 × H48 mm
