LED Strip / Neon Flex

COASTER

Flowing Light, Endless Form

IP67
IK10
UV Resistant
Salt Water Resistant
Colours
Ext. Service
3-Year Warranty · Ext. to 5 Yrs
24W / 5m
Power
5 mtrs
Max Length
125mm
Cut Unit
24/m
LED Qty/m
20°/30°/45°/60°/Asym
Beam Angle
>80
CRI

About this Product

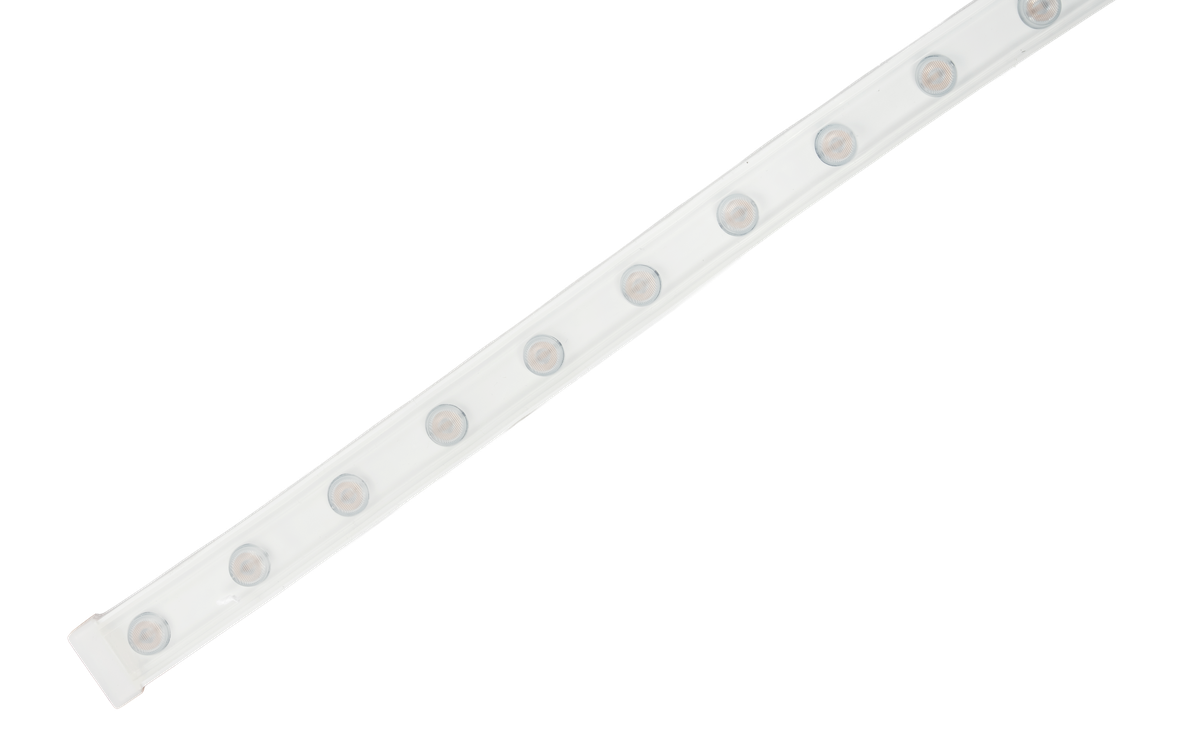

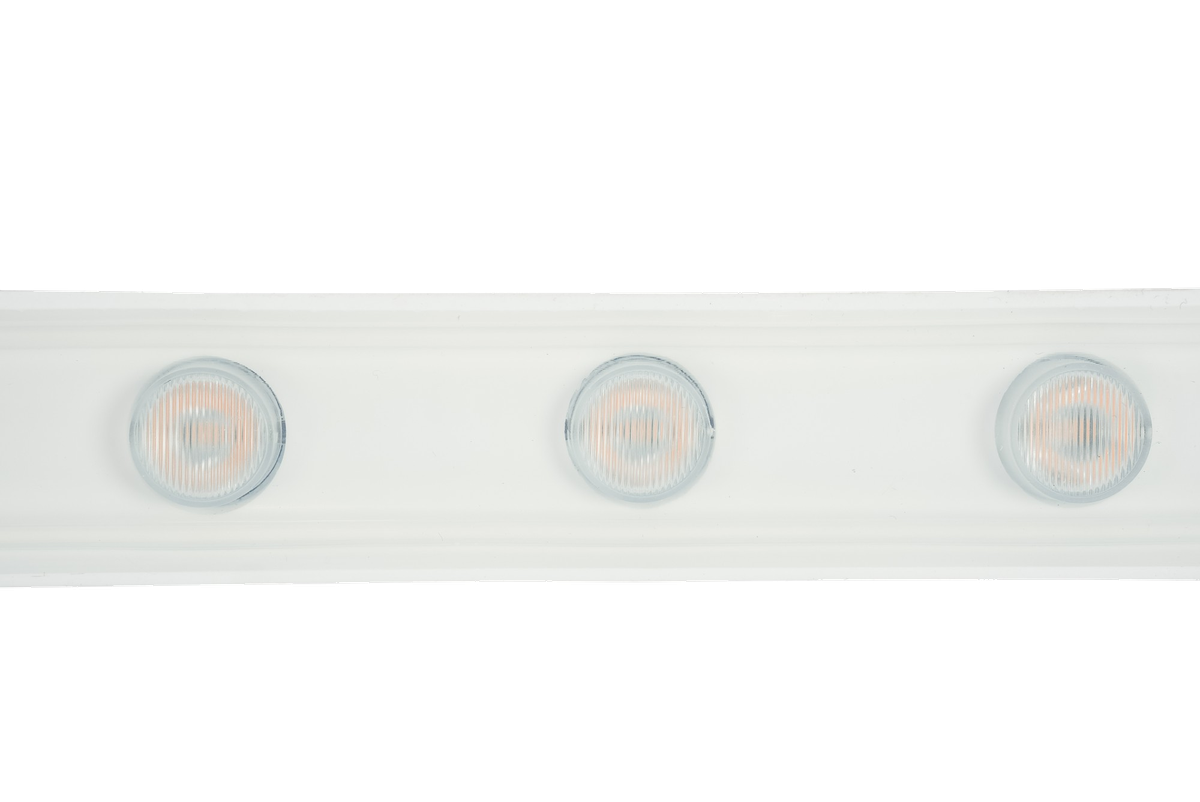

The COASTER outdoor LED strip offers full IP67 waterproof protection with a flexible dual-colour silicone extrusion. Available in white CCTs, RGB, and RGBW, it is ideal for architectural outline lighting, pathway edges, stair nosings, and marine applications.

The COASTER is part of National Lighting Company's LED Strip / Neon Flex range. LED strip and neon-flex products enable continuous linear and decorative lighting for coves, signage, and architectural lines. Like the rest of the NLC portfolio, it is engineered and assembled in Saudi Arabia for the demands of the local environment, high ambient temperatures, dust, and a need for long, low-maintenance service life.

National Lighting Company (NLC) has manufactured lighting in the Kingdom since 1993 and is an authorized assembler for Schneider Electric. The NLC range spans street and area lighting, flood and architectural lighting, solar luminaires, and low- and medium-voltage panels, all backed by local production in Dammam, technical support, and after-sales service across Saudi Arabia.

Detailed specifications for the COASTER, including wattage, lumen output, color temperature (CCT), beam angle, and ingress protection (IP) rating, are configured to each project and available on request. Contact our team for the current datasheet, pricing, and availability.

Display & ShowcaseSign Outline LightingCar Interior LightingBathroomFreezer and Cooler LightingOutdoor PathwayBoats OutlineStair LightingUnder Cabinet

Electrical Parameters

InputDC24V
Electrical ClassClass III
LED TypeSMD3030 / SMD3535
DimmingOptional

Environmental & Physical

Working Temperature-30°C to +65°C
Operating Humidity≤90%
DimensionsH15.6 × D27mm cross section
Min. Bending Radius15 cm top · 40 cm side
LifetimeL70B50 > 50,000h
Switching Cycles>25,000 times
CCT / ColorSystem LumenMax. LengthCRI
2700K2,150 lm5 mtrs>80 std · >90 opt
3000K2,150 lm5 mtrs>80
4000K2,300 lm5 mtrs>80
5000K2,450 lm5 mtrs>80
6500K2,450 lm5 mtrs>80
Red666 lm5 mtrs-
Green1,500 lm5 mtrs-
Blue360 lm5 mtrs-
RGB1,006 lm5 mtrs-
RGBW1,062 lm5 mtrs-

* Input: DC24V | Values subject to ±10% tolerance
