Design Without Limits

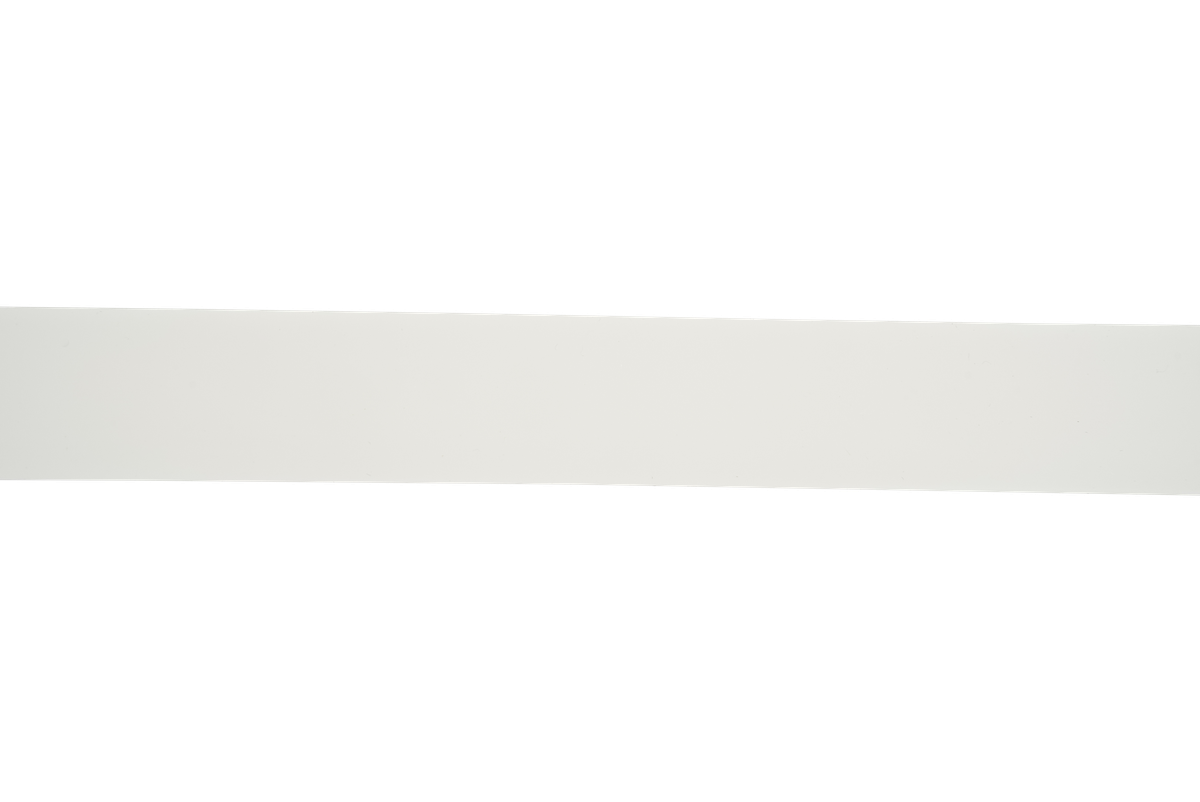

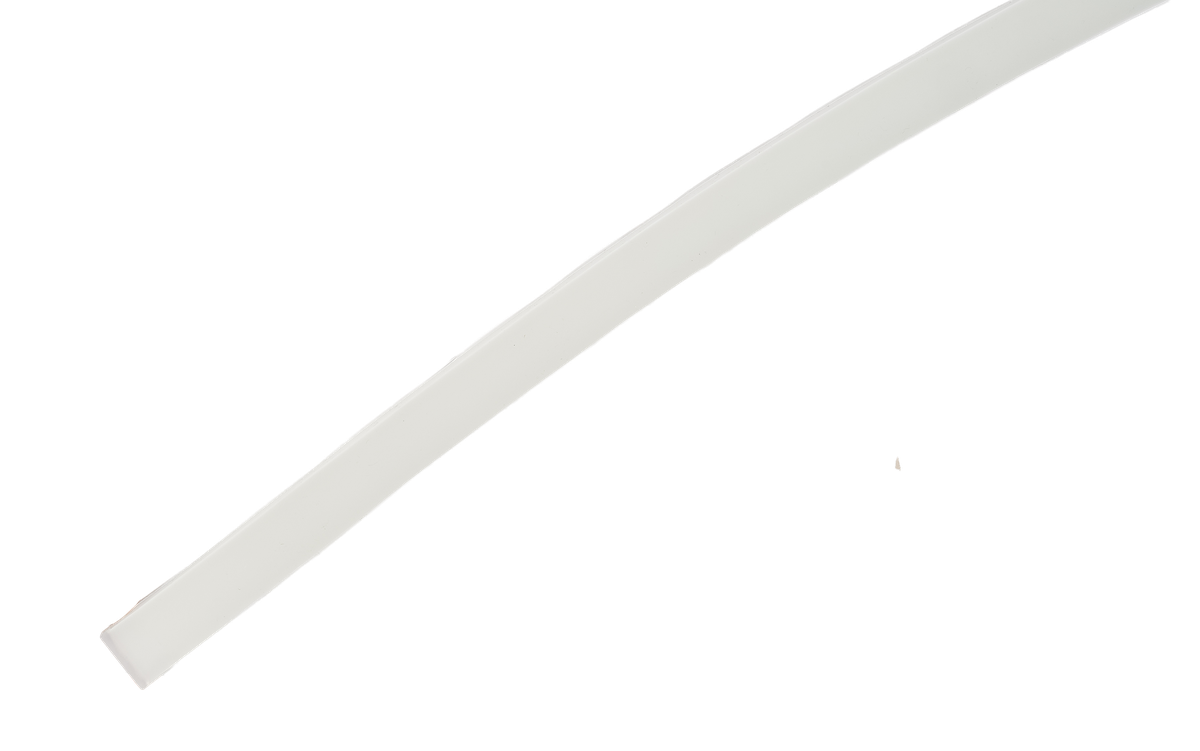

The CONTOUR-L outdoor neon flex offers a larger cross-section profile for higher lumen output and a premium neon-like appearance. With IP67 protection and RGBW capability, it is ideal for bold architectural cove lighting, facade feature strips, and outdoor signage applications.
The CONTOUR-L is part of National Lighting Company's LED Strip / Neon Flex range. LED strip and neon-flex products enable continuous linear and decorative lighting for coves, signage, and architectural lines. Like the rest of the NLC portfolio, it is engineered and assembled in Saudi Arabia for the demands of the local environment, high ambient temperatures, dust, and a need for long, low-maintenance service life.
National Lighting Company (NLC) has manufactured lighting in the Kingdom since 1993 and is an authorized assembler for Schneider Electric. The NLC range spans street and area lighting, flood and architectural lighting, solar luminaires, and low- and medium-voltage panels, all backed by local production in Dammam, technical support, and after-sales service across Saudi Arabia.
Detailed specifications for the CONTOUR-L, including wattage, lumen output, color temperature (CCT), beam angle, and ingress protection (IP) rating, are configured to each project and available on request. Contact our team for the current datasheet, pricing, and availability.
| Input | DC24V |
| Electrical Class | Class III |
| LED Type | SMD2835 / SMD5050 |
| Dimming | Optional |
| Working Temperature | -30°C to +65°C |
| Operating Humidity | ≤90% |
| Dimensions | H24 × D24 mm |
| Min. Bending Radius | 20 cm top · 40 cm side |
| Lifetime | L70B50 > 50,000h |
| Switching Cycles | >25,000 times |
| CCT / Color | System Lumen | Max. Length | CRI |
|---|---|---|---|
| 2700K | 1,275 lm | 5 mtrs | >80 std · >90 opt |
| 3000K | 1,330 lm | 5 mtrs | >80 |
| 4000K | 1,383 lm | 5 mtrs | >80 |
| 5000K | 1,383 lm | 5 mtrs | >80 |
| 6500K | 1,383 lm | 5 mtrs | >80 |
| Red | 465 lm | 5 mtrs | - |
| Green | 1,050 lm | 5 mtrs | - |
| Blue | 250 lm | 5 mtrs | - |
| RGB | 320 lm | 5 mtrs | - |
| RGBW | 549 lm | 5 mtrs | - |
* Input: DC24V | Values subject to ±10% tolerance
