Design Freedom, Powered by Light

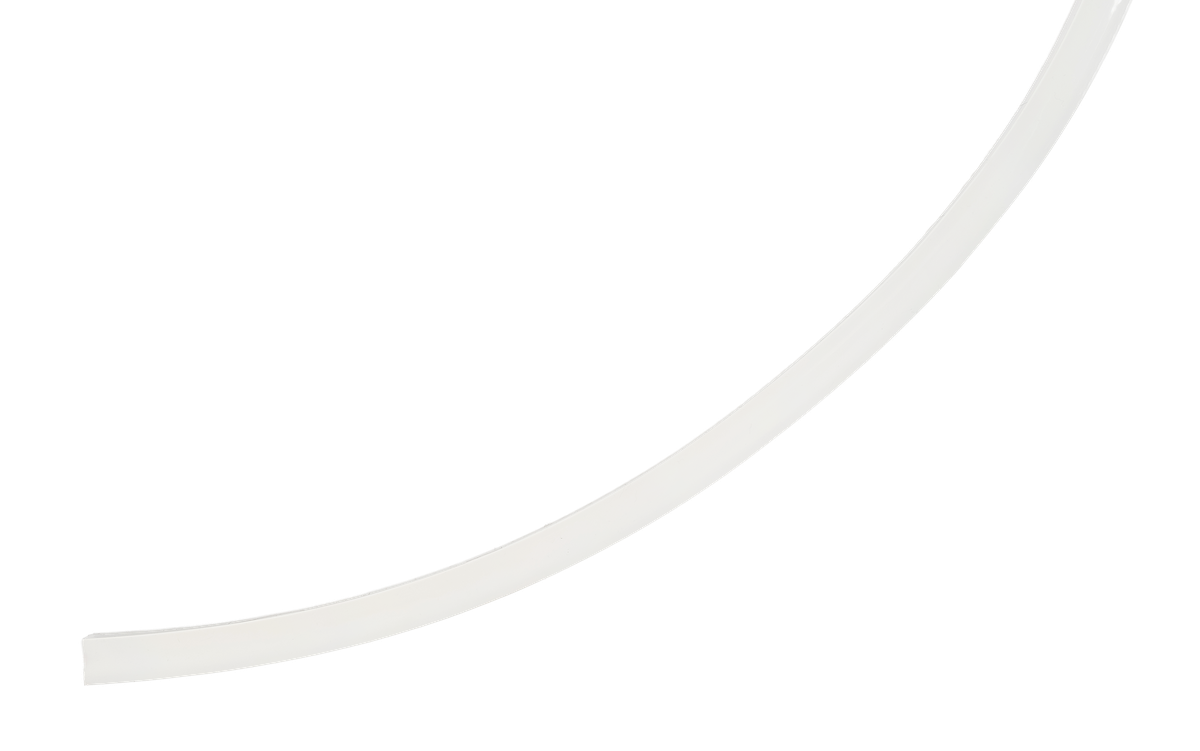

The CONTOUR-S is an ultra-slim outdoor LED strip with an exceptional 3 cm minimum bending radius, enabling tight curves and intricate architectural shapes. IP67-rated with CRI>90, it suits detailed facade lighting, signage, and creative installations where flexibility is paramount.
The CONTOUR-S is part of National Lighting Company's LED Strip / Neon Flex range. LED strip and neon-flex products enable continuous linear and decorative lighting for coves, signage, and architectural lines. Like the rest of the NLC portfolio, it is engineered and assembled in Saudi Arabia for the demands of the local environment, high ambient temperatures, dust, and a need for long, low-maintenance service life.
National Lighting Company (NLC) has manufactured lighting in the Kingdom since 1993 and is an authorized assembler for Schneider Electric. The NLC range spans street and area lighting, flood and architectural lighting, solar luminaires, and low- and medium-voltage panels, all backed by local production in Dammam, technical support, and after-sales service across Saudi Arabia.
Detailed specifications for the CONTOUR-S, including wattage, lumen output, color temperature (CCT), beam angle, and ingress protection (IP) rating, are configured to each project and available on request. Contact our team for the current datasheet, pricing, and availability.
| Input | DC24V |
| Electrical Class | Class III |
| LED Type | SMD2835 |
| Dimming | Optional |
| Working Temperature | -30°C to +65°C |
| Operating Humidity | ≤90% |
| Dimensions | H12.8 × W12 mm |
| Min. Bending Radius | 3 cm (very flexible) |
| Lifetime | L70B50 > 50,000h |
| Switching Cycles | >25,000 times |
| CCT / Color | System Lumen | Max. Length | CRI |
|---|---|---|---|
| 2700K | 585 lm | 10 mtrs | >90 std · >95 opt |
| 3000K | 585 lm | 10 mtrs | >90 |
| 4000K | 630 lm | 10 mtrs | >90 |
| 5000K | 630 lm | 10 mtrs | >90 |
| 6500K | 630 lm | 10 mtrs | >90 |
| Red | 251 lm | 10 mtrs | - |
| Green | 567 lm | 10 mtrs | - |
| Blue | 137 lm | 10 mtrs | - |
* Input: DC24V | Values subject to ±10% tolerance
