Wall Pack Luminaire

FENCE

Reliable Lighting

IP65
IK08
Colours
Ext. Service
100–277VAC
Polycarbonate
3-Year Warranty · Ext. to 5 Yrs
Up to 130 lm/W
Flicker-Free
120W
Power
15,600lm
Lumens
130 lm/W
Efficiency
117°×106°
Beam Angle
>70
CRI
100K h
Lifetime

About this Product

The FENCE is a rugged, reliable wall pack with a wide 117°×106° beam angle for maximum coverage. IP65/IK08 protection, SMD2835 LEDs, and a 100,000-hour lifetime ensure dependable performance across perimeters, car parks, and building exteriors.

Applications

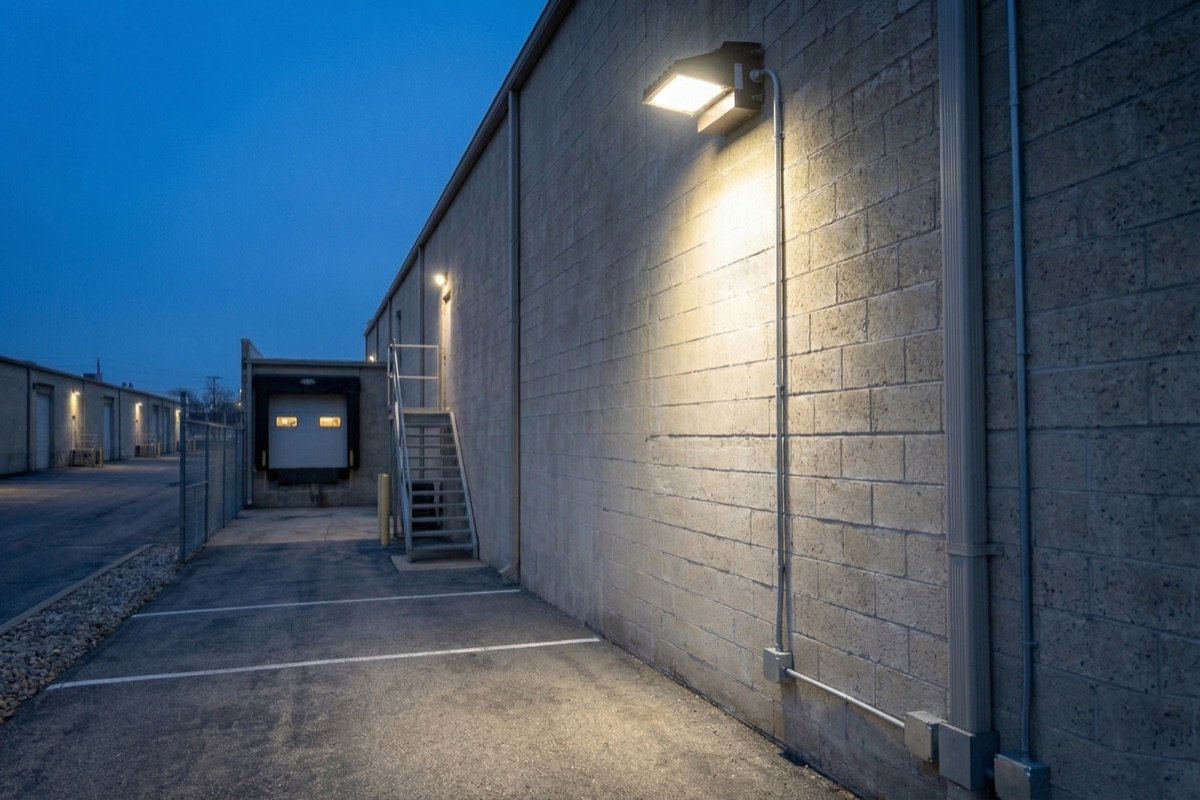

The FENCE is part of National Lighting Company's Wall Pack Luminaire range. Wall pack luminaires provide durable perimeter and entrance lighting for buildings and facilities. Like the rest of the NLC portfolio, it is engineered and assembled in Saudi Arabia for the demands of the local environment, high ambient temperatures, dust, and a need for long, low-maintenance service life.

National Lighting Company (NLC) has manufactured lighting in the Kingdom since 1993 and is an authorized assembler for Schneider Electric. The NLC range spans street and area lighting, flood and architectural lighting, solar luminaires, and low- and medium-voltage panels, all backed by local production in Dammam, technical support, and after-sales service across Saudi Arabia.

Detailed specifications for the FENCE, including wattage, lumen output, color temperature (CCT), beam angle, and ingress protection (IP) rating, are configured to each project and available on request. Contact our team for the current datasheet, pricing, and availability.

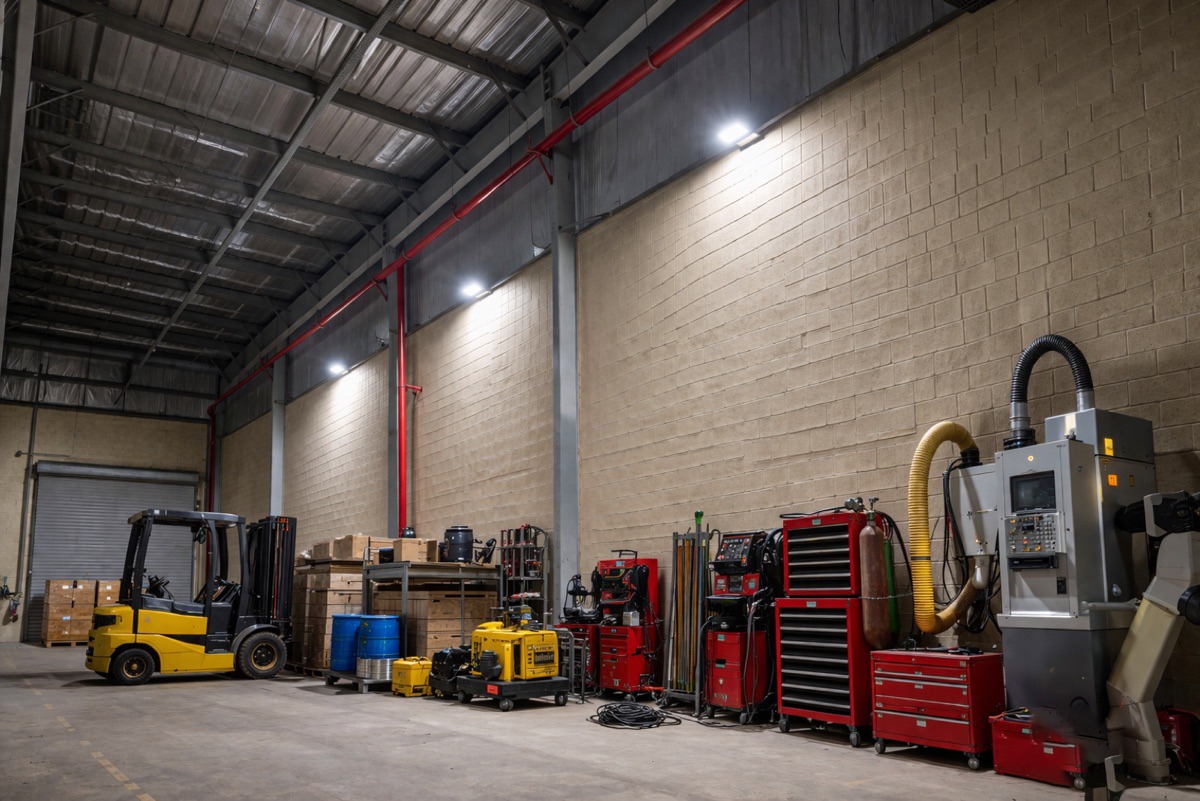

Business CampusesRecreational AreasSecurity LightingBuilding ExteriorsIndustrial HallsCar ParksEducational FacilitiesMall / Retail AreasPerimeter Areas

Electrical Parameters

Input Voltage100–277VAC | 50/60Hz
Power Factor>0.95 @ 220V / >0.90 @ 100–277V
THD<10 @ 220V / <20 @ 100–277V
Surge ProtectionInternal: DM 6KV/CM 10KV, External: 10KV/20KV
Electrical ClassClass I

Environmental Parameters

Working Temperature-40°C to +50°C
Operating Humidity20–90% RH
Dimensions325H × 242W × 162D mm

Color Temperature Options

3000K4000K6500K

Construction

HousingDie-cast Aluminum
MountingWall Mounting
OpticsPolycarbonate
Body FinishElectrostatic Polyester Powder-Coated

Performance

LED TypeSMD2835
LifetimeL70B50 >100,000h | L80B20 >50,000h
Dimming0-10V / PWM / Resistor
Switching Cycles>50,000
Emergency BackupOptional
Flicker-FreeYes

Available Colors

Brown
Black
ModelPowerEfficiencySystem LumenBeam AngleCRI
NLC-FE120W130 lm/W15,600 lm117°×106°>70 std · >80 opt

* Values based on CCT 4000K | ±10% tolerance
