Brighter, Tougher, Smarter

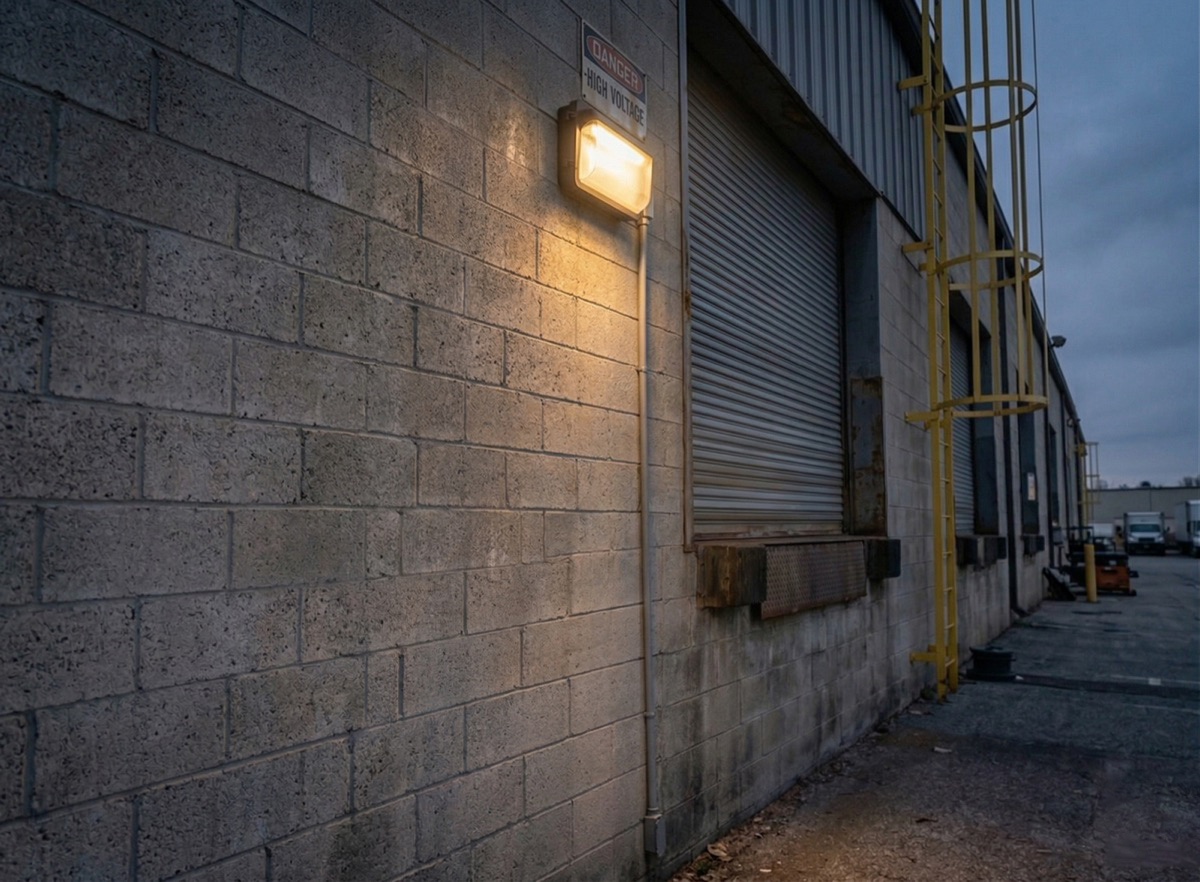

The TILE wall pack delivers up to 130 lm/W with IP65 protection and heavy-duty surge resistance. SMD2835 technology, 0-10V dimming, and a bronze finish make it a reliable choice for car parks, security lighting, and building exteriors.
The TILE is part of National Lighting Company's Wall Pack Luminaire range. Wall pack luminaires provide durable perimeter and entrance lighting for buildings and facilities. Like the rest of the NLC portfolio, it is engineered and assembled in Saudi Arabia for the demands of the local environment, high ambient temperatures, dust, and a need for long, low-maintenance service life.
National Lighting Company (NLC) has manufactured lighting in the Kingdom since 1993 and is an authorized assembler for Schneider Electric. The NLC range spans street and area lighting, flood and architectural lighting, solar luminaires, and low- and medium-voltage panels, all backed by local production in Dammam, technical support, and after-sales service across Saudi Arabia.
Detailed specifications for the TILE, including wattage, lumen output, color temperature (CCT), beam angle, and ingress protection (IP) rating, are configured to each project and available on request. Contact our team for the current datasheet, pricing, and availability.
| Input Voltage | 100–277VAC | 50/60Hz |
| Power Factor | >0.95 @ 220V / >0.90 @ 100–277V |
| THD | <10 @ 220V / <20 @ 100–277V |
| Surge Protection | Internal: DM 6KV/CM 10KV, External: 10KV/20KV |
| Electrical Class | Class I |
| Working Temperature | -40°C to +45°C |
| Operating Humidity | 20–90% RH |
| Dimensions | W350 × H225.6 × D113.7 mm |
| Housing | Die-cast Aluminum |
| Mounting | Wall Mounting |
| Optics | Polycarbonate |
| Body Finish | Electrostatic Polyester Powder-Coated |
| LED Type | SMD2835 |
| Lifetime | L70B50 >50,000h | L80B20 >30,000h |
| Dimming | 0-10V / PWM / Resistor |
| Switching Cycles | >25,000 |
| Emergency Backup | Optional |
| Flicker-Free | Yes |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-TI | 120W | 130 lm/W | 15,600 lm | H88°×V67° | >70 std · >80 opt |
* Values based on CCT 4000K | ±10% tolerance
