Illumination, Sculpted with Precision
Built from aluminum with a powder-coated finish, LADDAR holds up to harsh outdoor conditions without losing its architectural finish. The geometric form is minimal but distinct, and reads well in contemporary urban and residential settings.

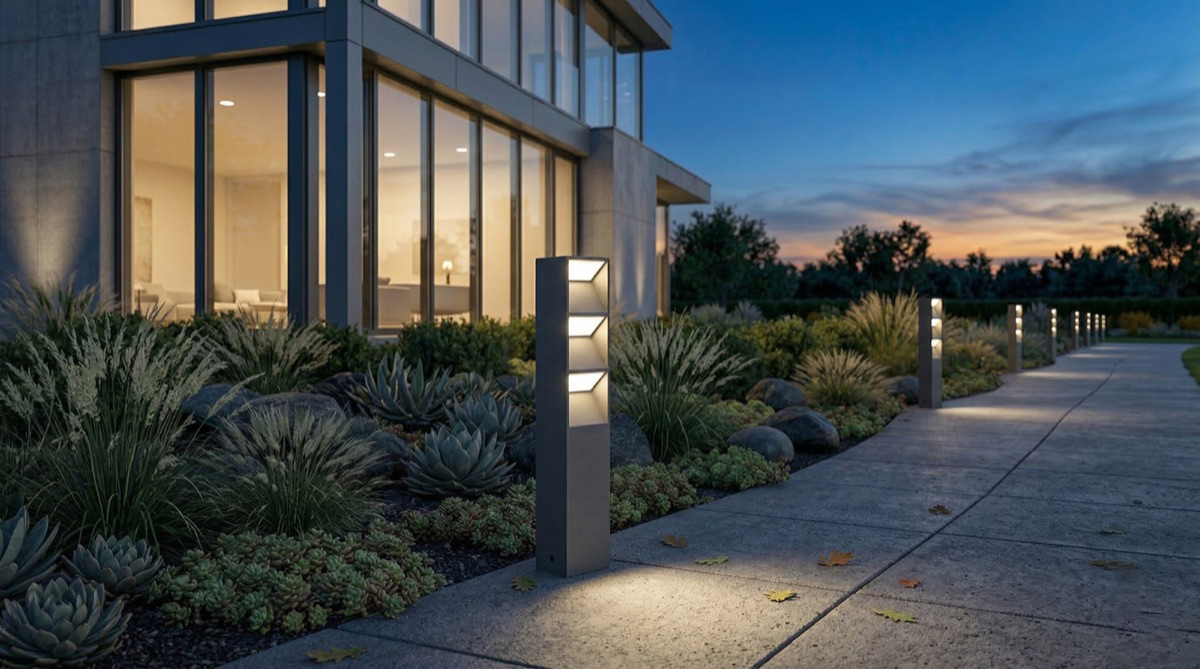

The LADDAR is part of National Lighting Company's Bollard Luminaire range. Bollard luminaires light pathways, landscapes, and building approaches at a low, comfortable level. Like the rest of the NLC portfolio, it is engineered and assembled in Saudi Arabia for the demands of the local environment, high ambient temperatures, dust, and a need for long, low-maintenance service life.
National Lighting Company (NLC) has manufactured lighting in the Kingdom since 1993 and is an authorized assembler for Schneider Electric. The NLC range spans street and area lighting, flood and architectural lighting, solar luminaires, and low- and medium-voltage panels, all backed by local production in Dammam, technical support, and after-sales service across Saudi Arabia.
Detailed specifications for the LADDAR, including wattage, lumen output, color temperature (CCT), beam angle, and ingress protection (IP) rating, are configured to each project and available on request. Contact our team for the current datasheet, pricing, and availability.
| Input Voltage | 100–240VAC | 50/60Hz |
| Power Factor | >0.7 |
| THD | <15% |
| Surge Protection | 1KV (L-N), 2KV (L/N-PE) |
| Protection Class | Class I |
| Working Temperature | -20°C ~ +55°C |
| Operating Humidity | 10–85% RH |
| IP Rating | IP65 |
| IK Rating | IK10 |
| Dimensions | L86 × W60 × H600 mm (H600) · L150 × W130 × H900 mm (H900) |
| Housing | Die-Cast Aluminum |
| Mounting | Bollard |
| Optics | PC |
| Body Finish | Electrostatic Polyester Powder-Coated |
| LED Type | SMD2835 |
| Lifetime | L70B50 > 30,000h |
| Dimming | Optional |
| Switching Cycles | >15,000 |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-LA | 12W | 53LM/W | 629LM | 92° | Standard: >80 · Optional: >90 |
* Values calculated based on CCT 3000K | ±10% tolerance
* Available in 2 heights: H600mm · H900mm
