Linear Batten

OCEAN

Clean Lines, Perfect Light

Linear Design
Colours
Ext. Service
220–240VAC
Polycarbonate
3-Year Warranty · Ext. to 5 Yrs
Up to 120 lm/W
20–40W
Power
2,400–4,800 lm
Lumens
120 lm/W
Efficiency
105°
Beam Angle
>80
CRI
100,000h
Lifetime

About this Product

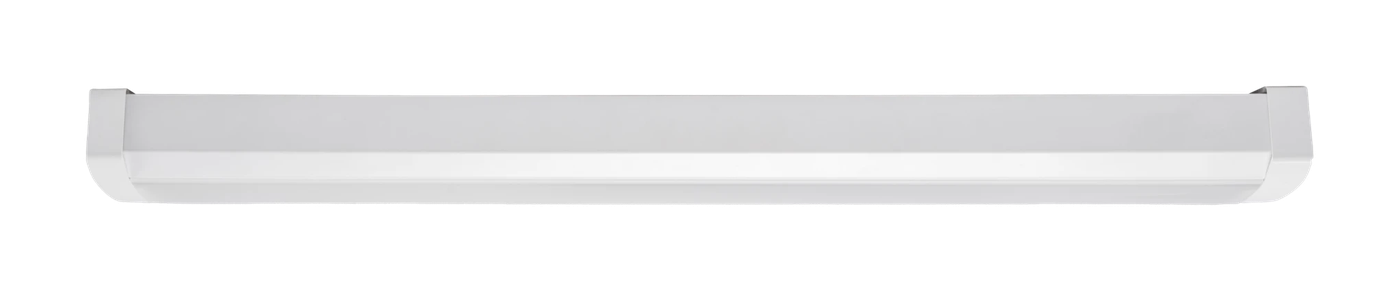

The OCEAN linear batten delivers clean, even illumination across its full length with a 105° beam angle. Surface or suspension mounting options and a minimal steel housing make it a versatile choice for offices, reception areas, and retail environments.

The OCEAN is part of National Lighting Company's Linear Batten range. Linear luminaires give clean, continuous illumination for offices, retail, and architectural ceilings. Like the rest of the NLC portfolio, it is engineered and assembled in Saudi Arabia for the demands of the local environment, high ambient temperatures, dust, and a need for long, low-maintenance service life.

National Lighting Company (NLC) has manufactured lighting in the Kingdom since 1993 and is an authorized assembler for Schneider Electric. The NLC range spans street and area lighting, flood and architectural lighting, solar luminaires, and low- and medium-voltage panels, all backed by local production in Dammam, technical support, and after-sales service across Saudi Arabia.

Detailed specifications for the OCEAN, including wattage, lumen output, color temperature (CCT), beam angle, and ingress protection (IP) rating, are configured to each project and available on request. Contact our team for the current datasheet, pricing, and availability.

Residential AreasGalleries and MuseumsHospitality SpacesReception AreasRetail StoresOffices and Meeting Rooms

Electrical Parameters

Input Voltage220–240VAC · 50/60Hz
Power Factor>0.95
THD<15
Surge Protection1KV (L-N) · 2KV (L/N-PE)
Electrical ClassClass II

Environmental Parameters

Working Temperature45°C
Ingress ProtectionIP20
Operating Humidity20–85% RH
Dimensions20W: L619×H54×W135 · 40W: L1209×H54×W135 mm

Color Temperature Options

3000K4000K6500K

Construction

HousingSteel
MountingSurface Mounted / Hanging
OpticsPolycarbonate
Body FinishElectrostatic Polyester Powder-Coated
Body ColorsWhite

LED & Light Source

LED TypeSMD2835
LifetimeL70B50 > 100,000h | L80B20 > 50,000h
DimmingOptional
Switching Cycles>50,000 times
Emergency BackupOptional
Flicker FreeYes
ModelPowerEfficiencySystem LumenBeam AngleCRI
NLC-OC20W120 lm/W2,400 lm105°>80 std · >90 opt
NLC-OC40W120 lm/W4,800 lm105°>80 std · >90 opt

* Values based on CCT 4000K | ±10% tolerance
