Pure Light, Simple Design

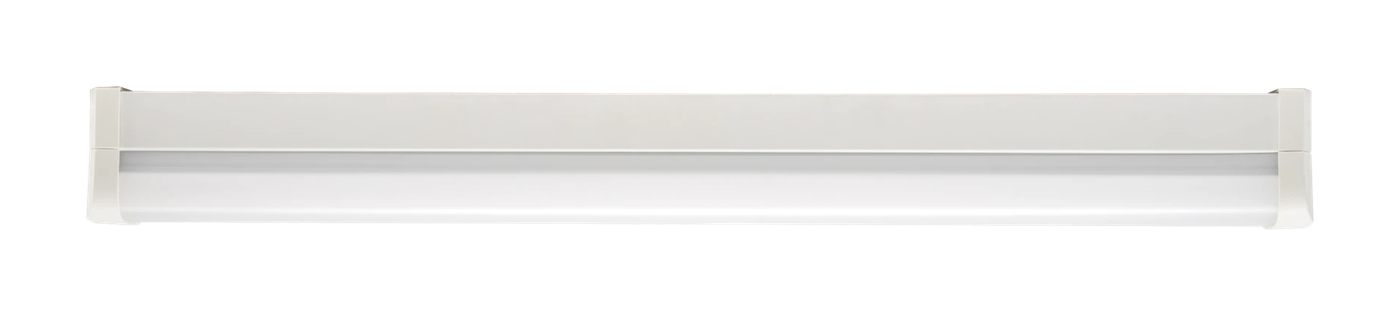

The STREAM linear batten features a minimal steel housing designed for easy surface or suspension mounting. Its 120° beam angle and 120 lm/W efficiency deliver uniform illumination for offices, retail spaces, and meeting rooms.
The STREAM is part of National Lighting Company's Linear Batten range. Linear luminaires give clean, continuous illumination for offices, retail, and architectural ceilings. Like the rest of the NLC portfolio, it is engineered and assembled in Saudi Arabia for the demands of the local environment, high ambient temperatures, dust, and a need for long, low-maintenance service life.
National Lighting Company (NLC) has manufactured lighting in the Kingdom since 1993 and is an authorized assembler for Schneider Electric. The NLC range spans street and area lighting, flood and architectural lighting, solar luminaires, and low- and medium-voltage panels, all backed by local production in Dammam, technical support, and after-sales service across Saudi Arabia.
Detailed specifications for the STREAM, including wattage, lumen output, color temperature (CCT), beam angle, and ingress protection (IP) rating, are configured to each project and available on request. Contact our team for the current datasheet, pricing, and availability.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Working Temperature | 45°C |
| Operating Humidity | 20–85% RH |
| Dimensions | 20W: L612×H67.5×W66 · 40W: L1174×H67.5×W66 mm |
| Housing | Steel |
| Mounting | Surface Mounted / Hanging |
| Optics | Polycarbonate |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Colors | White |
| LED Type | SMD2835 |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Dimming | Optional |
| Switching Cycles | >50,000 times |
| Emergency Backup | Optional |
| Flicker Free | 45°C |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-SM | 20W | 120 lm/W | 2,400 lm | 120° | >80 std · >90 opt |
| NLC-SM | 40W | 120 lm/W | 4,800 lm | 120° | >80 std · >90 opt |
* Values based on CCT 4000K | ±10% tolerance
