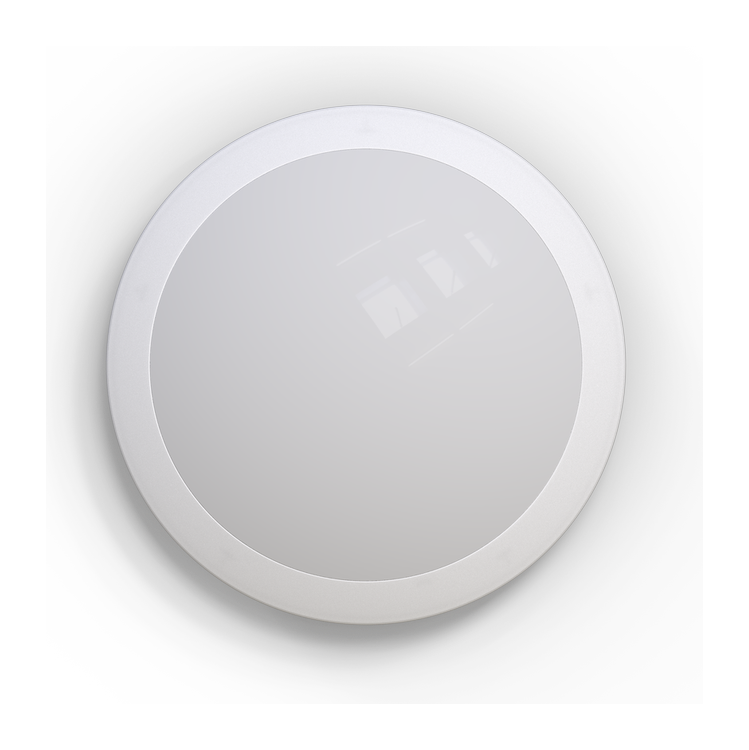

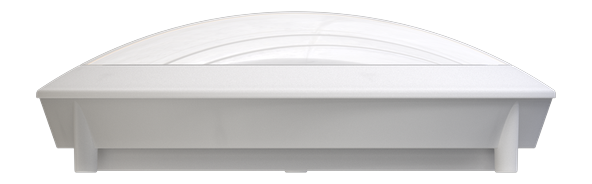

Surface Downlight

LUNA

Brilliance Made Simple

IP66
IK10
Colours
Ext. Service
220–240VAC
Polycarbonate
3-Year Warranty · Ext. to 5 Yrs
Compact Design
15–24W
Power
1,650–2,640 lm
Lumens
110 lm/W
Efficiency
110°
Beam Angle
>80
CRI
100,000h
Lifetime

About this Product

The LUNA surface-mounted downlight combines clean polycarbonate construction with IP66 and IK10 ratings, making it equally at home in residential spaces and demanding commercial environments. Its compact circular form and wide beam angle ensure uniform, comfortable illumination.

The LUNA is part of National Lighting Company's Surface Downlight range. Downlights deliver discreet, energy-efficient ceiling illumination for interiors and commercial spaces. Like the rest of the NLC portfolio, it is engineered and assembled in Saudi Arabia for the demands of the local environment, high ambient temperatures, dust, and a need for long, low-maintenance service life.

National Lighting Company (NLC) has manufactured lighting in the Kingdom since 1993 and is an authorized assembler for Schneider Electric. The NLC range spans street and area lighting, flood and architectural lighting, solar luminaires, and low- and medium-voltage panels, all backed by local production in Dammam, technical support, and after-sales service across Saudi Arabia.

Detailed specifications for the LUNA, including wattage, lumen output, color temperature (CCT), beam angle, and ingress protection (IP) rating, are configured to each project and available on request. Contact our team for the current datasheet, pricing, and availability.

Residential AreasGalleries and MuseumsHospitality SpacesReception AreasRetail StoresOffices and Meeting Rooms

Electrical Parameters

Input Voltage220–240VAC · 50/60Hz
Power Factor>0.95
THD<15
Surge Protection1KV (L-N) · 2KV (L/N-PE)
Electrical ClassClass I

Environmental Parameters

Working Temperature-20°C to +45°C
Operating Humidity20–85% RH
DimensionsD300 × H93 mm

Color Temperature Options

3000K4000K6500K

Construction

HousingPolycarbonate
MountingSurface Mounted
OpticsPolycarbonate
Body FinishElectrostatic Polyester Powder-Coated
Body ColorsBlack · Gray · White

LED & Light Source

LED TypeSMD2835
LifetimeL70B50 > 100,000h | L80B20 > 50,000h
DimmingOptional
Switching Cycles>50,000 times
Emergency BackupOptional
Flicker Free-
ModelPowerEfficiencySystem LumenBeam AngleCRI
NLC-LU15W110 lm/W1,650 lm110°>80 std · >90 opt
NLC-LU20W110 lm/W2,200 lm110°>80 std · >90 opt
NLC-LU24W110 lm/W2,640 lm110°>80 std · >90 opt

* Values based on CCT 4000K | ±10% tolerance
