Strong. Stylish. Reliable

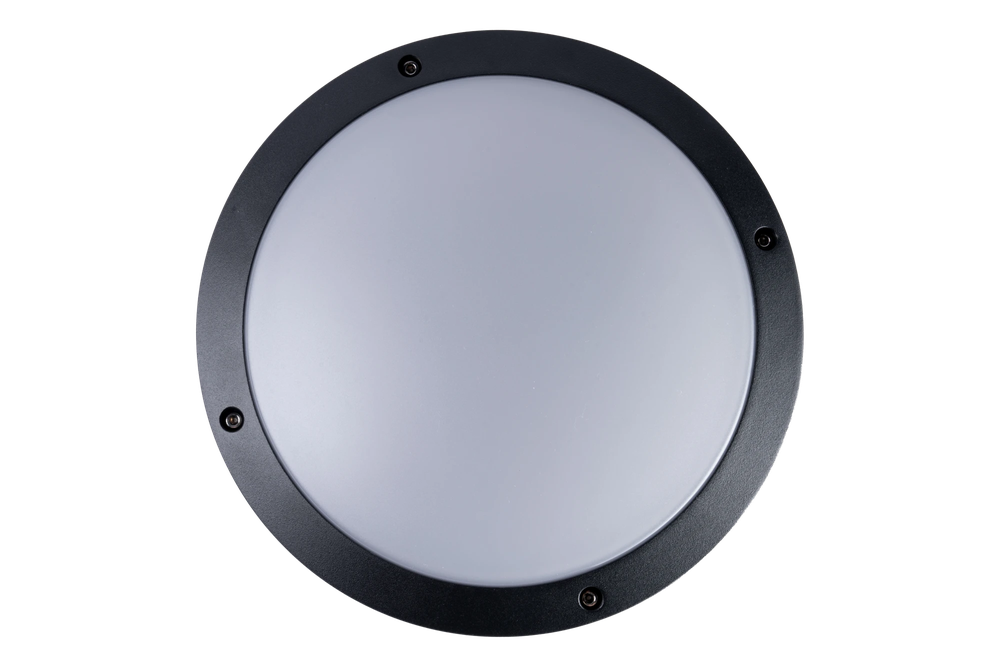

The EDGE IP65-rated industrial luminaire combines rugged die-cast aluminium with a range of optional wire guard configurations for environments where impact and dust resistance are essential. Its 120° beam angle provides wide, even distribution across workshops, car parks, and logistics centres.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class I |
| Working Temperature | 55°C |
| Operating Humidity | 20–90% RH |
| Dimensions | 18W: D220×H80 · 25/30W: D275×H80 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Surface Mounted / Hanging |
| Optics | Polycarbonate |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Colors | Black · Grey · White |
| LED Type | SMD2835 |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Dimming | Optional |
| Switching Cycles | >50,000 times |
| Emergency Backup | Optional |
| Flicker Free | 45°C |
| Guard Types | Cross · Square Grid · Rectangular Grid · Plus · Half Moon |
| Dimensions | 18W: D220×H80 · 25/30W: D275×H80 mm |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-ED | 18W | 110 lm/W | 1,980 lm | 120° | >80 std · >90 opt |
| NLC-ED | 25W | 110 lm/W | 2,750 lm | 120° | >80 std · >90 opt |
| NLC-ED | 30W | 110 lm/W | 3,300 lm | 120° | >80 std · >90 opt |
* Values based on CCT 4000K | ±10% tolerance
