Powerful and Durable Lighting for Demanding Environments

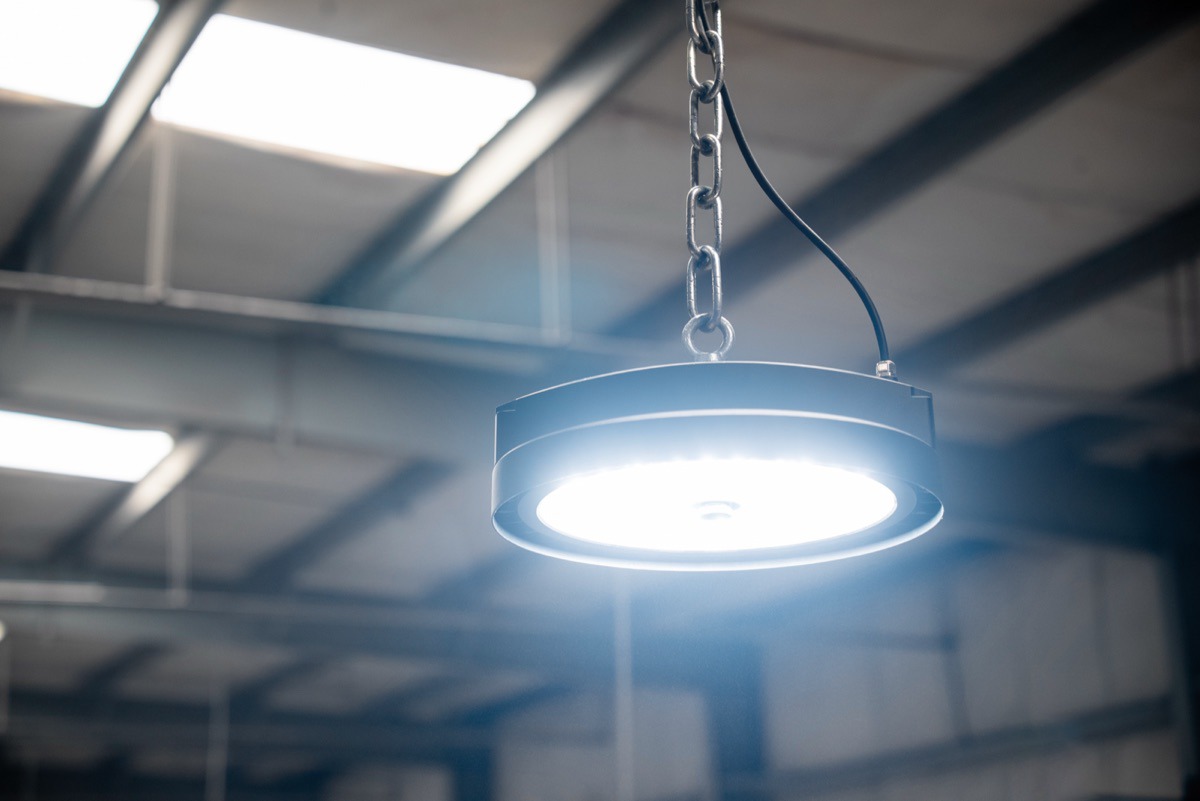

The SHELL high bay delivers up to 180 lm/W efficiency with IP66 and IK08 protection, making it ideal for the most demanding industrial environments. Its die-cast aluminium construction and multiple beam angle options ensure optimal light distribution for any space.
| Input Voltage | 100–277V · 50/60Hz |
| Power Factor | >0.95 @ 220V | >0.90 @ 100–277V |
| THD | <10 @ 220V | <20 @ 100–277V |
| Surge Protection | Internal: DM 6KV / CM 10KV · External: 10KV / 20KV |
| Electrical Class | Class I |
| Working Temperature | -40°C to +70°C |
| Operating Humidity | - |
| Dimensions | D400 × H184 mm |
| Housing | Die-cast Aluminum |
| Mounting | Suspended / Surface Mount |
| Optics | PC Lens + Tempered Glass |
| Body Finish | Thermally Stabilised Powder Coating |
| Body Colors | Gray · Black · White |
| LED Type | SMD5050 |
| Lifetime | L70B50 > 100,000h | L90B10 > 60,000h |
| Dimming | 0–10V / PWM / Timing / Resistor |
| Switching Cycles | >50,000 times |
| Emergency Backup | Optional |
| Flicker Free | Yes |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-SH | 100W | 180 lm/W | 18,000 lm | 60°/90°/120° | >80 |
| NLC-SH | 150W | 180 lm/W | 27,000 lm | 60°/90°/120° | >80 |
| NLC-SH | 200W | 180 lm/W | 36,000 lm | 60°/90°/120° | >80 |
* Values based on CCT 4000K | ±10% tolerance
