Powerful Light, Smart Efficiency

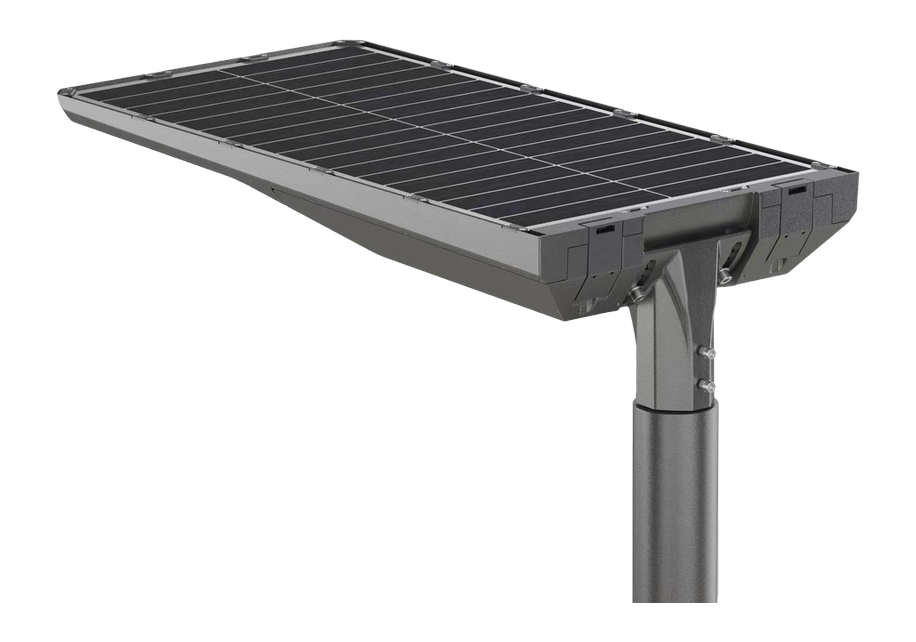

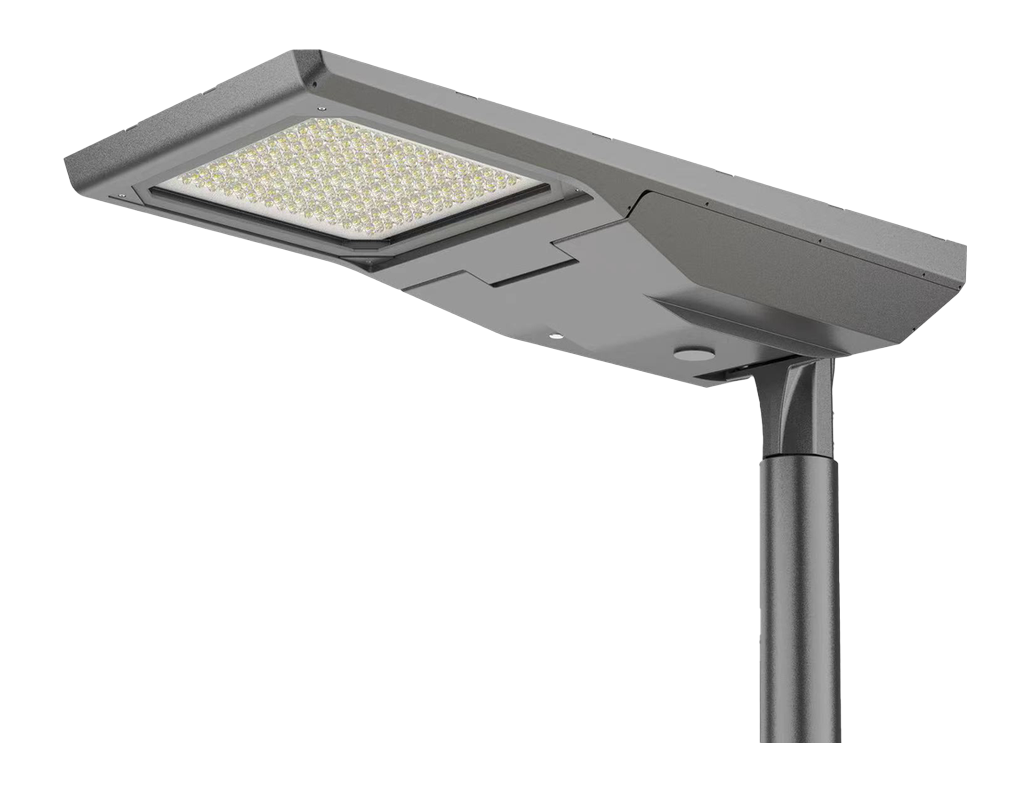

The PHOTON solar street light delivers up to 178 lm/W efficiency powered entirely by the sun. With a LiFePO4 battery providing 1–3 days of autonomy, integrated MPPT controller, and multiple working modes including PIR sensor dimming, it is the smart choice for off-grid street and perimeter lighting.
The PHOTON operates fully off-grid with an integrated MPPT solar controller, LiFePO4 battery, and optional PIR/microwave motion sensor for automatic dimming and motion-triggered brightness.
| Input Voltage | AC/DC · DC |
| Power Factor | >0.95 |
| THD | <10 @ 220V | <20 @ 100–277V |
| Surge Protection | Internal: DM 6KV / CM 10KV · External: 10KV / 20KV |
| Electrical Class | Class I |
| Working Temperature | -40°C to +55°C |
| Operating Humidity | - |
| Dimensions | 24/27W: L835×W370×H153 mm · 47/53W: L1105×W475×H157 mm |
| Housing | Die-cast Aluminum |
| Mounting | Pole Mounting |
| Optics | PC Lens + Tempered Glass |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Colors | Gray · Black |
| LED Type | SMD2835 |
| Lifetime | Up to 100,000h |
| Dimming | PIR / Microwave / Photocell / Time Control |
| Switching Cycles | >50,000 times |
| Emergency Backup | - |
| Flicker Free | - |
| Solar Panel | 18V 45W · 18V 82W Mono Crystalline |
| Battery | 12.8V 15AH · 12.8V 45AH LiFePO4 |
| Controller | LUMIAX 12V / 24V 20A MPPT |
| Autonomy | 1–3 Days |
| Working Mode | 1h 100% + 2h 60% + 2h 50% + 5h 30% + 2h 40% |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-PH | 24W | 175 lm/W | 4,200 lm | Available options | >70 std · >80 opt |
| NLC-PH | 27W | 178 lm/W | 4,800 lm | upon request | >70 std · >80 opt |
| NLC-PH | 47W | 178 lm/W | 8,400 lm | - | >70 std · >80 opt |
| NLC-PH | 53W | 178 lm/W | 9,450 lm | - | >70 std · >80 opt |
* Values based on CCT 4000K | ±10% tolerance
