Brighter Light, Safer Nights

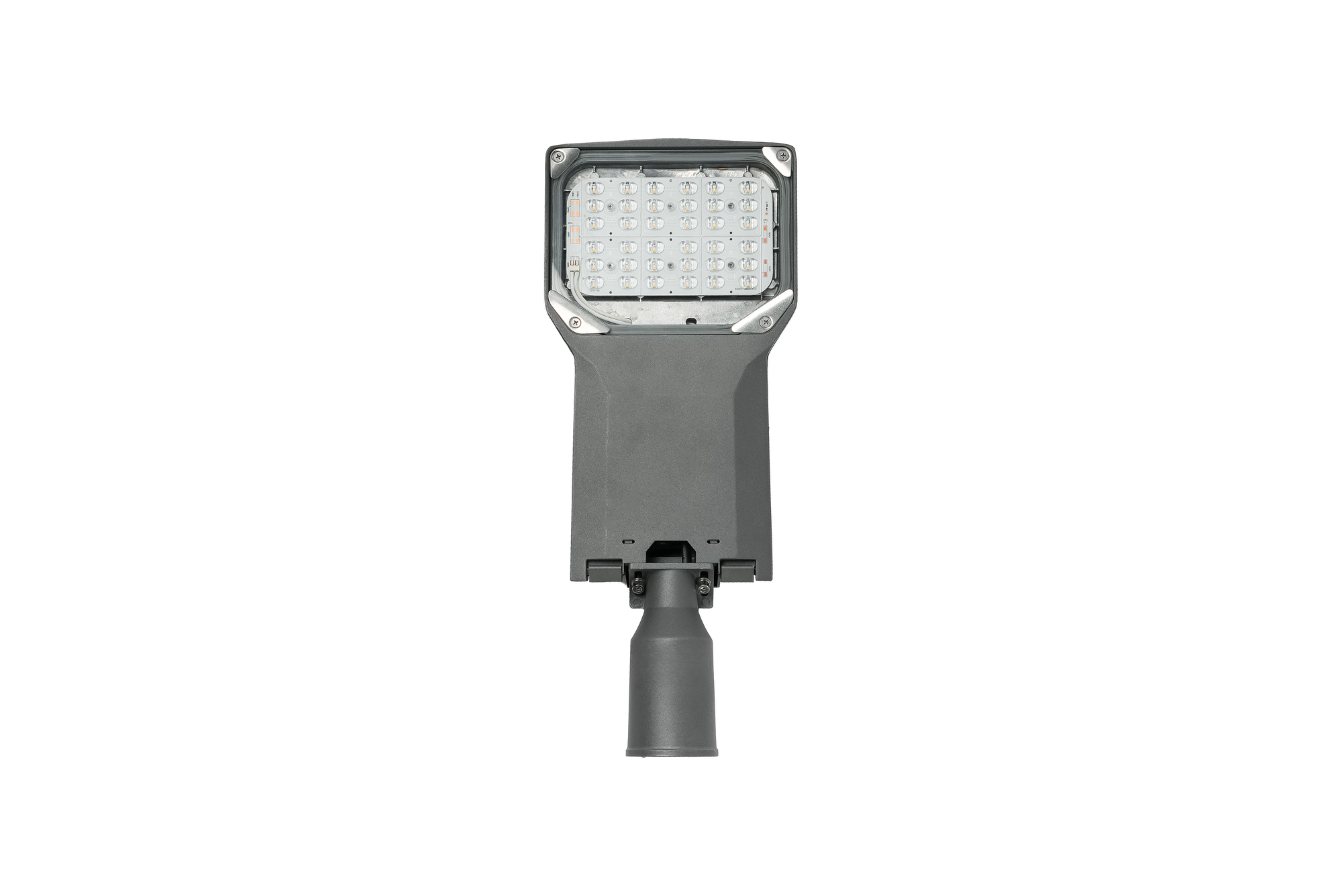

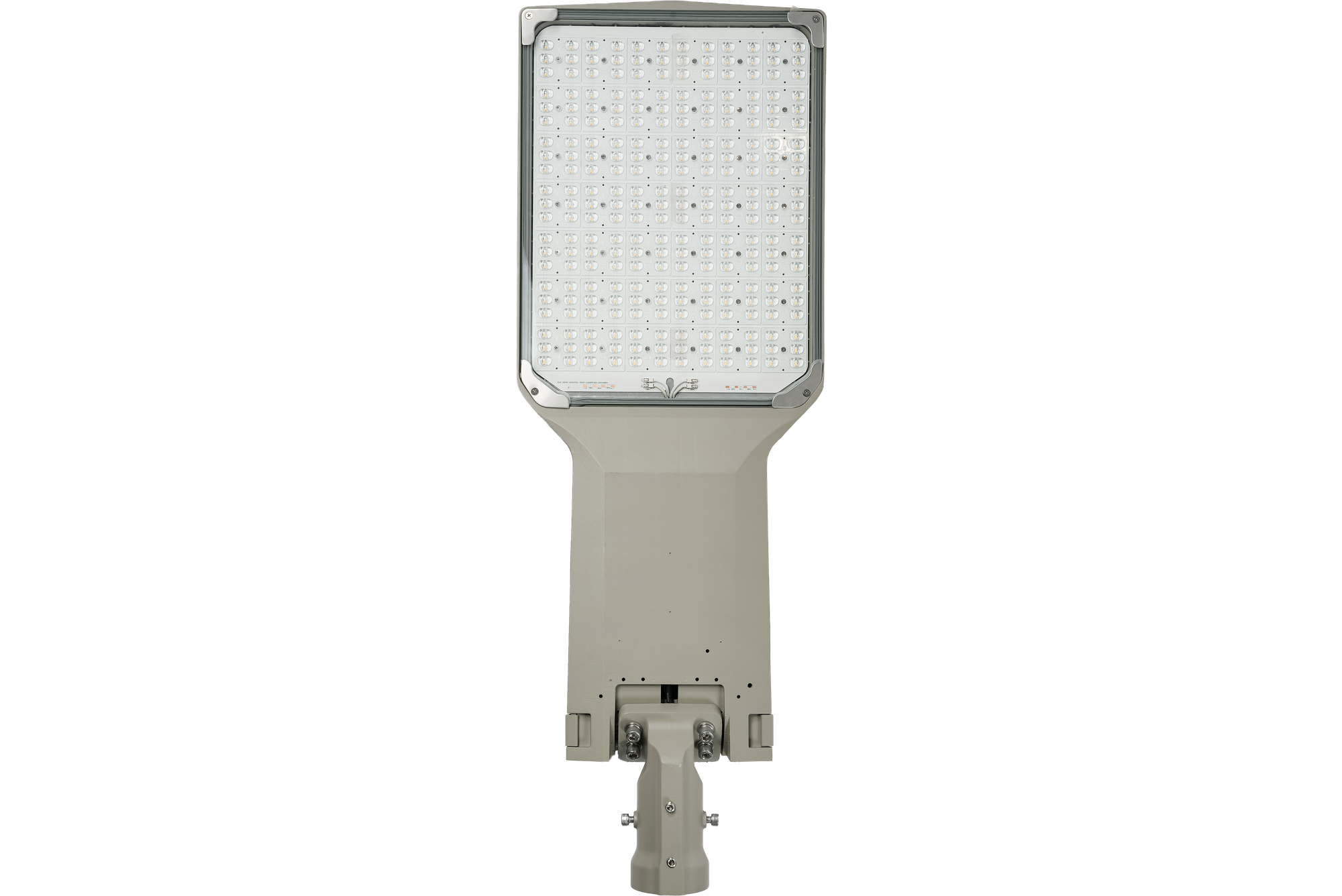

The PADDLE street light covers the widest wattage range in the NLC outdoor portfolio, from 40W to 300W across four sizes (Small to Extra Large). Available in Basic and Plus efficiency versions, it delivers up to 160 lm/W with 0–10V/DALI dimming for smart city applications.
| Input Voltage | 100–240VAC / 277VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 10KV standard · 20KV on request |
| Electrical Class | Class I |
| SDCM | <5 |
| Working Temperature | -20°C to +55°C |
| Operating Humidity | 10–90% RH |
| Dimensions | Small: L514×W210×H111 · Medium: L653×W235×H138 · Large: L845×W235×H138 · XL: L970×W340×H150 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Side Entry / Vertical Pole |
| Optics | UV-Resistant PC / PMMA |
| LED Type | SMD3030 / SMD5050 |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Dimming | 0–10V / 1–10V / DALI |
| Optional Accessories | ZHAGA Socket · Photocell · Smart Controller |
| Version | Wattage | Efficiency | System Lumen |
|---|---|---|---|
| Basic | 40W | 145 lm/W | 5,800 lm |
| 60W | 145 lm/W | 8,700 lm | |
| Plus | 40W | 160 lm/W | 6,400 lm |
| 60W | 160 lm/W | 9,600 lm |
| Version | Wattage | Efficiency | System Lumen |
|---|---|---|---|
| Basic | 75W | 145 lm/W | 10,875 lm |
| 100W | 145 lm/W | 14,500 lm | |
| Plus | 75W | 160 lm/W | 12,000 lm |
| 100W | 160 lm/W | 16,000 lm |
| Version | Wattage | Efficiency | System Lumen |
|---|---|---|---|
| Basic | 150W | 145 lm/W | 21,750 lm |
| 180W | 145 lm/W | 26,100 lm | |
| Plus | 150W | 160 lm/W | 24,000 lm |
| 180W | 160 lm/W | 28,800 lm |
| Version | Wattage | Efficiency | System Lumen |
|---|---|---|---|
| Basic | 200W | 145 lm/W | 29,000 lm |
| 240W | 145 lm/W | 34,800 lm | |
| 300W | 145 lm/W | 43,500 lm | |
| Plus | 200W | 160 lm/W | 32,000 lm |
| 240W | 160 lm/W | 38,400 lm | |
| 300W | 160 lm/W | 48,000 lm |
* Values based on CCT 4000K | ±10% tolerance · Standard CRI >70 · Optional CRI >80
