Power in Every Beam

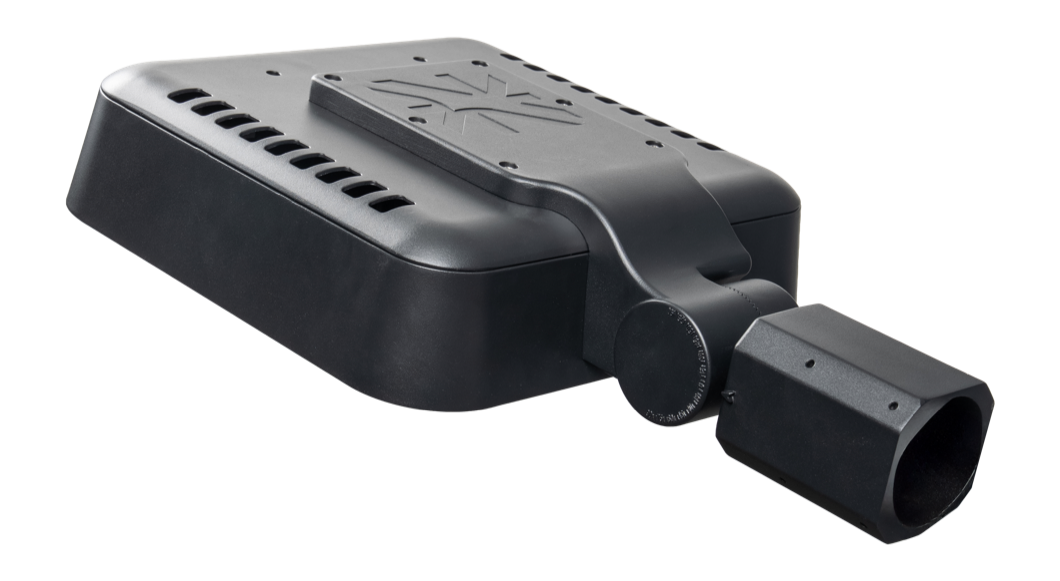

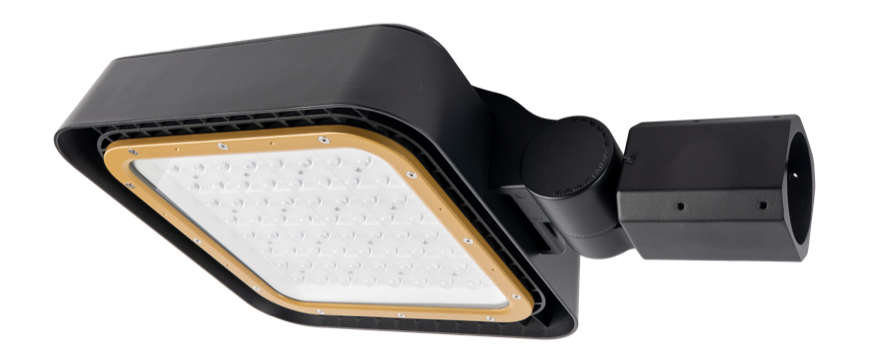

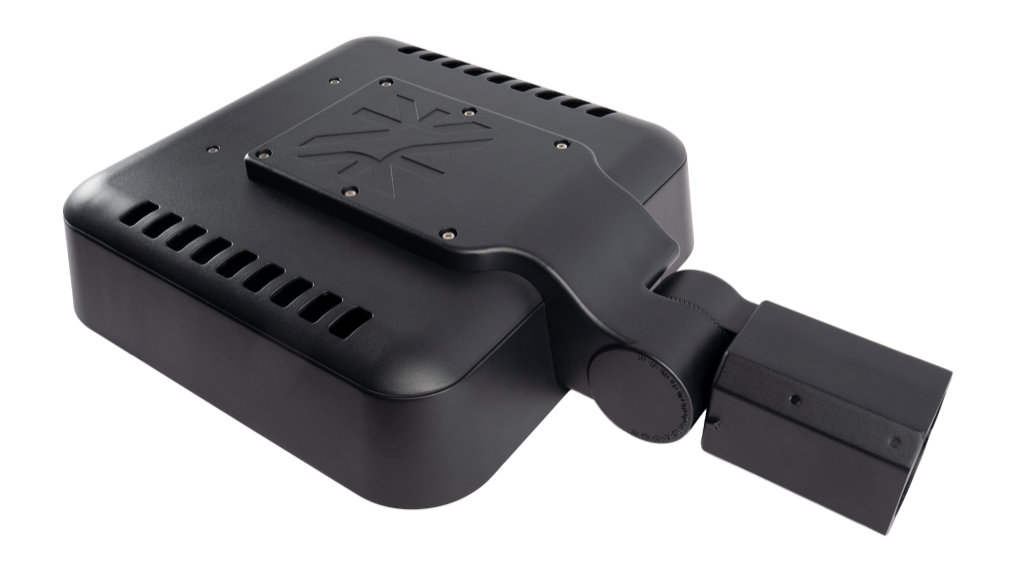

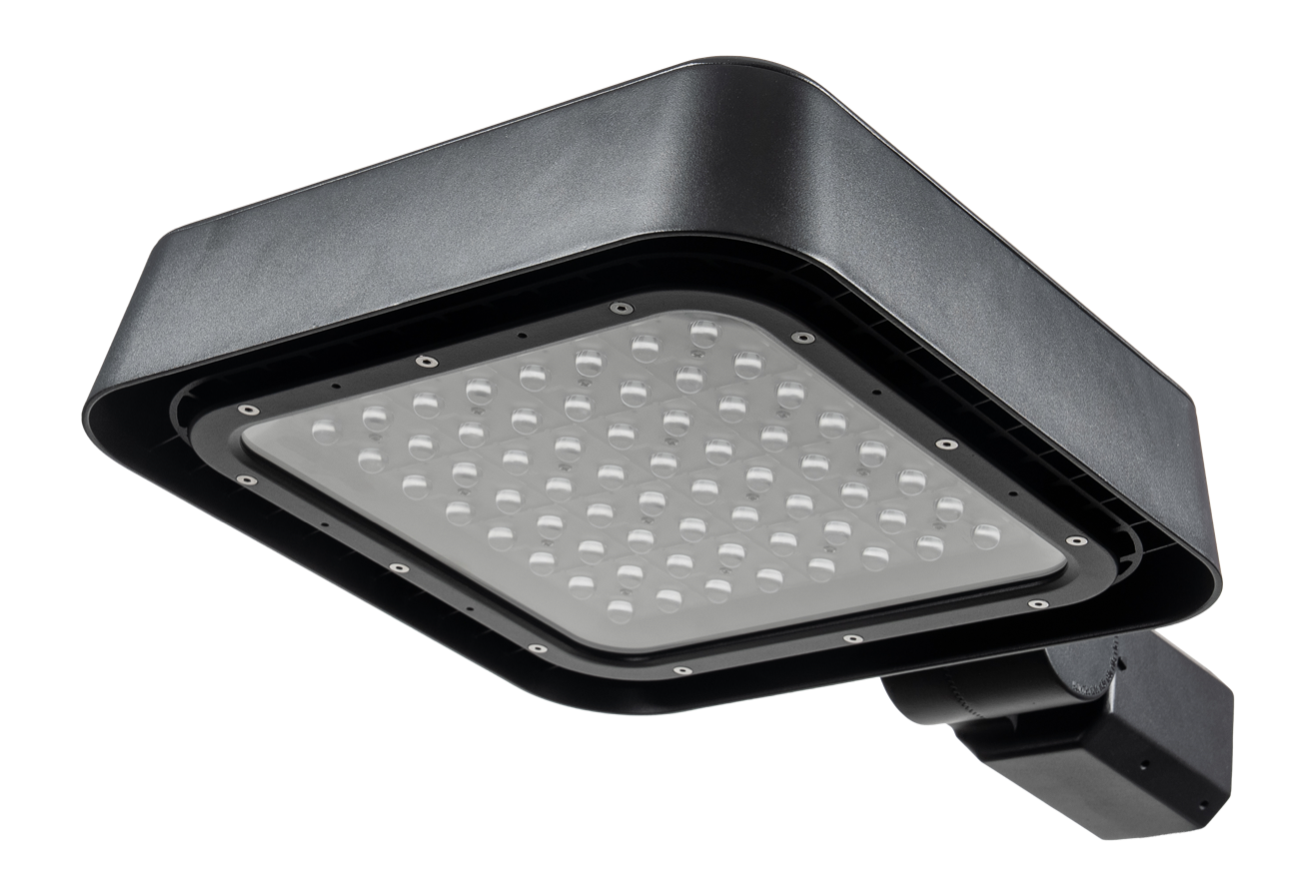

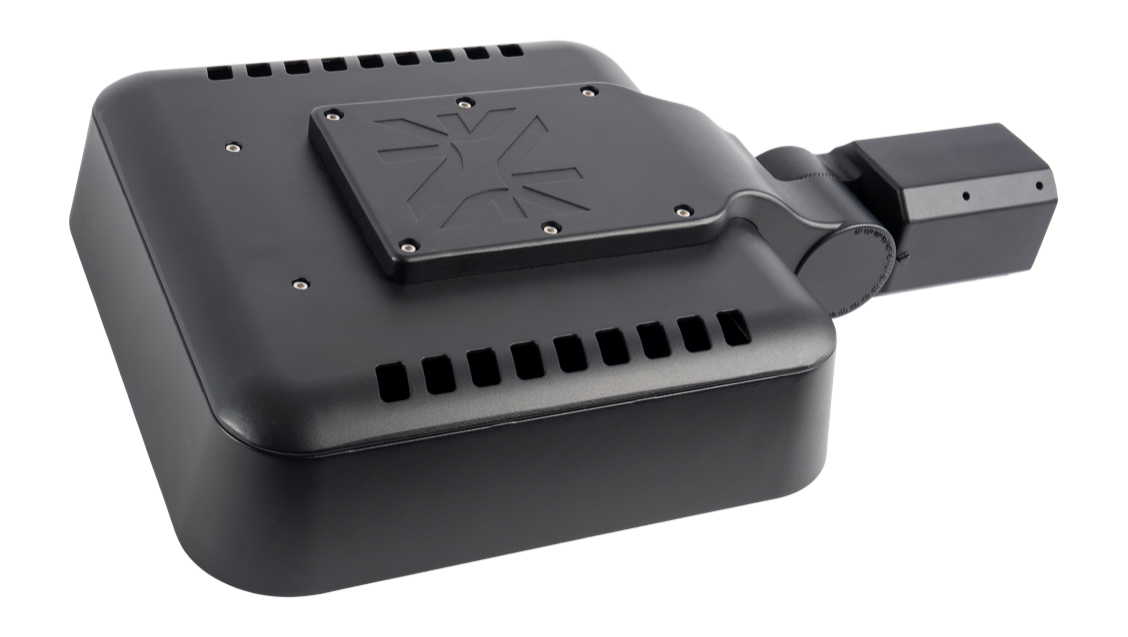

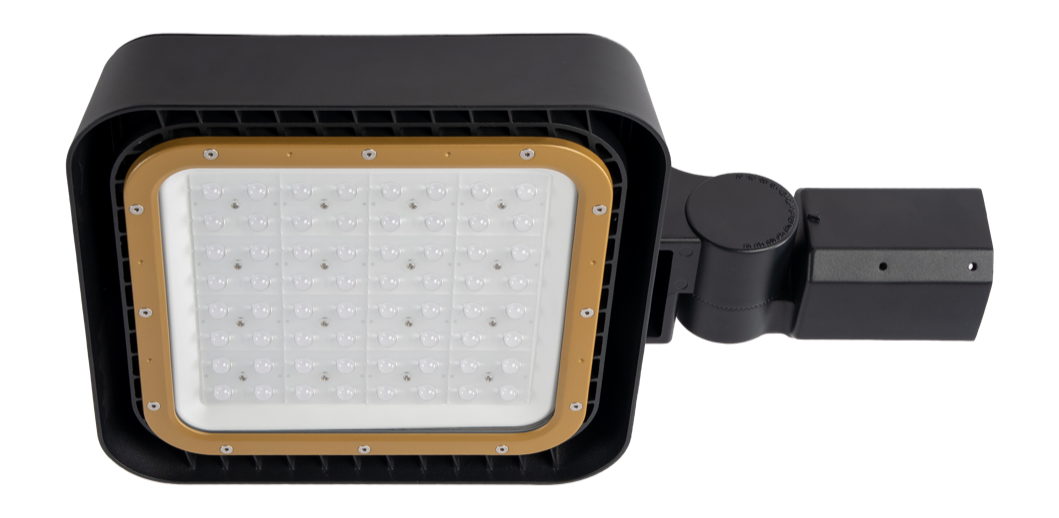

The MASTERY POLE street light offers three performance tiers, Basic, Plus, and Beyond, across Small, Medium, and Large sizes (20-240W). The Beyond tier reaches up to 191 lm/W, with all versions featuring adjustable fitter mounting, optional ZHAGA socket, photocell, and smart controller integration.
| Input Voltage | 100-240VAC / 277VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 10KV standard · 20KV on request |
| Electrical Class | Class I |
| SDCM | <5 |
| Working Temperature | -40°C to +55°C |
| Operating Humidity | 10-90% RH |
| Dimensions | Small: L610×W190×H143 · Medium: L660×W240×H143 · Large: L762×W290×H143 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Side Entry / Vertical Pole |
| Optics | UV-Resistant PC / PMMA |
| LED Type | SMD3030 / SMD5050 |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Dimming | 0-10V / 1-10V / DALI |
| Optional Accessories | ZHAGA Socket · Photocell · Smart Controller |
| Version | Wattage | Efficiency | System Lumen |
|---|---|---|---|
| Basic | 20W | 155-165 lm/W | 3,100-3,300 lm |
| 40W | 150-160 lm/W | 6,000-6,400 lm | |
| 60W | 150 lm/W | 9,000 lm | |
| 80W | 140 lm/W | 11,200 lm | |
| Plus | 20W | 160-170 lm/W | 3,200-3,400 lm |
| 40W | 160-165 lm/W | 6,400-6,600 lm | |
| 60W | 160 lm/W | 9,600 lm | |
| 80W | 155 lm/W | 12,400 lm | |
| Beyond | 20W | 171-182 lm/W | 3,420-3,640 lm |
| 40W | 176-184 lm/W | 7,040-7,360 lm | |
| 60W | 176 lm/W | 10,560 lm | |
| 80W | 170 lm/W | 13,600 lm |
| Version | Wattage | Efficiency | System Lumen |
|---|---|---|---|
| Basic | 80W | 150-160 lm/W | 12,000-12,800 lm |
| 100W | 155 lm/W | 15,500 lm | |
| 120W | 155 lm/W | 18,600 lm | |
| 150W | 145 lm/W | 21,750 lm | |
| Plus | 80W | 160-170 lm/W | 12,800-13,600 lm |
| 100W | 165 lm/W | 16,500 lm | |
| 120W | 160 lm/W | 19,200 lm | |
| 150W | 155 lm/W | 23,250 lm | |
| Beyond | 80W | 180-186 lm/W | 14,400-14,880 lm |
| 100W | 181 lm/W | 18,100 lm | |
| 120W | 180 lm/W | 21,600 lm | |
| 150W | 174 lm/W | 26,100 lm |
| Version | Wattage | Efficiency | System Lumen |
|---|---|---|---|
| Basic | 150W | 150-160 lm/W | 22,500-24,000 lm |
| 180W | 150 lm/W | 27,000 lm | |
| 200W | 150 lm/W | 30,000 lm | |
| 240W | 150 lm/W | 36,000 lm | |
| Plus | 150W | 155-165 lm/W | 23,250-24,750 lm |
| 180W | 160 lm/W | 28,800 lm | |
| 200W | 160 lm/W | 32,000 lm | |
| 240W | 160 lm/W | 38,400 lm | |
| Beyond | 150W | 183-191 lm/W | 27,450-28,650 lm |
| 180W | 182 lm/W | 32,760 lm | |
| 200W | 179 lm/W | 35,800 lm | |
| 240W | 176 lm/W | 42,240 lm |
* Values based on CCT 4000K | ±5% tolerance · Standard CRI >70 · Optional CRI >80
