Brighter Streets, Smarter Savings

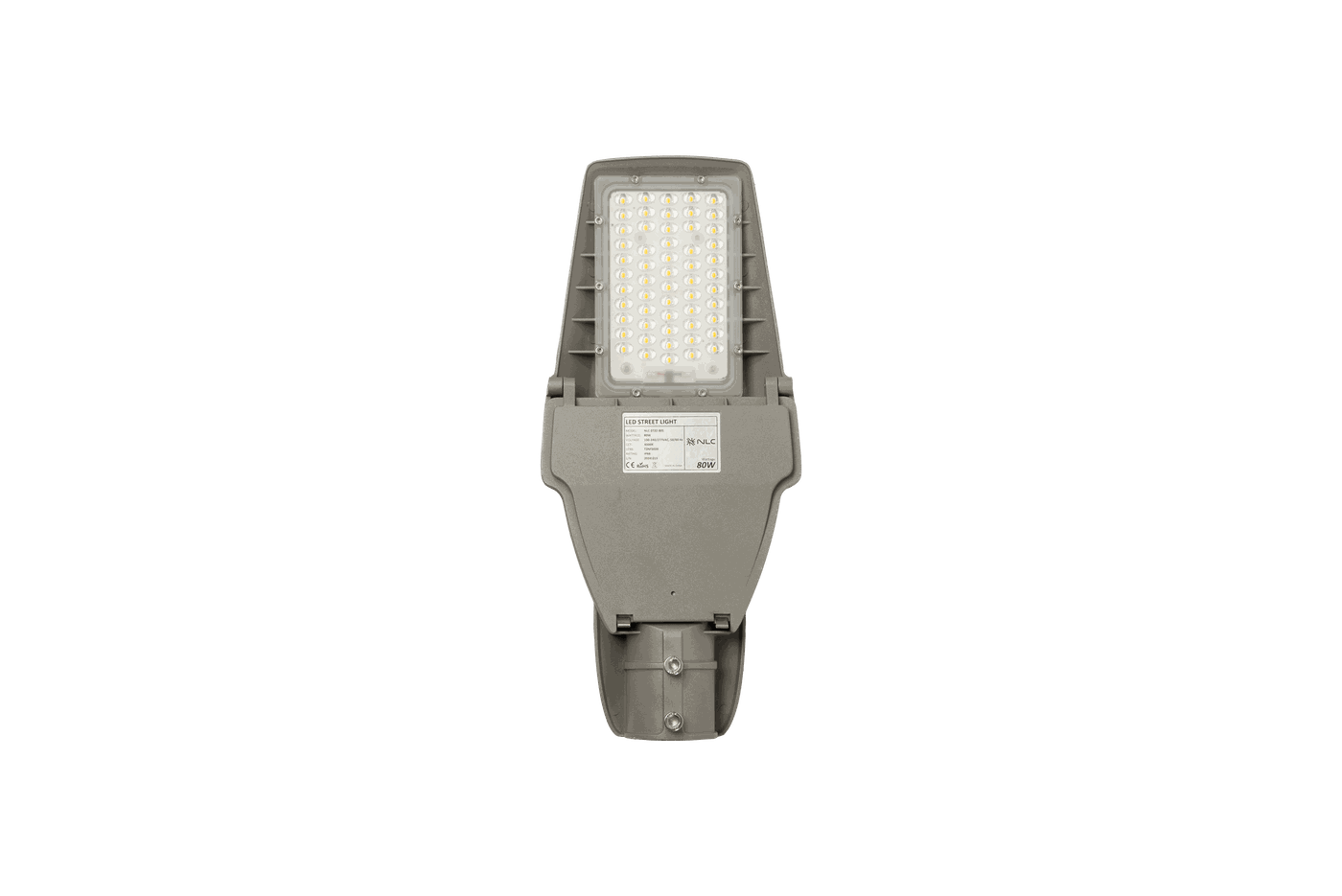

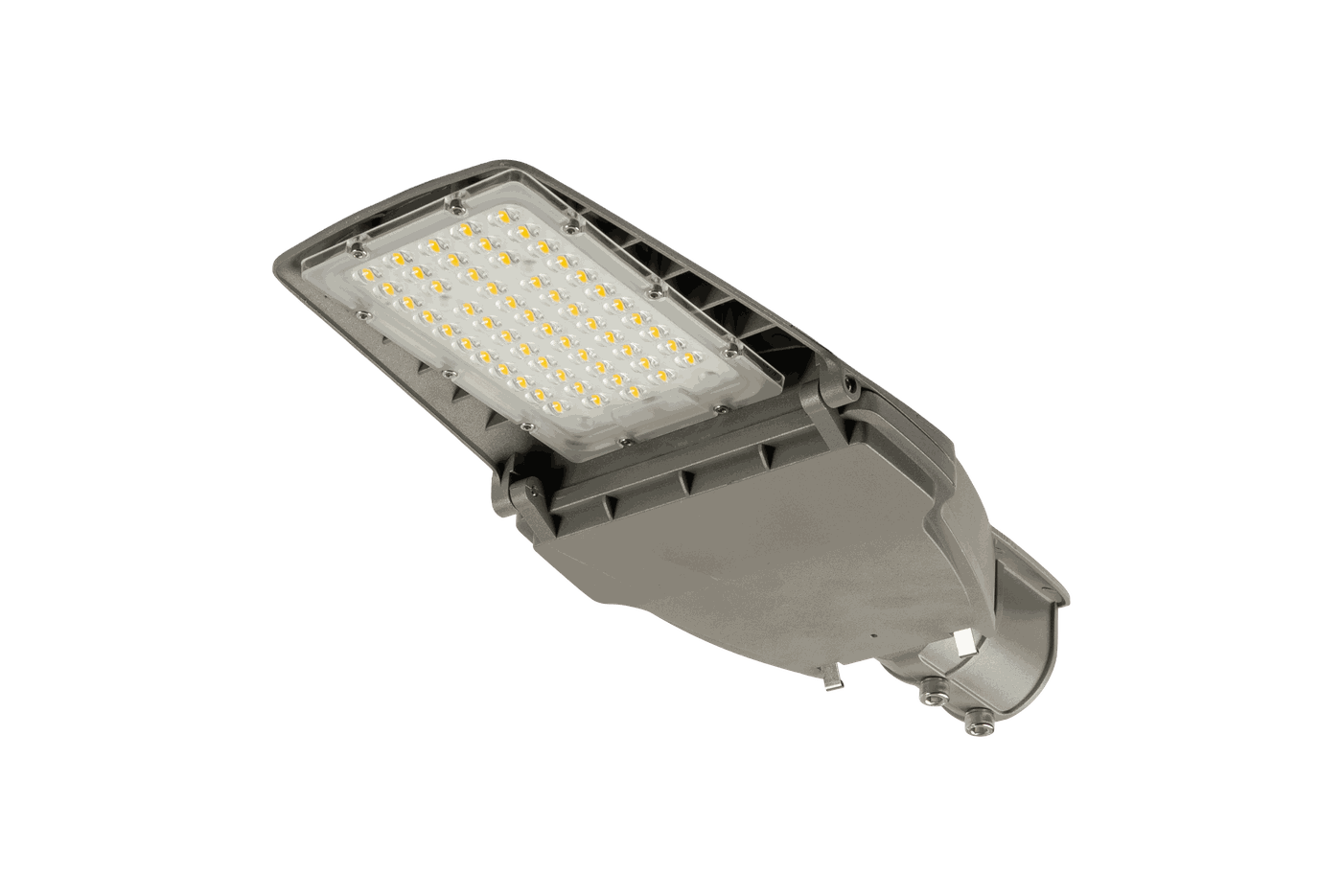

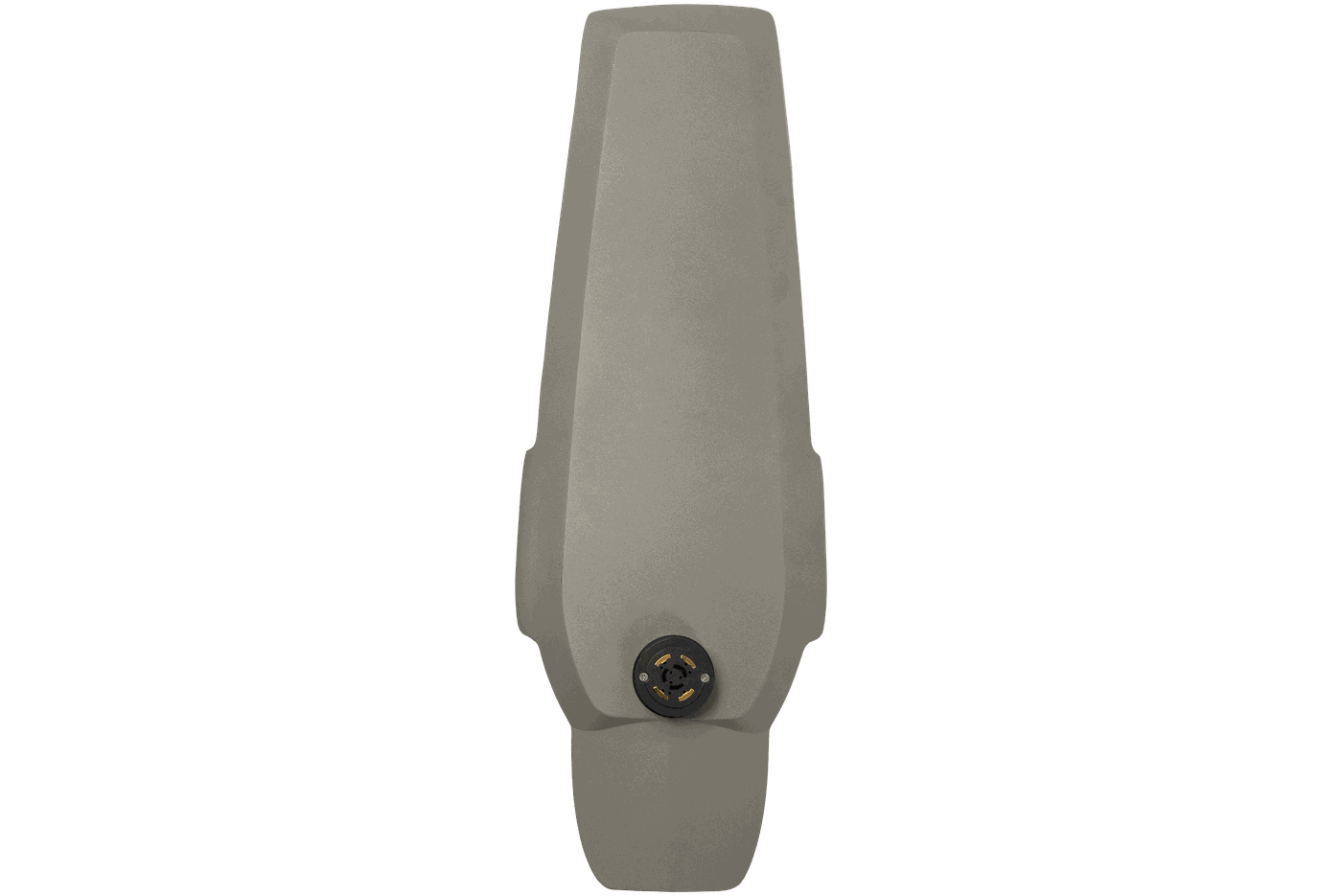

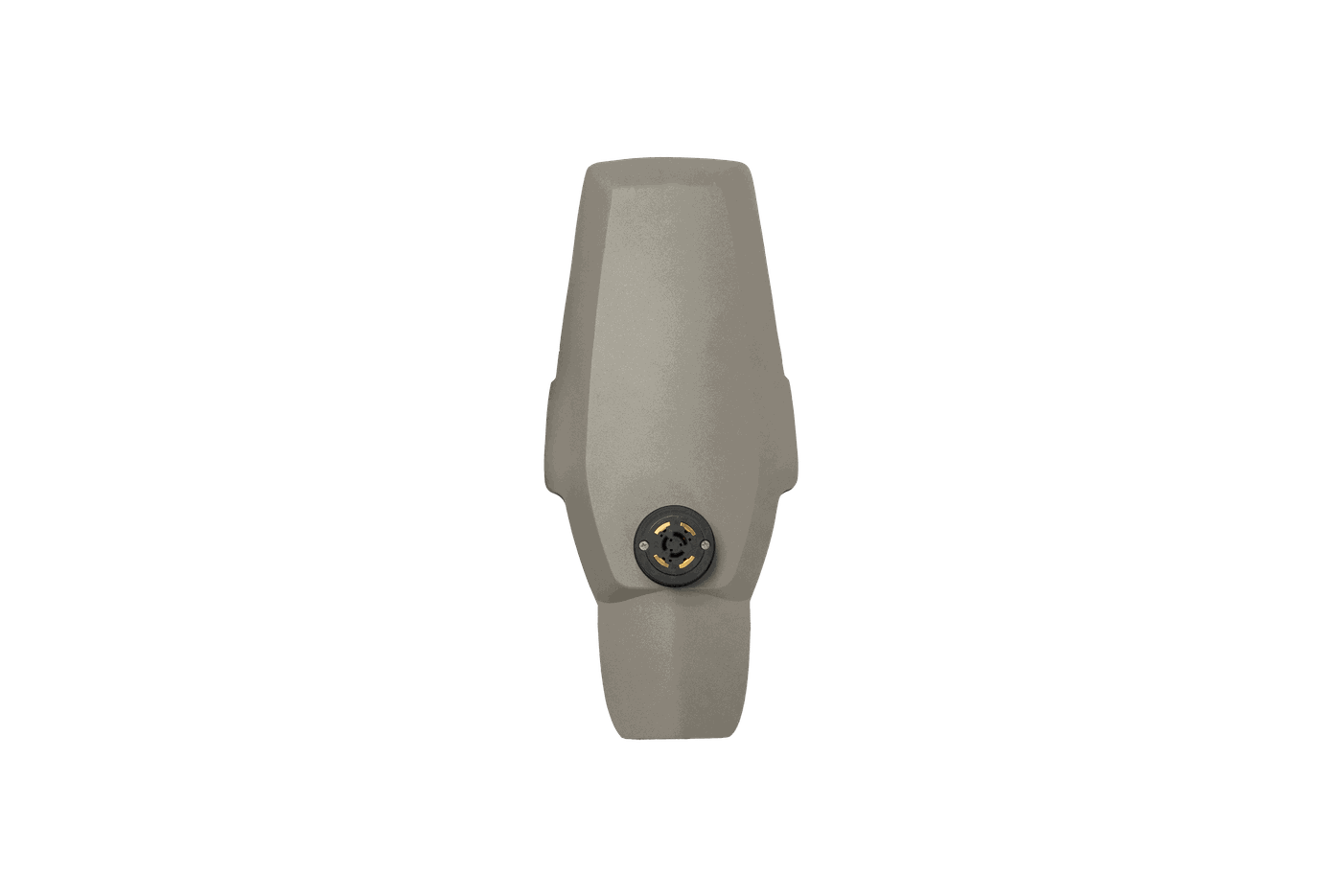

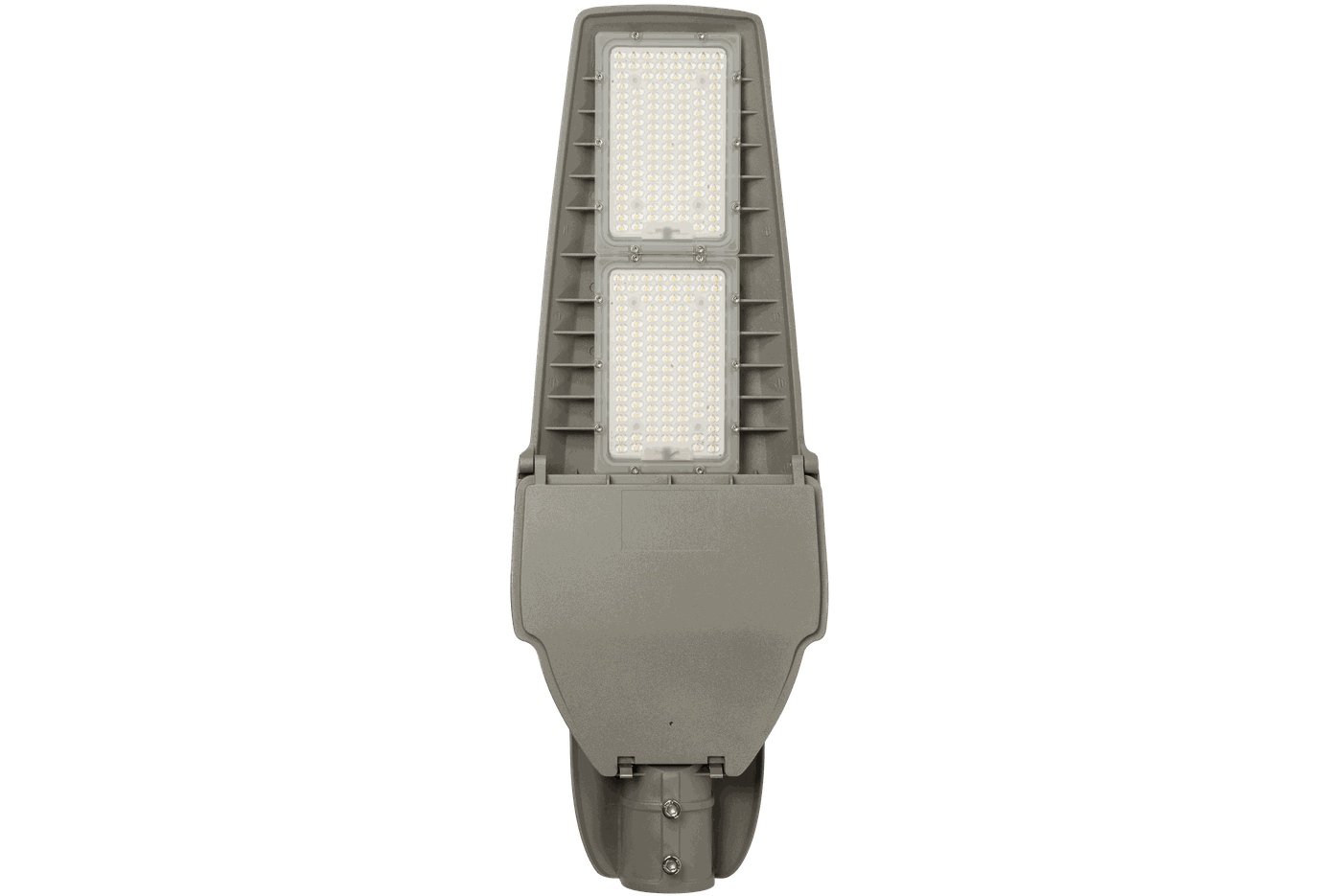

The FALCON street light achieves up to 199 lm/W with its premium Beyond tier, making it one of the most efficient street lights in the NLC portfolio. Three performance versions (Basic/Plus/Beyond) across two sizes cover 20-160W with advanced heat pipe thermal management for consistent output in high ambient temperatures.
| Input Voltage | 100-240VAC / 277VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 10KV standard · 20KV on request |
| Electrical Class | Class I |
| SDCM | <5 |
| Working Temperature | -40°C to +55°C |
| Operating Humidity | 10-90% RH |
| Dimensions | Small: L487×W213×H85 (D63) · Medium: L740×W265×H88 (D63) mm |
| Housing | Die-Cast Aluminum |
| Mounting | Side Entry / Vertical Pole |
| Optics | UV-Resistant PC / PMMA |
| LED Type | SMD3030 / SMD5050 |
| Lifetime | L70B50 > 100,000h | L80B20 > 50,000h |
| Dimming | 0-10V / 1-10V / DALI |
| Optional Accessories | ZHAGA Socket · Photocell · Smart Controller |
| Version | Wattage | Efficiency | System Lumen |
|---|---|---|---|
| Basic | 20W | 155-175 lm/W | 3,100-3,500 lm |
| 30W | 155-175 lm/W | 4,650-5,250 lm | |
| 40W | 155-170 lm/W | 6,200-6,800 lm | |
| 50W | 155-165 lm/W | 7,750-8,250 lm | |
| 60W | 155 lm/W | 9,300 lm | |
| 80W | 155 lm/W | 12,400 lm | |
| Plus | 20W | 165-180 lm/W | 3,300-3,600 lm |
| 30W | 170-175 lm/W | 5,100-5,250 lm | |
| 40W | 165-175 lm/W | 6,600-7,000 lm | |
| 50W | 165-175 lm/W | 8,250-8,750 lm | |
| 60W | 165 lm/W | 9,900 lm | |
| 80W | 165 lm/W | 13,200 lm | |
| Beyond | 20W | 177-189 lm/W | 3,540-3,780 lm |
| 30W | 185-194 lm/W | 5,550-5,820 lm | |
| 40W | 190-195 lm/W | 7,600-7,800 lm | |
| 50W | 189-194 lm/W | 9,450-9,700 lm | |
| 60W | 190 lm/W | 11,400 lm | |
| 80W | 186 lm/W | 14,880 lm |
| Version | Wattage | Efficiency | System Lumen |
|---|---|---|---|
| Basic | 90W | 160-175 lm/W | 14,400-15,750 lm |
| 100W | 160-175 lm/W | 16,000-17,500 lm | |
| 120W | 160 lm/W | 19,200 lm | |
| 150W | 160 lm/W | 24,000 lm | |
| 160W | 160 lm/W | 25,600 lm | |
| Plus | 90W | 175-180 lm/W | 15,750-16,200 lm |
| 100W | 175-180 lm/W | 17,500-18,000 lm | |
| 120W | 175 lm/W | 21,000 lm | |
| 150W | 175 lm/W | 26,250 lm | |
| 160W | 170 lm/W | 27,200 lm | |
| Beyond | 90W | 192-199 lm/W | 17,280-17,910 lm |
| 100W | 195-199 lm/W | 19,500-19,900 lm | |
| 120W | 195 lm/W | 23,400 lm | |
| 150W | 192 lm/W | 28,800 lm | |
| 160W | 192 lm/W | 30,720 lm |
* Values based on CCT 3000K | ±5% tolerance · Standard CRI >70 · Optional CRI >80
