Uniform Light, Lasting Performance

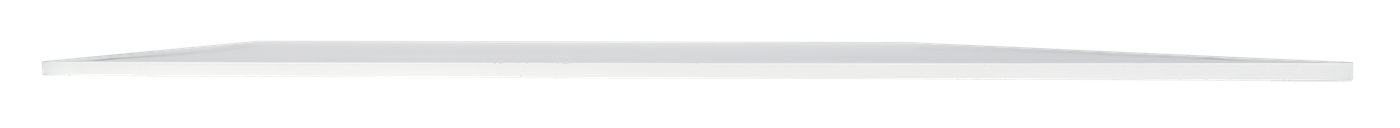

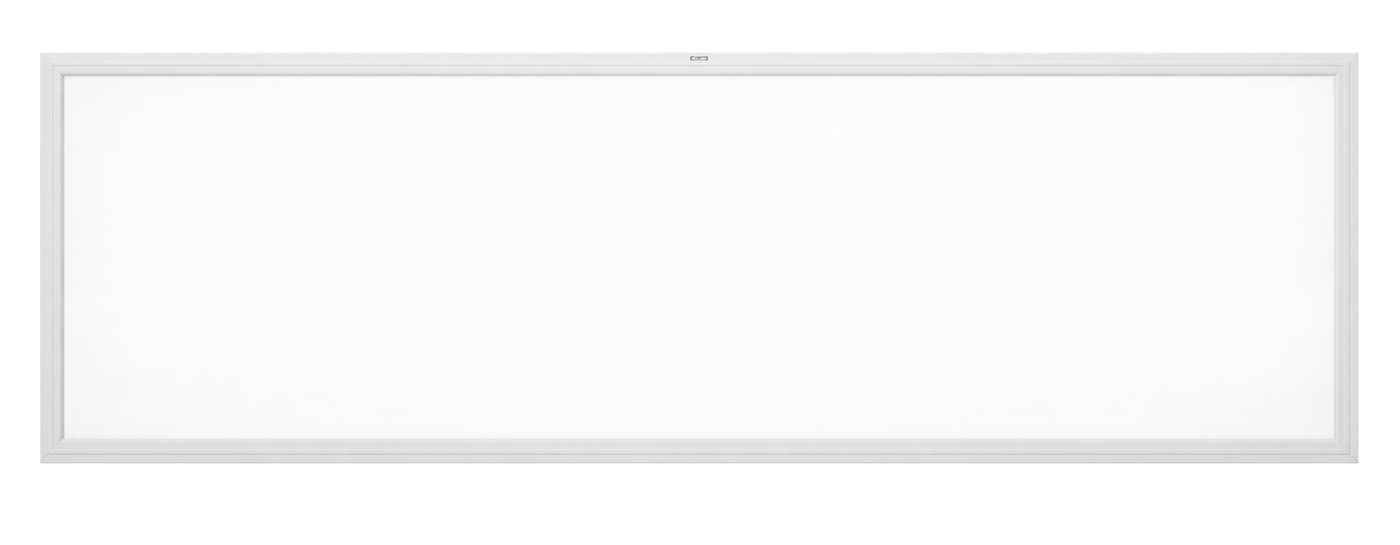

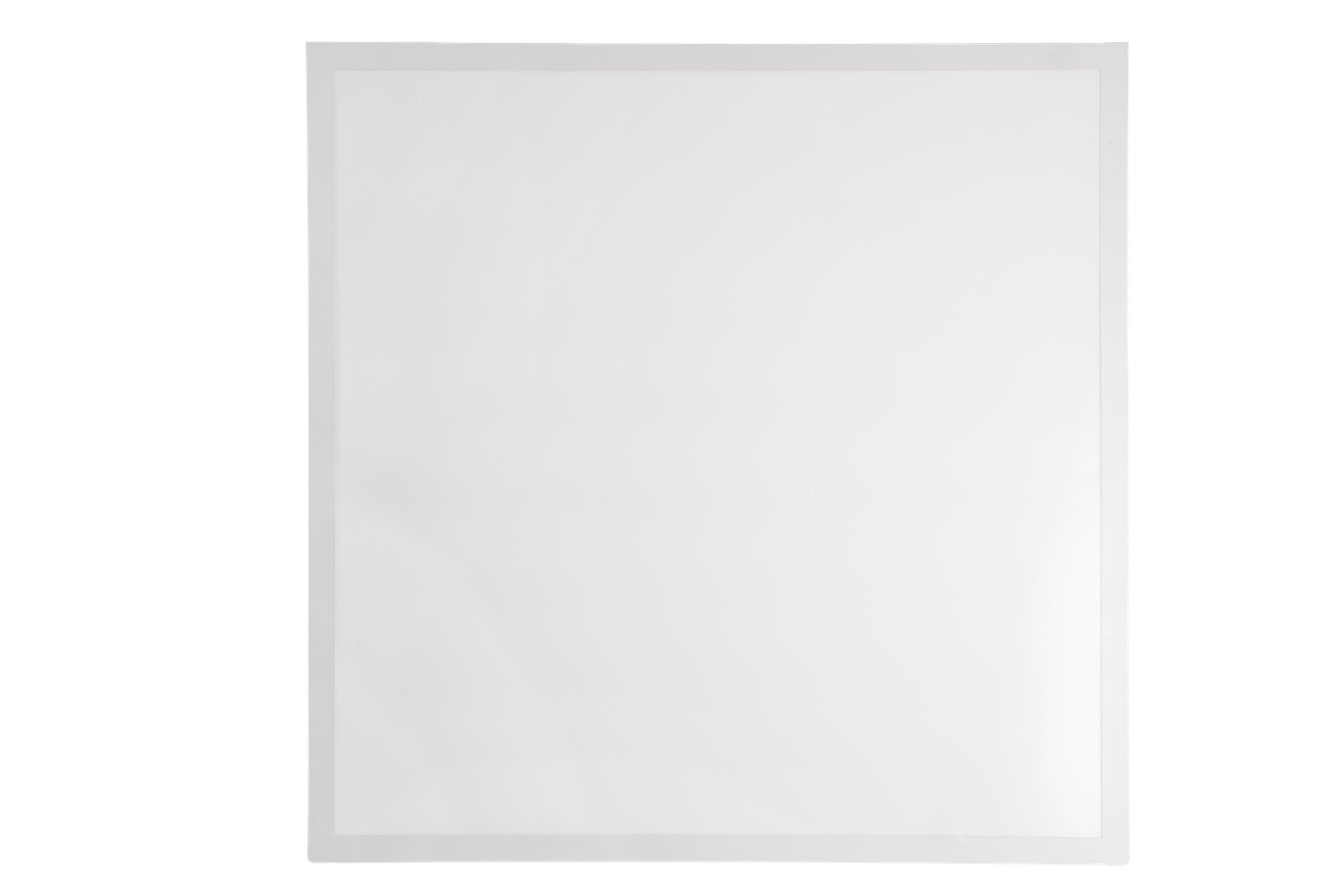

The SPECTRA SLIM is an ultra-flat 9 mm LED panel combining the efficiency of the SPECTRA range with the minimal profile of the PL-01. Identical footprint options (60×60, 30×120, 60×120 cm) ensure compatibility with all standard ceiling grids, while opal diffusion delivers smooth, glare-controlled light.
The SPECTRA SLIM is part of National Lighting Company's LED Panel range. LED panels deliver uniform, low-glare ambient light for offices, healthcare, and commercial interiors. Like the rest of the NLC portfolio, it is engineered and assembled in Saudi Arabia for the demands of the local environment, high ambient temperatures, dust, and a need for long, low-maintenance service life.
National Lighting Company (NLC) has manufactured lighting in the Kingdom since 1993 and is an authorized assembler for Schneider Electric. The NLC range spans street and area lighting, flood and architectural lighting, solar luminaires, and low- and medium-voltage panels, all backed by local production in Dammam, technical support, and after-sales service across Saudi Arabia.
Detailed specifications for the SPECTRA SLIM, including wattage, lumen output, color temperature (CCT), beam angle, and ingress protection (IP) rating, are configured to each project and available on request. Contact our team for the current datasheet, pricing, and availability.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Ingress Protection | IP20 |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 20–85% RH |
| Dimensions | 60×60: L595×W595×H9 · 30×120: L1195×W295×H9 · 60×120: L1195×W595×H9 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Recessed Mounted |
| Optics | Opal |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Colors | White |
| LED Type | SMD2835 |
| Lifetime | L70B50 > 50,000h | L80B20 > 30,000h |
| Dimming | Optional |
| Switching Cycles | >25,000 times |
| Emergency Backup | Optional |
| Flicker Free | - |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-SSS (60×60) | 40W | 120 lm/W | 4,800 lm | 110° | >80 std · >90 opt |
| NLC-SSL (30×120) | 40W | 120 lm/W | 4,800 lm | 110° | >80 std · >90 opt |
| NLC-SSL (60×120) | 60W | 120 lm/W | 7,200 lm | 110° | >80 std · >90 opt |
* Values based on CCT 4000K | ±10% tolerance
