Steady Light, Strong Performance

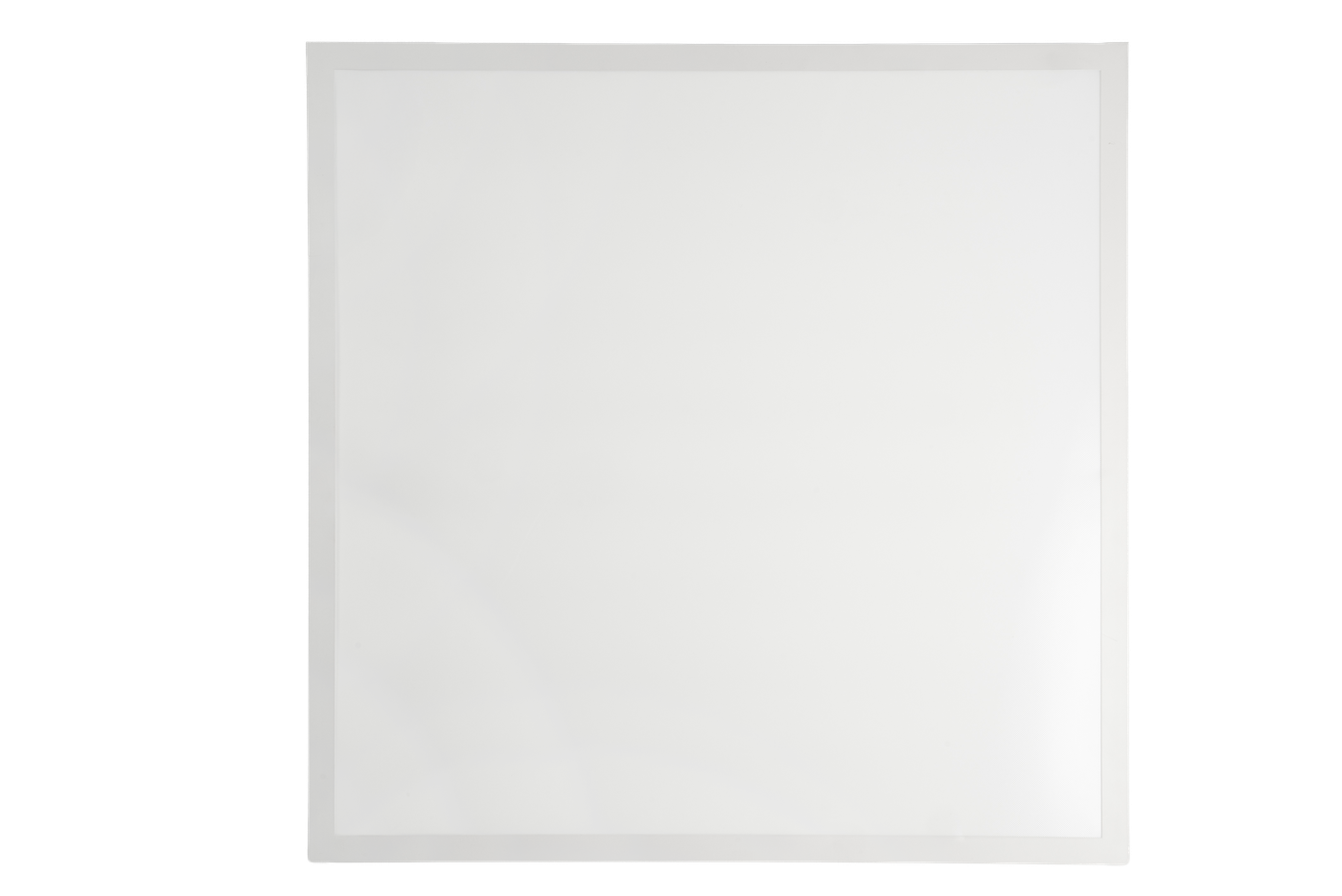

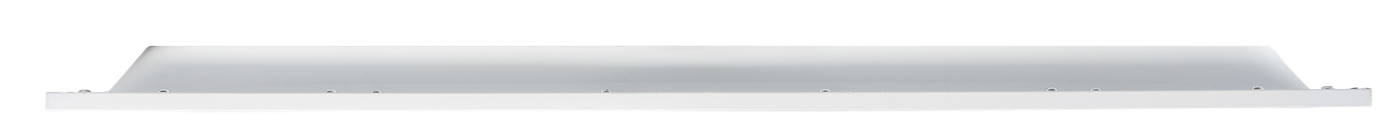

The SPECTRA LED panel achieves 146 lm/W, the highest efficiency in the NLC panel range, with a choice of opal or prismatic diffuser. The prismatic optic reduces UGR to below 19, making SPECTRA ideal for open-plan offices, classrooms, and retail environments where glare control is important.
| Input Voltage | 220–240VAC · 50/60Hz |
| Power Factor | >0.95 |
| THD | <15 |
| Surge Protection | 1KV (L-N) · 2KV (L/N-PE) |
| Electrical Class | Class II |
| Ingress Protection | IP20 |
| Working Temperature | -20°C to +45°C |
| Operating Humidity | 20–85% RH |
| Dimensions | 60×60: L595×W595×H30 · 30×120: L1195×W295×H30 · 60×120: L1195×W595×H30 mm |
| Housing | Die-Cast Aluminum |
| Mounting | Recessed Mounted |
| Optics | Opal / Prismatic |
| Body Finish | Electrostatic Polyester Powder-Coated |
| Body Colors | White |
| LED Type | SMD2835 |
| Lifetime | L70B50 > 50,000h | L80B20 > 30,000h |
| Dimming | Optional |
| Switching Cycles | >25,000 times |
| Emergency Backup | Optional |
| Flicker Free | - |
| Model | Power | Efficiency | System Lumen | Beam Angle | CRI |
|---|---|---|---|---|---|
| NLC-SCS (60×60) | 40W | 146 lm/W | 5,840 lm | 110° | >80 std · >90 opt |
| NLC-SCL (30×120) | 40W | 146 lm/W | 5,840 lm | 110° | >80 std · >90 opt |
| NLC-SCL (60×120) | 60W | 146 lm/W | 8,760 lm | 110° | >80 std · >90 opt |
* Values based on CCT 4000K | ±10% tolerance
